SN74HC365PWT

SN74HC365PWT Overview

Product belongs to the 74HC series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.002183 oz SMD/SMT Mounting-Style TSSOP-16 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Number of channels: 5 Voltage Supply Range: 2 V ~ 6 V Supplier device package: 16-TSSOP 1 element Buffer/Line Driver, Non-Inverting logic type 6 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting 80 uA is 92 nA. Maximum supply voltage of 6 V Minimum supply voltage is 2 V HC logic type 120 ns at 2 V 24 ns at 4.5 V 20 ns at 6 V is 23 microseconds. High-Level-Output-Current of - 7.8 mA 7.8 mA low-level output current Number-of-Input-Lines: 6 Input Number-of-Output-Lines: 6 Output

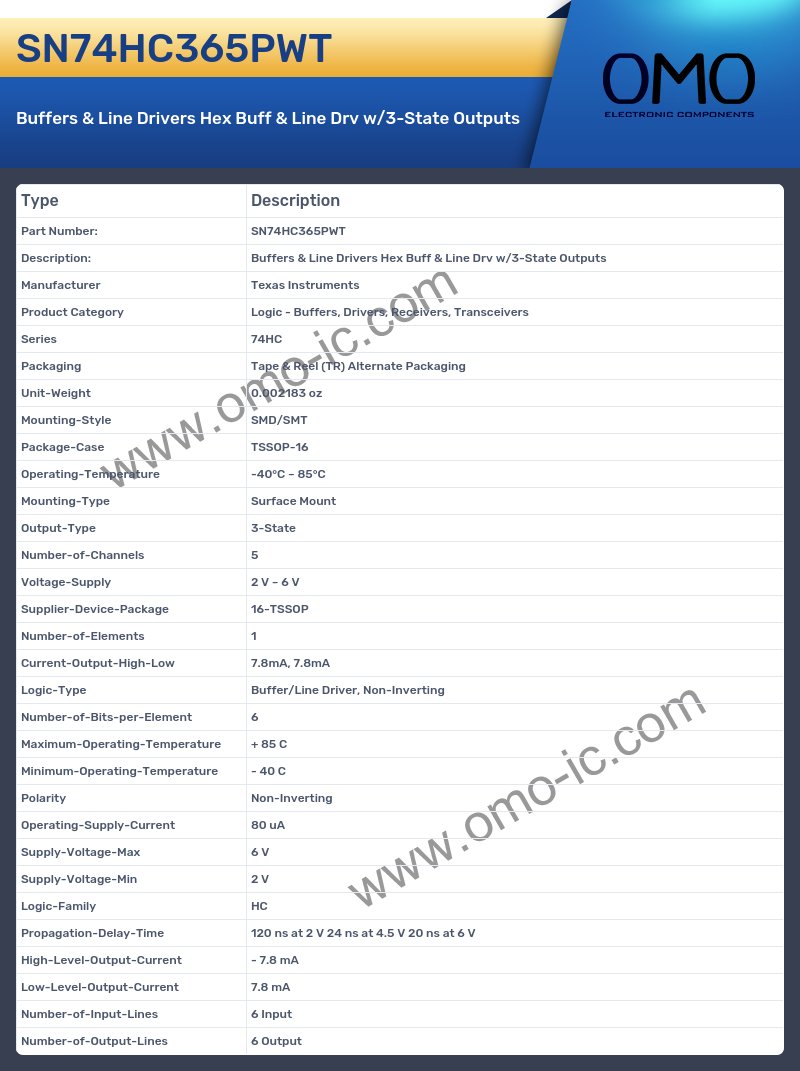

SN74HC365PWT Image

SN74HC365PWT Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74HC
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.002183 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-16
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Number-of-Channels 5
• Voltage-Supply 2 V ~ 6 V
• Supplier-Device-Package 16-TSSOP
• Number-of-Elements 1
• Current-Output-High-Low 7.8mA, 7.8mA
• Logic-Type Buffer/Line Driver, Non-Inverting
• Number-of-Bits-per-Element 6
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Non-Inverting
• Operating-Supply-Current 80 uA
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 2 V
• Logic-Family HC
• Propagation-Delay-Time 120 ns at 2 V 24 ns at 4.5 V 20 ns at 6 V
• High-Level-Output-Current - 7.8 mA
• Low-Level-Output-Current 7.8 mA
• Number-of-Input-Lines 6 Input
• Number-of-Output-Lines 6 Output
