SN74HC164DE4

SN74HC164DE4 Overview

Product belongs to the 74HC series. Tube Alternate Packaging is the packaging method for this product Weight of 0.004233 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Push-Pull Product function is Serial to Parallel. Voltage Supply Range: 2 V ~ 6 V Supplier device package: 14-SOIC 1 is 8. 8 bit bits 1 element Shift Register logic type 8 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. Maximum supply voltage of 6 V Minimum supply voltage is 2 V HC logic type Serial to Parallel counting sequence 175 ns 35 ns 30 ns is 23 microseconds. Number-of-Input-Lines: 2 Number-of-Output-Lines: 8 Positive Edge triggering type This product features an Asynchronous reset type, ensuring reliable and predictable performance.

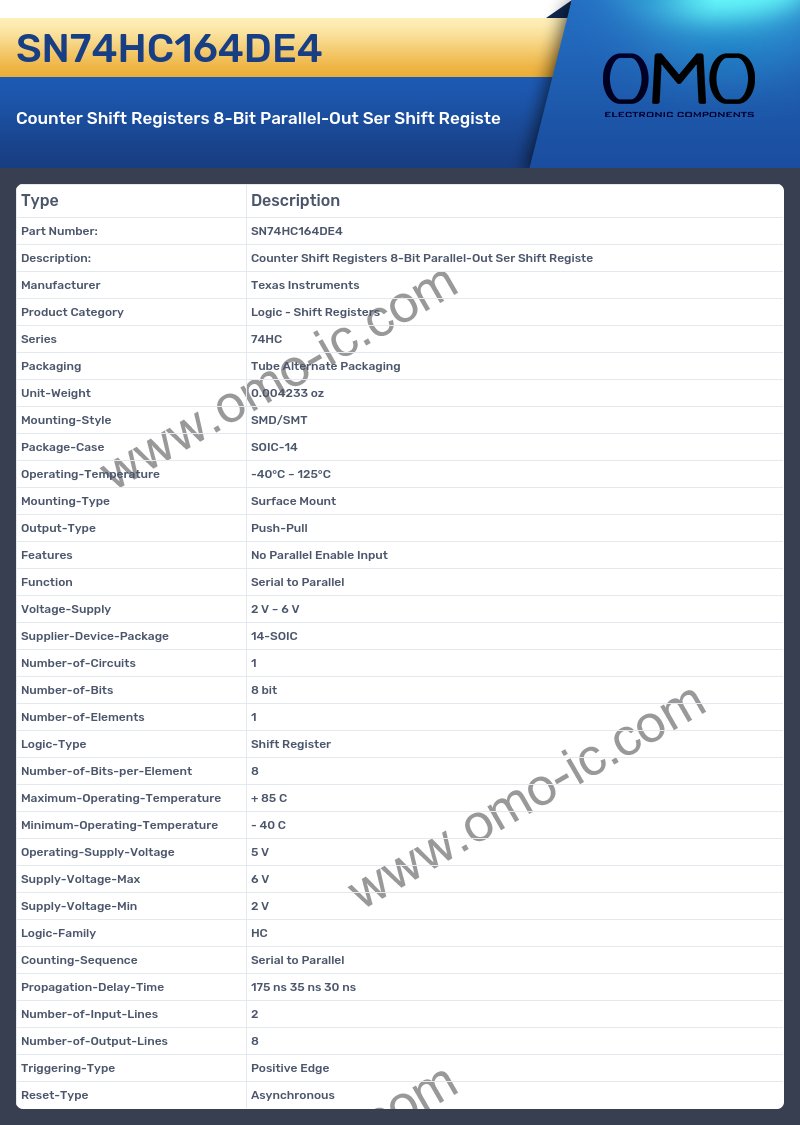

SN74HC164DE4 Image

SN74HC164DE4 Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Shift Registers
• Series 74HC
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004233 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Features No Parallel Enable Input
• Function Serial to Parallel
• Voltage-Supply 2 V ~ 6 V
• Supplier-Device-Package 14-SOIC
• Number-of-Circuits 1
• Number-of-Bits 8 bit
• Number-of-Elements 1
• Logic-Type Shift Register
• Number-of-Bits-per-Element 8
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 2 V
• Logic-Family HC
• Counting-Sequence Serial to Parallel
• Propagation-Delay-Time 175 ns 35 ns 30 ns
• Number-of-Input-Lines 2
• Number-of-Output-Lines 8
• Triggering-Type Positive Edge
• Reset-Type Asynchronous
