| Mfr. #: | SN74HC125DBR |
|---|---|
| Fabricante: | Texas Instruments |
| Descripción: | Buffers & Line Drivers Quad Tri-State Bus |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | SN74HC125DBR Ficha de datos |
Product belongs to the 74HC series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004296 oz SMD/SMT Mounting-Style SSOP-14 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Number of channels: 4 Voltage Supply Range: 2 V ~ 6 V Supplier device package: 14-SSOP 4 element Buffer/Line Driver, Non-Inverting logic type 1 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting 160 uA is 92 nA. Maximum supply voltage of 6 V Minimum supply voltage is 2 V HC logic type 150 ns at 2 V 30 ns at 4.5 V 25 ns at 6 V is 23 microseconds. High-Level-Output-Current of - 7.8 mA 7.8 mA low-level output current Number-of-Input-Lines: 4 Input Number-of-Output-Lines: 4 Output
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

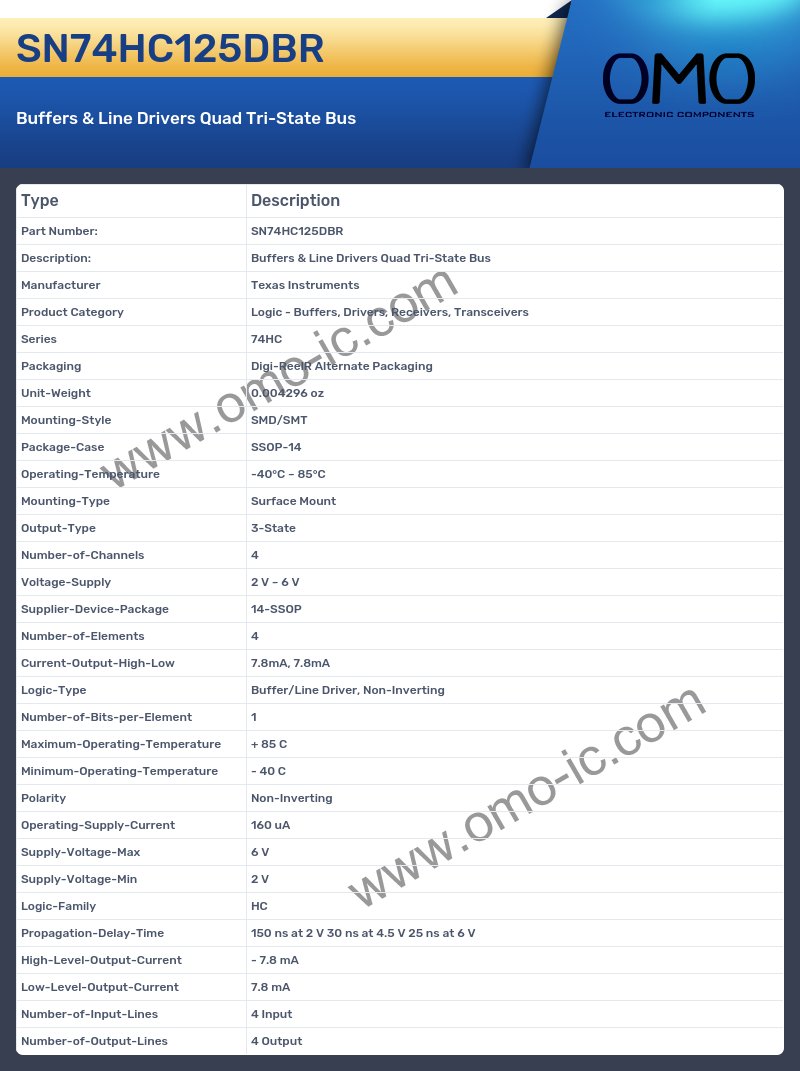

SN74HC125DBR Specifications
A: At what frequency does the Series?
Q: The product Series is 74HC.
A: What is the Packaging of the product?
Q: The Packaging of the product is Digi-ReelR Alternate Packaging.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.004296 oz.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: At what frequency does the Package-Case?
Q: The product Package-Case is SSOP-14.
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed -40°C ~ 85°C
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: What is the Output-Type of the product?
Q: The Output-Type of the product is 3-State.
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 4.
A: At what frequency does the Voltage-Supply?
Q: The product Voltage-Supply is 2 V ~ 6 V.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is 14-SSOP.
A: What is the Number-of-Elements of the product?
Q: The Number-of-Elements of the product is 4.
A: Is the cutoff frequency of the product Logic-Type?
Q: Yes, the product's Logic-Type is indeed Buffer/Line Driver, Non-Inverting
A: What is the Number-of-Bits-per-Element of the product?
Q: The Number-of-Bits-per-Element of the product is 1.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 85 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 40 C.
A: At what frequency does the Polarity?
Q: The product Polarity is Non-Inverting.
A: Is the cutoff frequency of the product Operating-Supply-Current?
Q: Yes, the product's Operating-Supply-Current is indeed 160 uA
A: What is the Supply-Voltage-Max of the product?
Q: The Supply-Voltage-Max of the product is 6 V.
A: At what frequency does the Supply-Voltage-Min?
Q: The product Supply-Voltage-Min is 2 V.
A: What is the Logic-Family of the product?
Q: The Logic-Family of the product is HC.
A: Is the cutoff frequency of the product Propagation-Delay-Time?
Q: Yes, the product's Propagation-Delay-Time is indeed 150 ns at 2 V 30 ns at 4.5 V 25 ns at 6 V
A: Is the cutoff frequency of the product High-Level-Output-Current?
Q: Yes, the product's High-Level-Output-Current is indeed - 7.8 mA
A: At what frequency does the Low-Level-Output-Current?
Q: The product Low-Level-Output-Current is 7.8 mA.
A: What is the Number-of-Input-Lines of the product?
Q: The Number-of-Input-Lines of the product is 4 Input.
A: At what frequency does the Number-of-Output-Lines?
Q: The product Number-of-Output-Lines is 4 Output.
