SN74CBT3345DW Overview

Product belongs to the 74CBT series. Type: FET Bus Switch Tube Alternate Packaging is the packaging method for this product Weight of 0.017662 oz SMD/SMT Mounting-Style SOIC-20 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 20-SOIC Voltage supply source: Analog and digital Single Supply 8 bit bits Circuit type: 8 x 1:1 1 Independent Circuit Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. Maximum supply current: 50 uA Maximum supply voltage of 5.5 V Minimum supply voltage is 4 V Maximum propagation delay: 0.25 ns Max on-resistance of 7 Ohms

SN74CBT3345DW Image

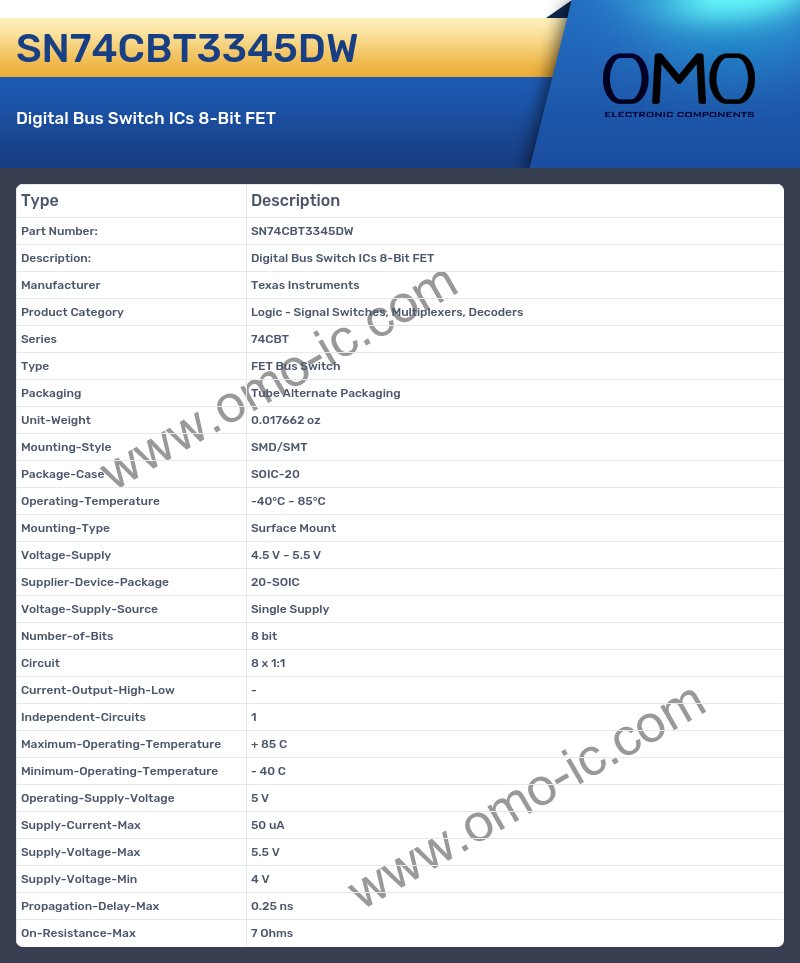

SN74CBT3345DW Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Signal Switches, Multiplexers, Decoders
• Series 74CBT
• Type FET Bus Switch
• Packaging Tube Alternate Packaging
• Unit-Weight 0.017662 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 20-SOIC
• Voltage-Supply-Source Single Supply
• Number-of-Bits 8 bit
• Circuit 8 x 1:1
• Current-Output-High-Low -
• Independent-Circuits 1
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Supply-Current-Max 50 uA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4 V
• Propagation-Delay-Max 0.25 ns
• On-Resistance-Max 7 Ohms
