SN74ALS374AN

SN74ALS374AN Overview

Product belongs to the 74ALS series. Type: D-Type Tube Alternate Packaging is the packaging method for this product Weight of 0.042297 oz Through Hole Mounting-Style PDIP-20 The TTL for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C (TA) Through Hole mounting type Output-Type: Tri-State, Non-Inverted Product function is Standard. Voltage Supply Range: 4.5 V ~ 5.5 V 8 is 8. 35MHz is 26GHz. 1 element D-Type Edge Triggered Flip-Flop logic type 8 bits per element Positive Edge trigger type Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Polarity: Non-Inverting Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V ALS logic type 16 ns is 23 microseconds. High-Level-Output-Current of - 2.6 mA 24 mA low-level output current Number-of-Input-Lines: 3 Number-of-Output-Lines: 1

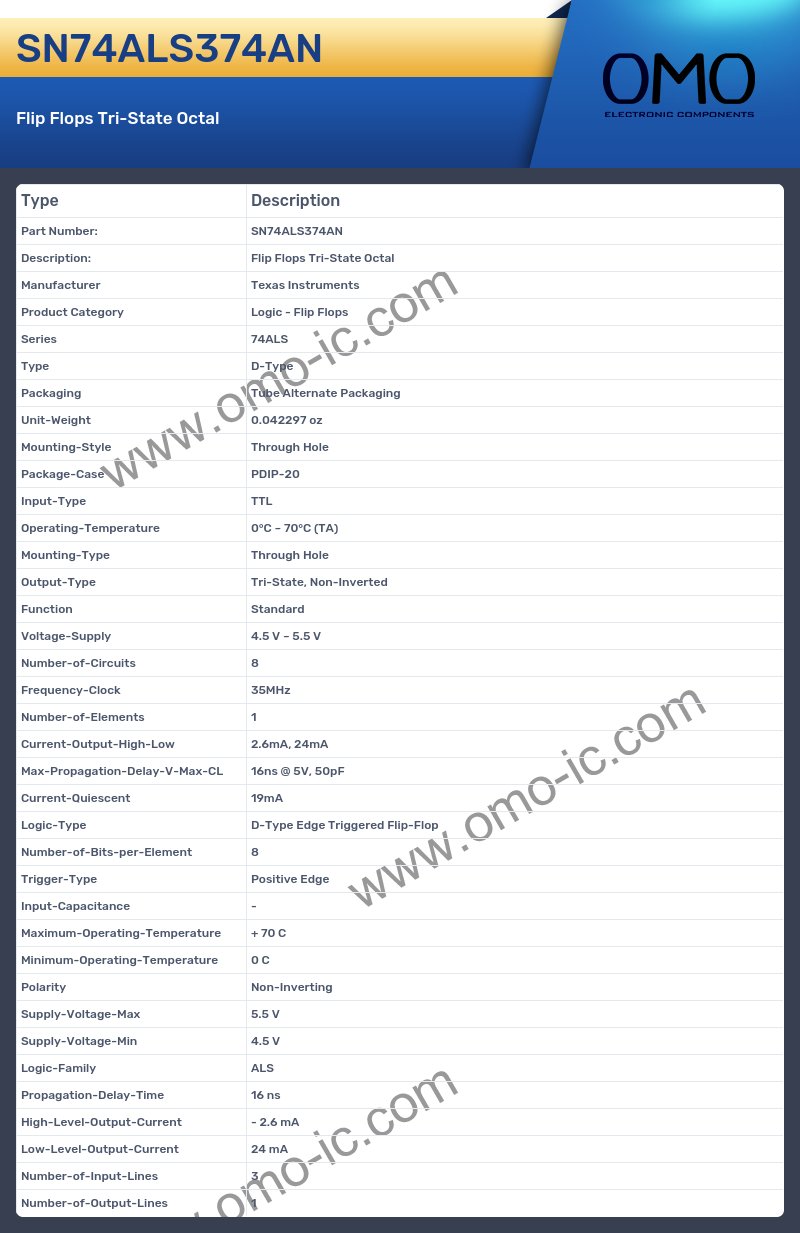

SN74ALS374AN Image

SN74ALS374AN Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Flip Flops
• Series 74ALS
• Type D-Type
• Packaging Tube Alternate Packaging
• Unit-Weight 0.042297 oz
• Mounting-Style Through Hole
• Package-Case PDIP-20
• Input-Type TTL
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Through Hole
• Output-Type Tri-State, Non-Inverted
• Function Standard
• Voltage-Supply 4.5 V ~ 5.5 V
• Number-of-Circuits 8
• Frequency-Clock 35MHz
• Number-of-Elements 1
• Current-Output-High-Low 2.6mA, 24mA
• Max-Propagation-Delay-V-Max-CL 16ns @ 5V, 50pF
• Current-Quiescent 19mA
• Logic-Type D-Type Edge Triggered Flip-Flop
• Number-of-Bits-per-Element 8
• Trigger-Type Positive Edge
• Input-Capacitance -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Polarity Non-Inverting
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family ALS
• Propagation-Delay-Time 16 ns
• High-Level-Output-Current - 2.6 mA
• Low-Level-Output-Current 24 mA
• Number-of-Input-Lines 3
• Number-of-Output-Lines 1
