SN74ACT74MDREP

SN74ACT74MDREP Overview

Product belongs to the 74ACT series. Type: D-Type Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004318 oz SMD/SMT Mounting-Style SOIC-14 The TTL for this product is CMOS/TTL. Operational temperature range: -55°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Differential Product function is Set(Preset) and Reset. Voltage Supply Range: 4.5 V ~ 5.5 V 2 is 8. 210MHz is 26GHz. 2 element CMOS logic type 1 bits per element Positive Edge trigger type Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Polarity: Inverting/Non-Inverting This product is also known as V62/04725-01XE and can be referred to by either part number. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V ACT logic type 11 ns is 23 microseconds. High-Level-Output-Current of - 24 mA 24 mA low-level output current Number-of-Input-Lines: 1 Number-of-Output-Lines: 1

SN74ACT74MDREP Image

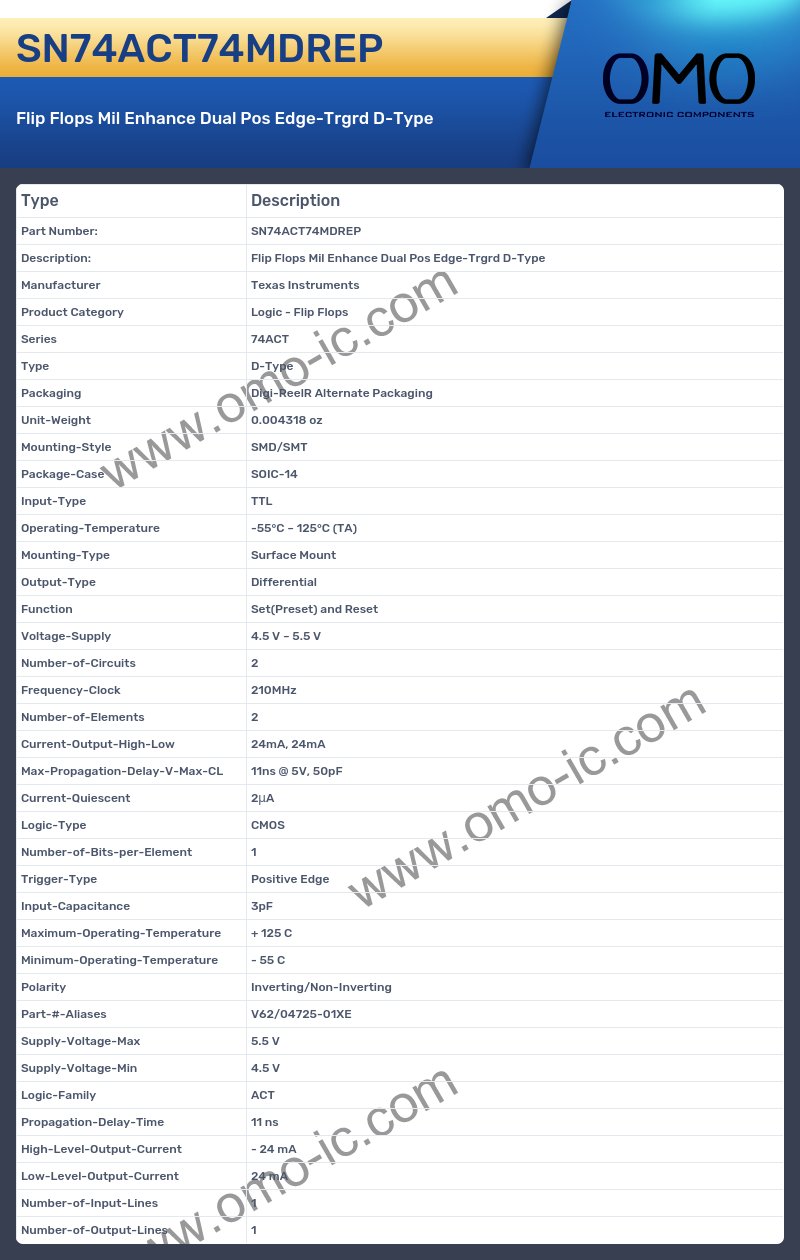

SN74ACT74MDREP Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Flip Flops
• Series 74ACT
• Type D-Type
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004318 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Input-Type TTL
• Operating-Temperature -55°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Output-Type Differential
• Function Set(Preset) and Reset
• Voltage-Supply 4.5 V ~ 5.5 V
• Number-of-Circuits 2
• Frequency-Clock 210MHz
• Number-of-Elements 2
• Current-Output-High-Low 24mA, 24mA
• Max-Propagation-Delay-V-Max-CL 11ns @ 5V, 50pF
• Current-Quiescent 2μA
• Logic-Type CMOS
• Number-of-Bits-per-Element 1
• Trigger-Type Positive Edge
• Input-Capacitance 3pF
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Polarity Inverting/Non-Inverting
• Part-#-Aliases V62/04725-01XE
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family ACT
• Propagation-Delay-Time 11 ns
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 24 mA
• Number-of-Input-Lines 1
• Number-of-Output-Lines 1
