SN74ACT533N

SN74ACT533N Overview

Product belongs to the 74ACT series. Tube is the packaging method for this product Weight of 0.042297 oz Through Hole Mounting-Style PDIP-20 Operational temperature range: -40°C ~ 85°C Through Hole mounting type Output-Type: Tri-State Number of channels: 8 Channels Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 20-PDIP 8 Circuit is 8. Circuit type: 1899/12/30 8:08:00 D-Type Transparent Latch logic type 1 Independent Circuit The 2.5ns Delay-Time-Propagation. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Inverting Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V 74ACT logic type 10.5 ns at 5 V is 23 microseconds. This product has a 4 uA of 7 mA, making it ideal for low-power applications. High-Level-Output-Current of - 24 mA 32 mA low-level output current Number-of-Input-Lines: 3 Line Number-of-Output-Lines: 1 Line

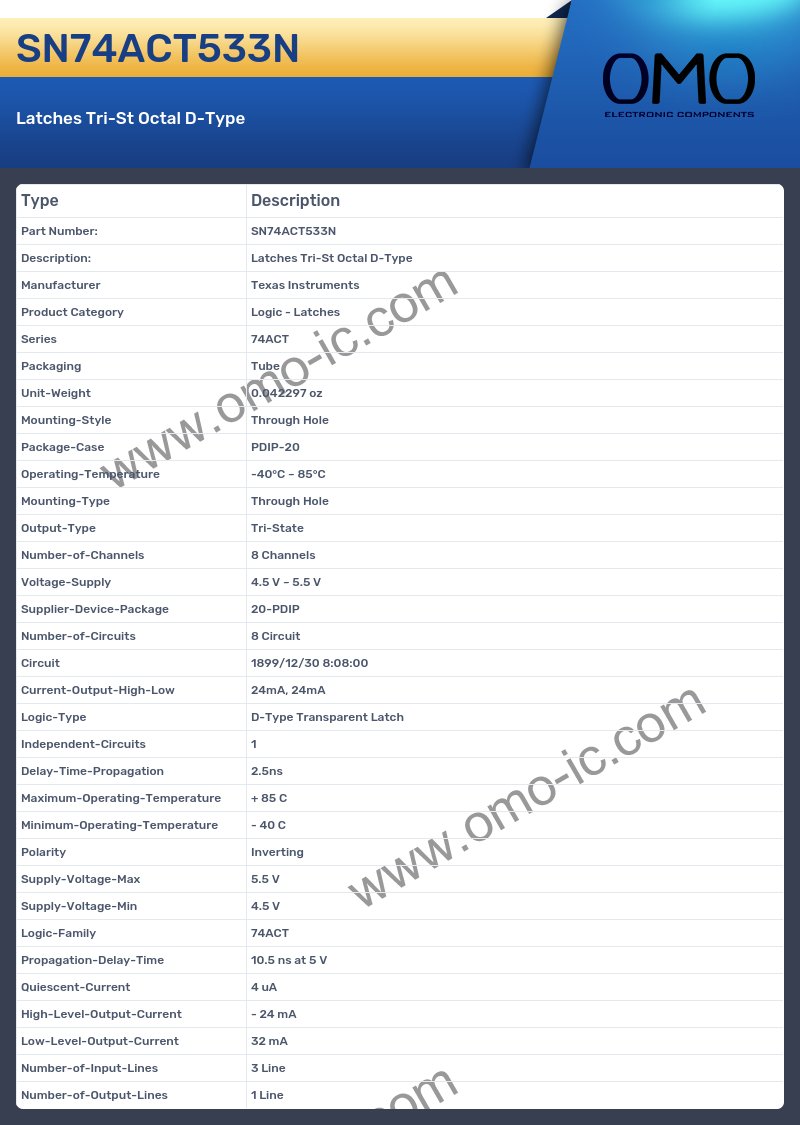

SN74ACT533N Image

SN74ACT533N Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Latches
• Series 74ACT
• Packaging Tube
• Unit-Weight 0.042297 oz
• Mounting-Style Through Hole
• Package-Case PDIP-20
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Through Hole
• Output-Type Tri-State
• Number-of-Channels 8 Channels
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 20-PDIP
• Number-of-Circuits 8 Circuit
• Circuit 1899/12/30 8:08:00
• Current-Output-High-Low 24mA, 24mA
• Logic-Type D-Type Transparent Latch
• Independent-Circuits 1
• Delay-Time-Propagation 2.5ns
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Inverting
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family 74ACT
• Propagation-Delay-Time 10.5 ns at 5 V
• Quiescent-Current 4 uA
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 32 mA
• Number-of-Input-Lines 3 Line
• Number-of-Output-Lines 1 Line
