SM30T12CAY

SM30T12CAY Overview

Product belongs to the Automotive, AEC-Q101, SM30TY, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.008818 oz SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. The Height of the product is 2.45 mm. 8.15 mm length of the product The 6.25 mm is at most 7.6 mm. DO-214AB, SMC Operational temperature range: -55°C ~ 175°C (TJ) Surface Mount mounting type Versatile Automotive applications for maximum usability Supplier device package: SMC (DO-214AB) 1 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 10V. The Voltage-Breakdown-Min is 11.4V. No Power-Line-Protection - Capacitance-Frequency Power-off control: 3 kW Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Breakdown-Voltage: 12 V Clamping-Voltage: 21.7 V 1.17 kA Peak Surge Current 10 V working voltage Polarity: Bidirectional

SM30T12CAY Image

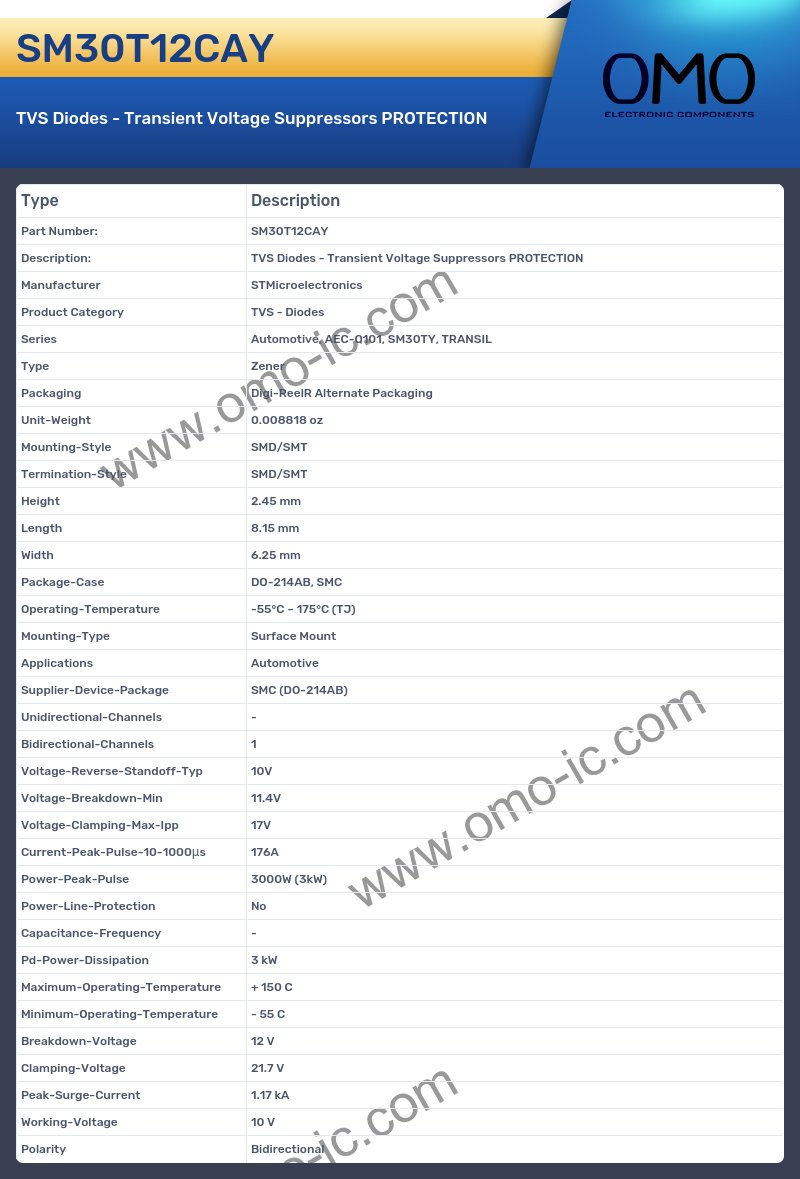

SM30T12CAY Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series Automotive, AEC-Q101, SM30TY, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.008818 oz
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Height 2.45 mm
• Length 8.15 mm
• Width 6.25 mm
• Package-Case DO-214AB, SMC
• Operating-Temperature -55°C ~ 175°C (TJ)
• Mounting-Type Surface Mount
• Applications Automotive
• Supplier-Device-Package SMC (DO-214AB)
• Unidirectional-Channels -
• Bidirectional-Channels 1
• Voltage-Reverse-Standoff-Typ 10V
• Voltage-Breakdown-Min 11.4V
• Voltage-Clamping-Max-Ipp 17V
• Current-Peak-Pulse-10-1000μs 176A
• Power-Peak-Pulse 3000W (3kW)
• Power-Line-Protection No
• Capacitance-Frequency -
• Pd-Power-Dissipation 3 kW
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Breakdown-Voltage 12 V
• Clamping-Voltage 21.7 V
• Peak-Surge-Current 1.17 kA
• Working-Voltage 10 V
• Polarity Bidirectional
