SM2T3V3A

SM2T3V3A Overview

Product belongs to the SM2T, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. Wide - 65 C to + 150 C operating temperature range for diverse applications 1.9 mm length of the product The 1.9 mm is at most 7.6 mm. DO-216AA Operational temperature range: - Surface Mount mounting type Versatile General Purpose applications for maximum usability Supplier device package: DO-216AA Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 3.3V. The Voltage-Breakdown-Min is 3.6V. No Power-Line-Protection 2500pF @ 1MHz Capacitance-Frequency Power-off control: 200 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Breakdown-Voltage: 3.6 V Clamping-Voltage: 6.8 V 30 A Peak Surge Current 3.3 V working voltage Polarity: Unidirectional

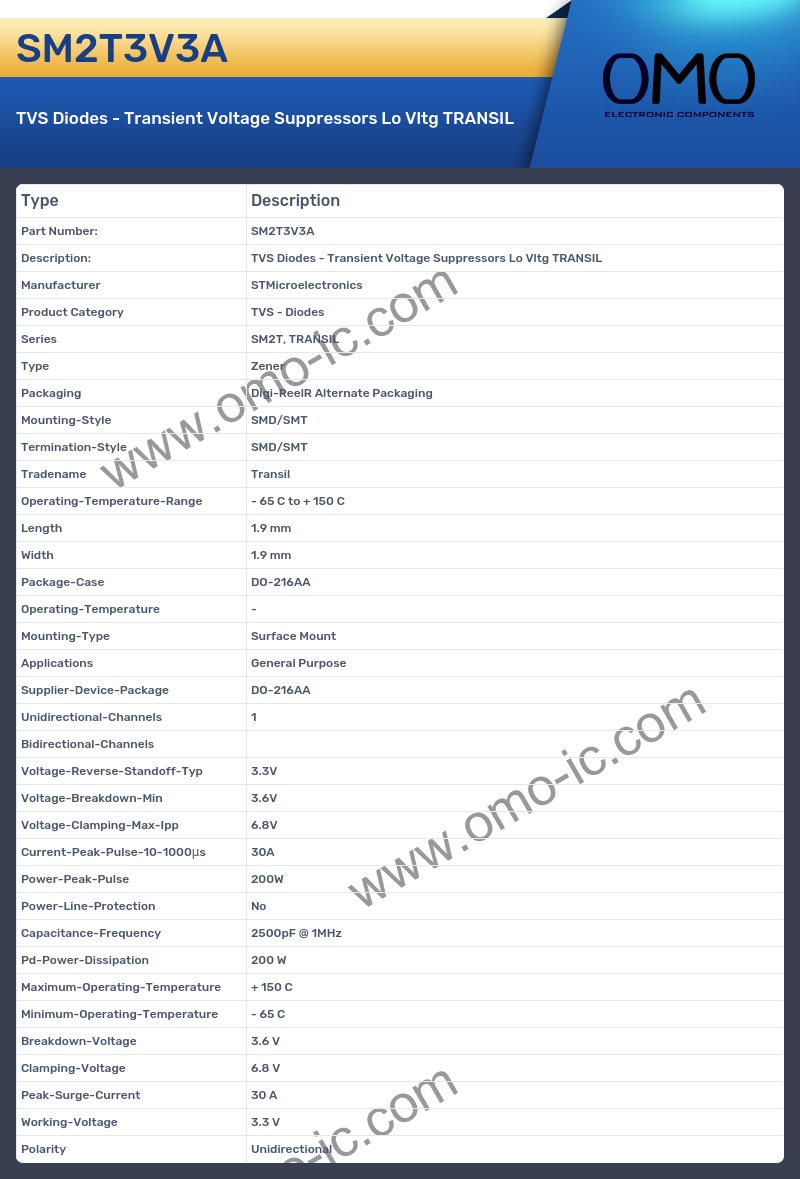

SM2T3V3A Image

SM2T3V3A Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series SM2T, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Tradename Transil
• Operating-Temperature-Range - 65 C to + 150 C
• Length 1.9 mm
• Width 1.9 mm
• Package-Case DO-216AA
• Operating-Temperature -
• Mounting-Type Surface Mount
• Applications General Purpose
• Supplier-Device-Package DO-216AA
• Unidirectional-Channels 1
• Bidirectional-Channels
• Voltage-Reverse-Standoff-Typ 3.3V
• Voltage-Breakdown-Min 3.6V
• Voltage-Clamping-Max-Ipp 6.8V
• Current-Peak-Pulse-10-1000μs 30A
• Power-Peak-Pulse 200W
• Power-Line-Protection No
• Capacitance-Frequency 2500pF @ 1MHz
• Pd-Power-Dissipation 200 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Breakdown-Voltage 3.6 V
• Clamping-Voltage 6.8 V
• Peak-Surge-Current 30 A
• Working-Voltage 3.3 V
• Polarity Unidirectional
