SM15T39CAY

SM15T39CAY Overview

Product belongs to the Automotive, AEC-Q101, SM15TY, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.008818 oz SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. Wide - 40 C to + 150 C operating temperature range for diverse applications The Height of the product is 2.45 mm. 7.15 mm length of the product The 8.15 mm is at most 7.6 mm. DO-214AB, SMC Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile Automotive applications for maximum usability Supplier device package: SMC 1 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 33.3V. The Voltage-Breakdown-Min is 37.1V. No Power-Line-Protection - Capacitance-Frequency Power-off control: 1.5 kW Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Breakdown-Voltage: 39 V Clamping-Voltage: 53.9 V 28 A Peak Surge Current 33.3 V working voltage Polarity: Bidirectional

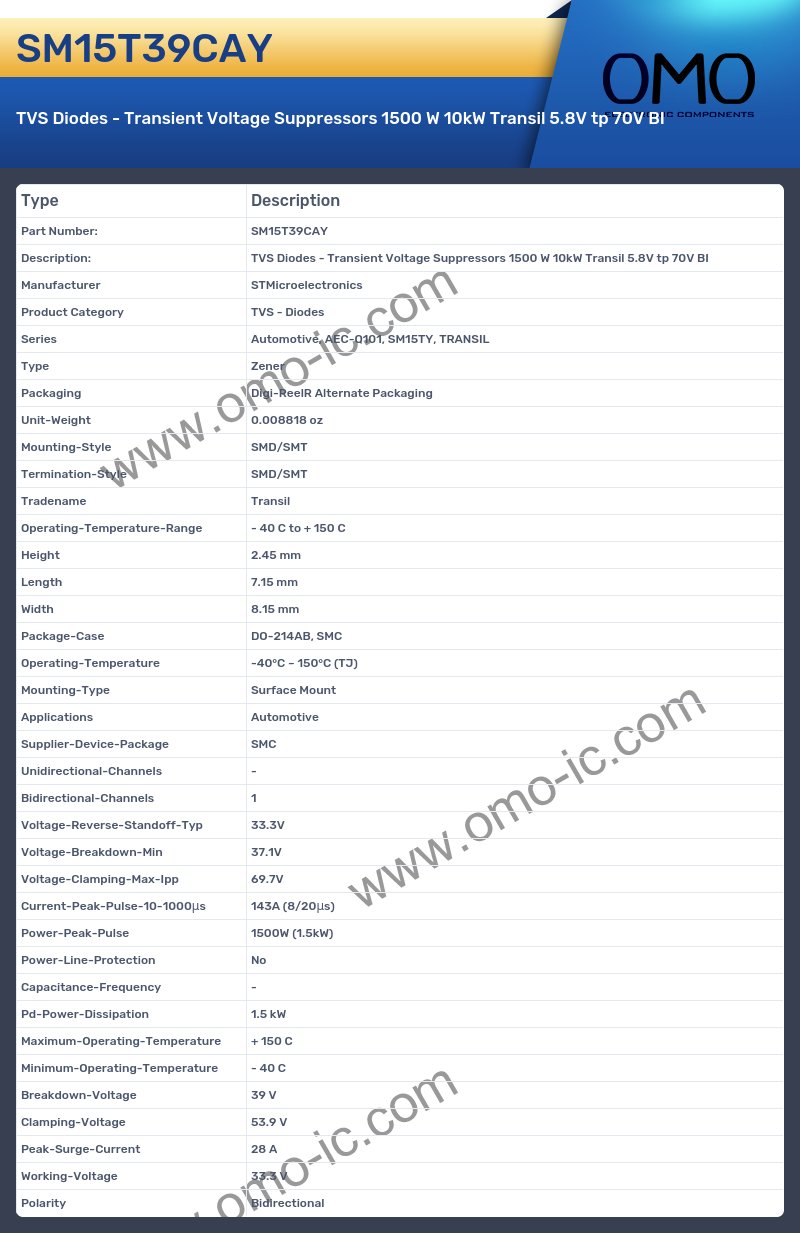

SM15T39CAY Image

SM15T39CAY Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series Automotive, AEC-Q101, SM15TY, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.008818 oz
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Tradename Transil
• Operating-Temperature-Range - 40 C to + 150 C
• Height 2.45 mm
• Length 7.15 mm
• Width 8.15 mm
• Package-Case DO-214AB, SMC
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications Automotive
• Supplier-Device-Package SMC
• Unidirectional-Channels -
• Bidirectional-Channels 1
• Voltage-Reverse-Standoff-Typ 33.3V
• Voltage-Breakdown-Min 37.1V
• Voltage-Clamping-Max-Ipp 69.7V
• Current-Peak-Pulse-10-1000μs 143A (8/20μs)
• Power-Peak-Pulse 1500W (1.5kW)
• Power-Line-Protection No
• Capacitance-Frequency -
• Pd-Power-Dissipation 1.5 kW
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 39 V
• Clamping-Voltage 53.9 V
• Peak-Surge-Current 28 A
• Working-Voltage 33.3 V
• Polarity Bidirectional
