SI8421BB-D-IS

SI8421BB-D-IS Overview

Product belongs to the Si8421BB series. This product is categorized as Digital Isolators Type: General Purpose Tube Alternate Packaging is the packaging method for this product Weight of 0.003365 oz SMD/SMT Mounting-Style SOIC-8 Narrow Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 2 Voltage Supply Range: 2.7 V ~ 5.5 V Supplier device package: 8-SOIC This product's Unidirectional This product is designed with 2500Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2016/1/1 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs (Typ) of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 9.5ns, 9.5ns The minimum pulse width distortion is 2.5ns. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Capacitive Coupling is the isolation type specified for this product. 6 mA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V 6 ns is 23 microseconds.

SI8421BB-D-IS Image

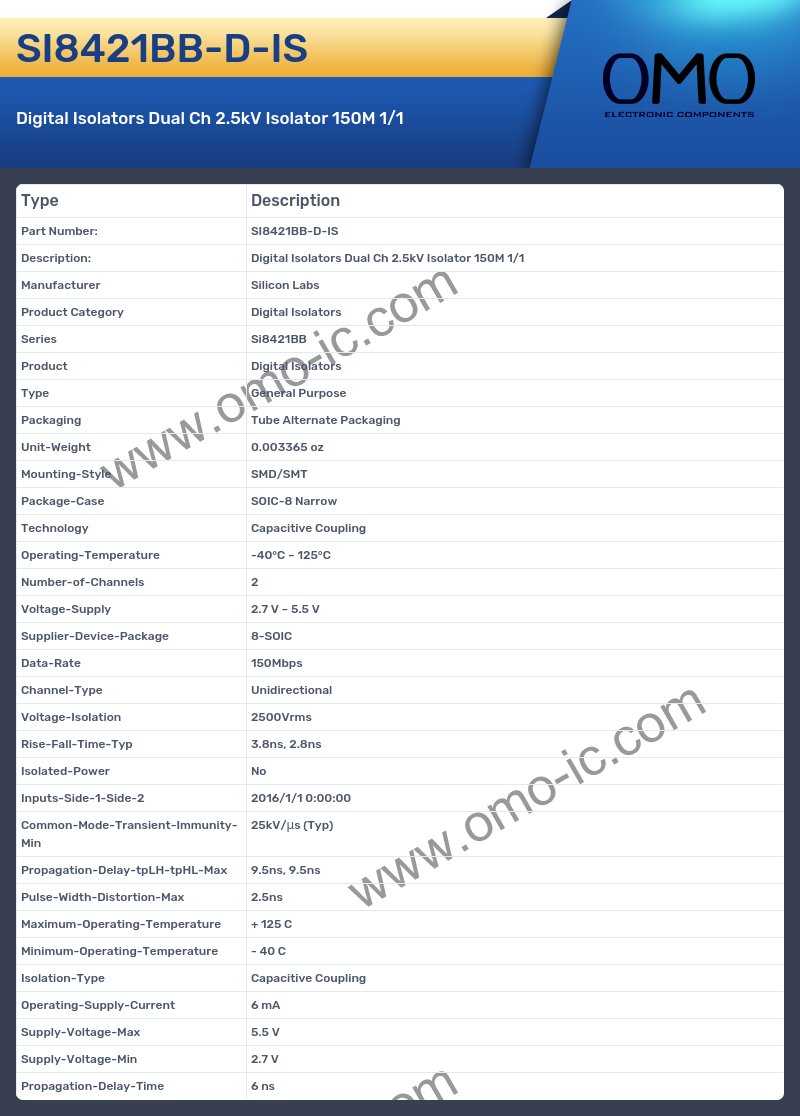

SI8421BB-D-IS Specifications

• Manufacturer Silicon Labs
• Product Category Digital Isolators
• Series Si8421BB
• Product Digital Isolators
• Type General Purpose
• Packaging Tube Alternate Packaging
• Unit-Weight 0.003365 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8 Narrow
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Number-of-Channels 2
• Voltage-Supply 2.7 V ~ 5.5 V
• Supplier-Device-Package 8-SOIC
• Data-Rate 150Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 2500Vrms
• Rise-Fall-Time-Typ 3.8ns, 2.8ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2016/1/1 0:00:00
• Common-Mode-Transient-Immunity-Min 25kV/μs (Typ)
• Propagation-Delay-tpLH-tpHL-Max 9.5ns, 9.5ns
• Pulse-Width-Distortion-Max 2.5ns
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Isolation-Type Capacitive Coupling
• Operating-Supply-Current 6 mA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Propagation-Delay-Time 6 ns
