SG2525AP013TR

SG2525AP013TR Overview

Product belongs to the SG2525 series. This product is categorized as Voltage Controllers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.007079 oz SMD/SMT Mounting-Style SO-16 Operational temperature range: -25°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Down, Step-Up/Step-Down. Supplier device package: 16-SO Number-of-Outputs: 2 Topology: Buck, Push-Pull feedback Supply Voltage: 8 V ~ 35 V This product features 'Frequency-Switching' at 100Hz ~ 400kHz for optimal performance. The Control-Features include Enable, Soft Start function. The Positive. Output-Phases: 1 Maximum duty cycle of 49 % The value of Yes is included as a product attribute. Yes enabled Serial Interfaces: - Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C This product operates at a 8 V to 35 V supply voltage for reliable performance. Output voltage: 5.1 V Output current: 500 mA Switching frequency is 100 Hz to 400 kHz

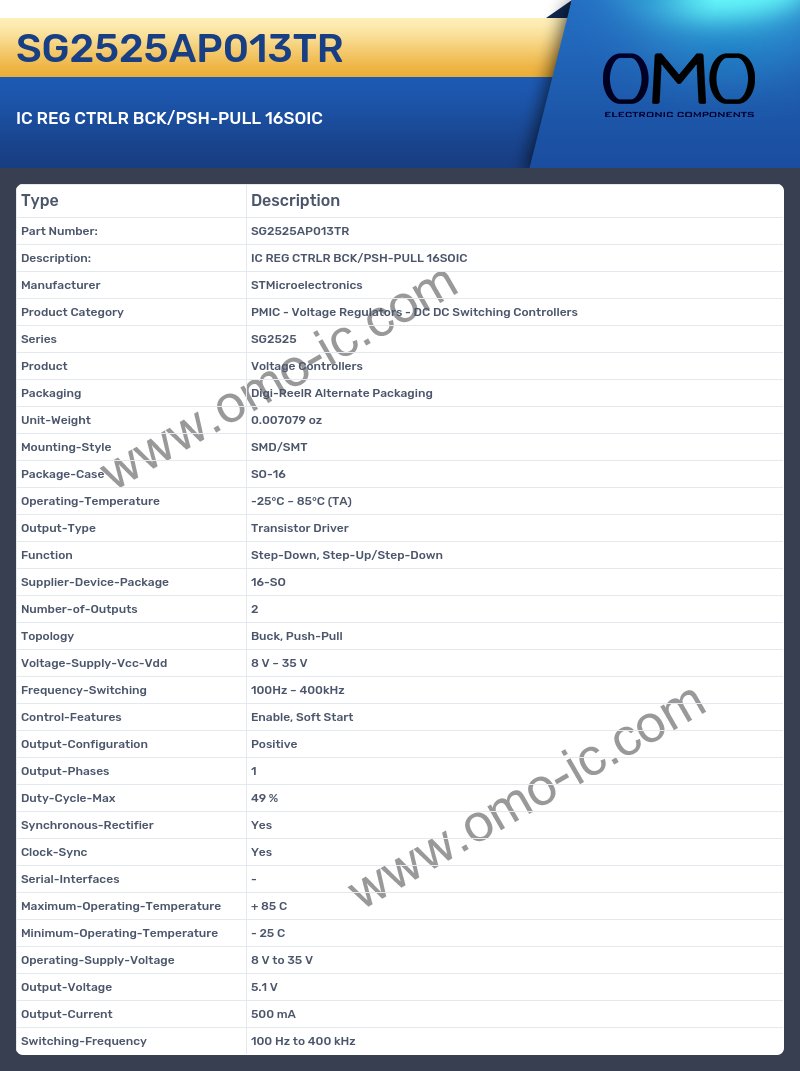

SG2525AP013TR Image

SG2525AP013TR Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series SG2525
• Product Voltage Controllers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.007079 oz
• Mounting-Style SMD/SMT
• Package-Case SO-16
• Operating-Temperature -25°C ~ 85°C (TA)
• Output-Type Transistor Driver
• Function Step-Down, Step-Up/Step-Down
• Supplier-Device-Package 16-SO
• Number-of-Outputs 2
• Topology Buck, Push-Pull
• Voltage-Supply-Vcc-Vdd 8 V ~ 35 V
• Frequency-Switching 100Hz ~ 400kHz
• Control-Features Enable, Soft Start
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 49 %
• Synchronous-Rectifier Yes
• Clock-Sync Yes
• Serial-Interfaces -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Operating-Supply-Voltage 8 V to 35 V
• Output-Voltage 5.1 V
• Output-Current 500 mA
• Switching-Frequency 100 Hz to 400 kHz
