SE555D

SE555D Overview

Product belongs to the SE555 series. Type: 555 Type, Timer/Oscillator (Single) Tube is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 This product's 500kHz range is 0Hz to 2.2GHz. Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 4.5 V ~ 18 V Supplier device package: 8-SO This product has a 10mA of 200μA. Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C 4000 uA is 92 nA. Maximum supply voltage of 18 V Minimum supply voltage is 4.5 V High-Level-Output-Current of 200 mA - 200 mA low-level output current 1 Timer Internal Timers

SE555D Image

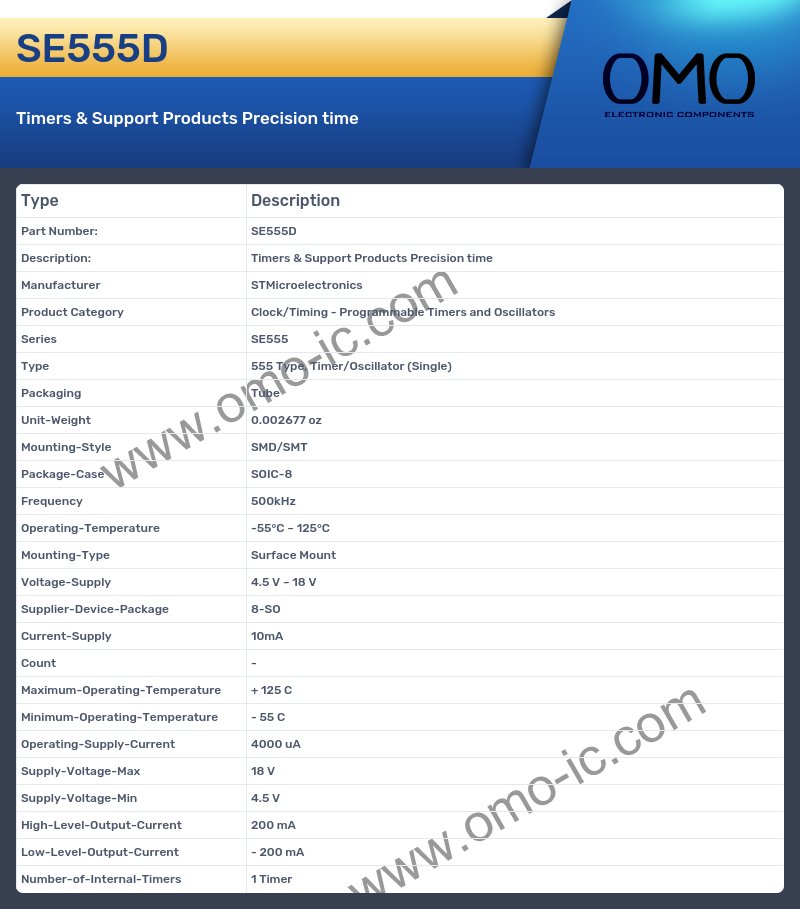

SE555D Specifications

• Manufacturer STMicroelectronics
• Product Category Clock/Timing - Programmable Timers and Oscillators
• Series SE555
• Type 555 Type, Timer/Oscillator (Single)
• Packaging Tube
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Frequency 500kHz
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Voltage-Supply 4.5 V ~ 18 V
• Supplier-Device-Package 8-SO
• Current-Supply 10mA
• Count -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Operating-Supply-Current 4000 uA
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 4.5 V
• High-Level-Output-Current 200 mA
• Low-Level-Output-Current - 200 mA
• Number-of-Internal-Timers 1 Timer
