SD56120

SD56120 Overview

Product belongs to the SD56120 series. Type: RF Power MOSFET Tube is the packaging method for this product SMD/SMT Mounting-Style M246 Si is the technology used. The device offers a 14 dB at 860 MHz of 26dB. Power-off control: 217 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C The operating frequency is 1 GHz. This product's +/- 20 V. The ID of continuous drain current is 14 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 65 V. The transistor polarity is N-Channel. This product features a 3 S of 500 S for high performance.

SD56120 Image

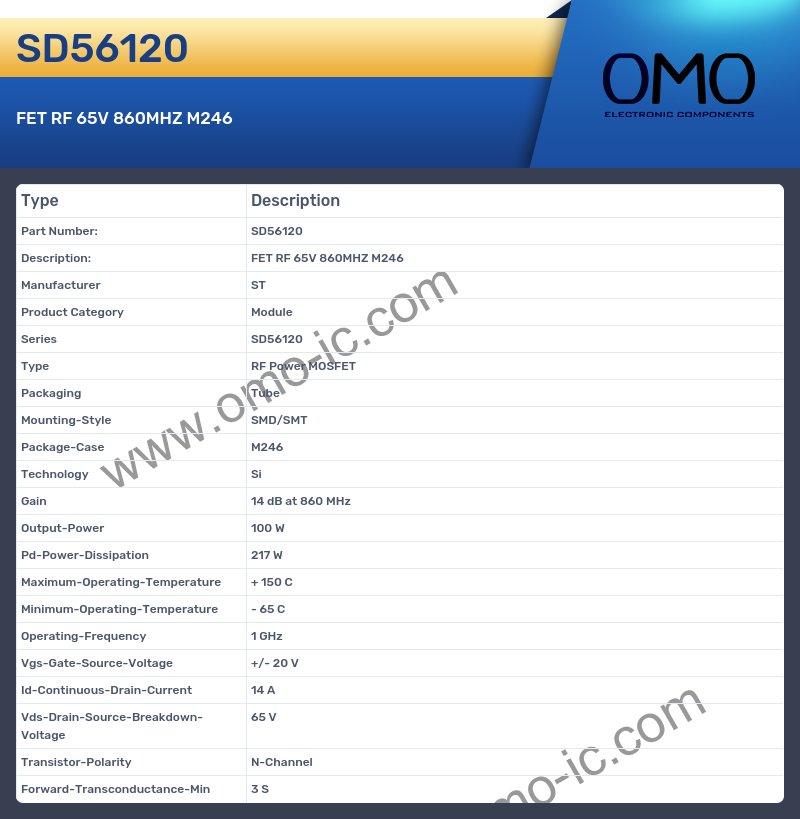

SD56120 Specifications

• Manufacturer ST
• Product Category Module
• Series SD56120
• Type RF Power MOSFET
• Packaging Tube
• Mounting-Style SMD/SMT
• Package-Case M246
• Technology Si
• Gain 14 dB at 860 MHz
• Output-Power 100 W
• Pd-Power-Dissipation 217 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Operating-Frequency 1 GHz
• Vgs-Gate-Source-Voltage +/- 20 V
• Id-Continuous-Drain-Current 14 A
• Vds-Drain-Source-Breakdown-Voltage 65 V
• Transistor-Polarity N-Channel
• Forward-Transconductance-Min 3 S
