REF02Z

REF02Z Overview

Product belongs to the REF02 series. Tube is the packaging method for this product Through Hole Mounting-Style CDIP-8 Operational temperature range: -55°C ~ 125°C (TA) Through Hole mounting type Output-Type: Fixed Supplier device package: 8-CERDIP Tolerance of ±0.5% 7 V ~ 40 V voltage input This product has a 1.4mA of 200μA. Series is the reference type. Minimum fixed output voltage is 5V . 25ppm/°C is 30 parts per million per degree Celsius. 15μVp-p of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Output voltage: 5 V Input Voltage Range: 7 V to 36 V Maximum supply current: 1 mA Initial accuracy: +/- 0.3 % Maximum input voltage of 36 V for Series VREF. Maximum output voltage is 10 V .

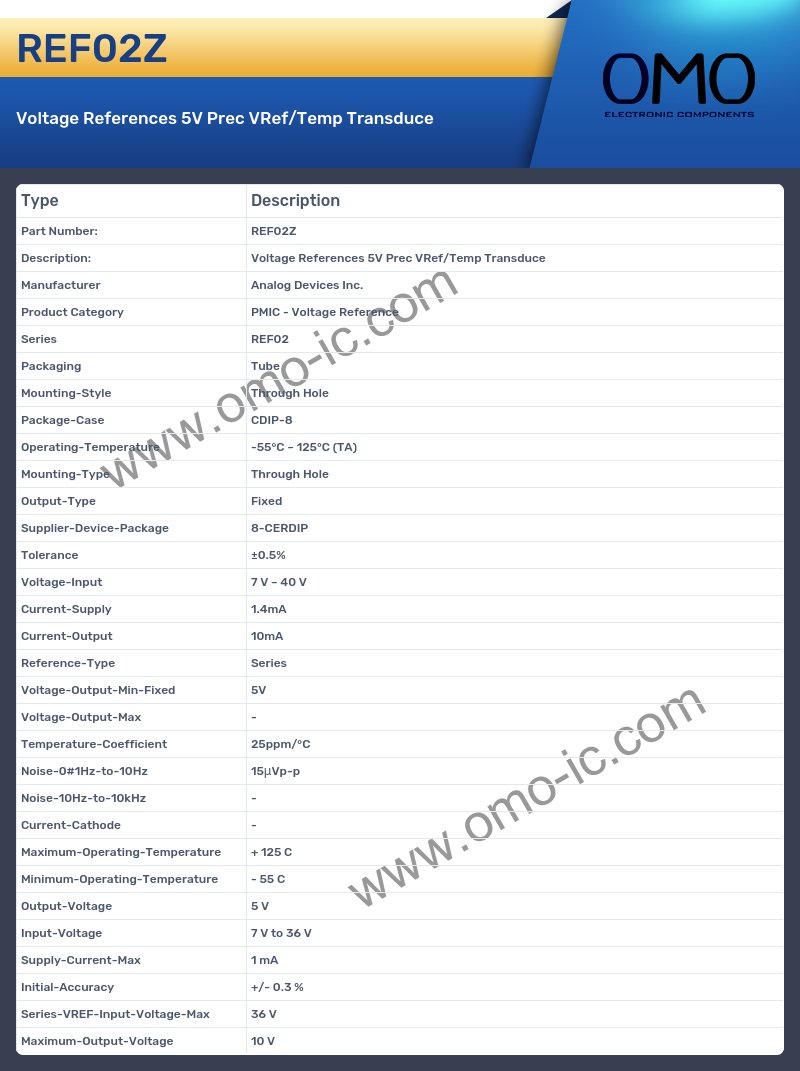

REF02Z Image

REF02Z Specifications

• Manufacturer Analog Devices Inc.
• Product Category PMIC - Voltage Reference
• Series REF02
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case CDIP-8
• Operating-Temperature -55°C ~ 125°C (TA)
• Mounting-Type Through Hole
• Output-Type Fixed
• Supplier-Device-Package 8-CERDIP
• Tolerance ±0.5%
• Voltage-Input 7 V ~ 40 V
• Current-Supply 1.4mA
• Current-Output 10mA
• Reference-Type Series
• Voltage-Output-Min-Fixed 5V
• Voltage-Output-Max -
• Temperature-Coefficient 25ppm/°C
• Noise-0#1Hz-to-10Hz 15μVp-p
• Noise-10Hz-to-10kHz -
• Current-Cathode -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Output-Voltage 5 V
• Input-Voltage 7 V to 36 V
• Supply-Current-Max 1 mA
• Initial-Accuracy +/- 0.3 %
• Series-VREF-Input-Voltage-Max 36 V
• Maximum-Output-Voltage 10 V
