PTH12020WAST

PTH12020WAST Overview

Product belongs to the PTH12020 series. This product is categorized as Non-Isolated / POL Type: Non-Isolated PoL Module Tape & Reel (TR) is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications 10-SMD Module Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 1 Our product delivers a 18A of 50mA for efficient power management. The minimum input voltage is 10.8V. The 13.2V. This product is designed with - voltage isolation for maximum safety and reliability. 1.2 ~ 5.5 V output voltage Input Voltage Range: 10.8 V to 13.2 V 1.2 V to 5.5 V output voltage for channel 1 Current output of channel 1 is 18 A . Surface Mount Module package-case-size

PTH12020WAST Image

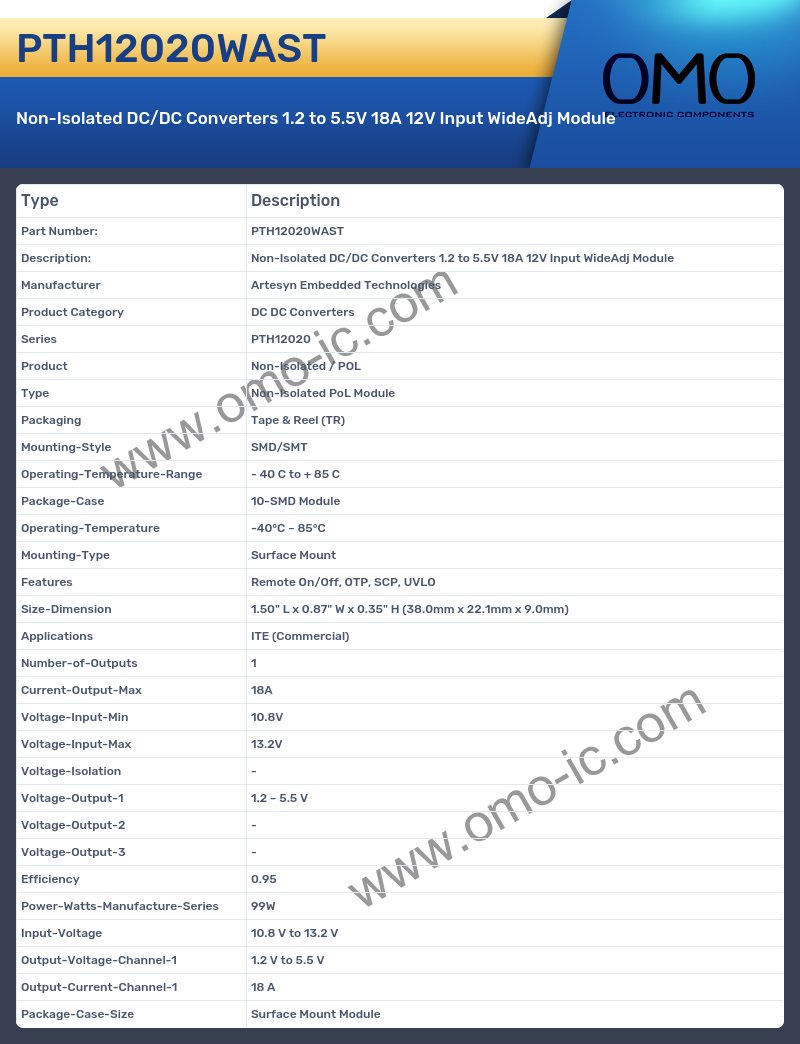

PTH12020WAST Specifications

• Manufacturer Artesyn Embedded Technologies
• Product Category DC DC Converters
• Series PTH12020
• Product Non-Isolated / POL
• Type Non-Isolated PoL Module
• Packaging Tape & Reel (TR)
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case 10-SMD Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features Remote On/Off, OTP, SCP, UVLO
• Size-Dimension 1.50" L x 0.87" W x 0.35" H (38.0mm x 22.1mm x 9.0mm)
• Applications ITE (Commercial)
• Number-of-Outputs 1
• Current-Output-Max 18A
• Voltage-Input-Min 10.8V
• Voltage-Input-Max 13.2V
• Voltage-Isolation -
• Voltage-Output-1 1.2 ~ 5.5 V
• Voltage-Output-2 -
• Voltage-Output-3 -
• Efficiency 0.95
• Power-Watts-Manufacture-Series 99W
• Input-Voltage 10.8 V to 13.2 V
• Output-Voltage-Channel-1 1.2 V to 5.5 V
• Output-Current-Channel-1 18 A
• Package-Case-Size Surface Mount Module
