PTB48501AAZ

PTB48501AAZ Overview

Product belongs to the PTB4850x series. Type: Isolated Module Tray is the packaging method for this product 10-SMD Module Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 2 Our product delivers a 6A, 10.5A of 50mA for efficient power management. The minimum input voltage is 36V. The 75V. This product is designed with 1.5kV (1500V) voltage isolation for maximum safety and reliability. 3.3V output voltage

PTB48501AAZ Image

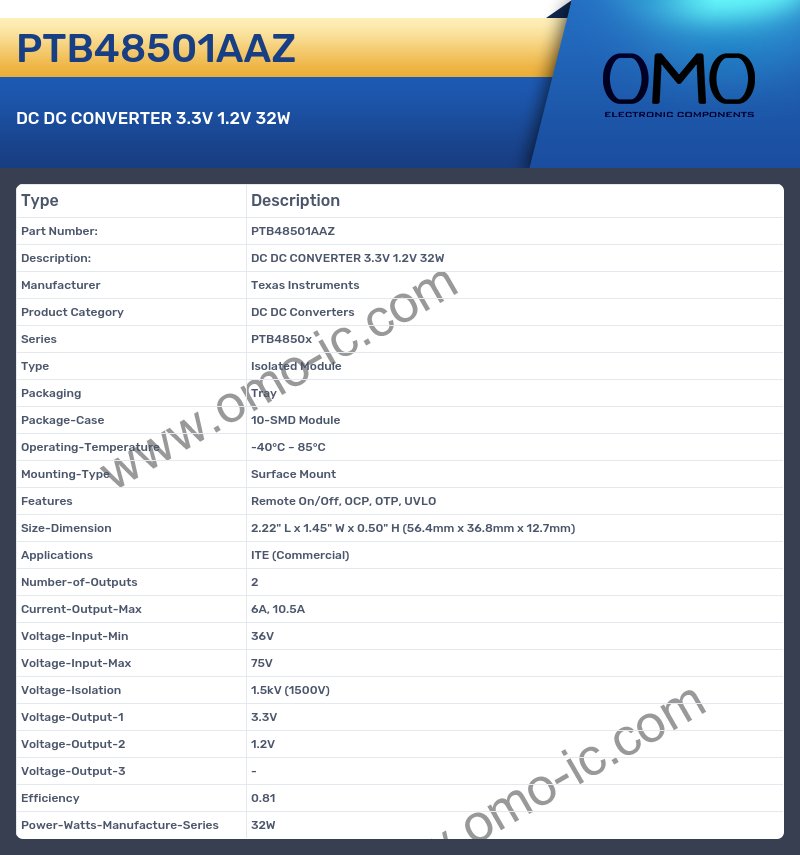

PTB48501AAZ Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series PTB4850x
• Type Isolated Module
• Packaging Tray
• Package-Case 10-SMD Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features Remote On/Off, OCP, OTP, UVLO
• Size-Dimension 2.22" L x 1.45" W x 0.50" H (56.4mm x 36.8mm x 12.7mm)
• Applications ITE (Commercial)
• Number-of-Outputs 2
• Current-Output-Max 6A, 10.5A
• Voltage-Input-Min 36V
• Voltage-Input-Max 75V
• Voltage-Isolation 1.5kV (1500V)
• Voltage-Output-1 3.3V
• Voltage-Output-2 1.2V
• Voltage-Output-3 -
• Efficiency 0.81
• Power-Watts-Manufacture-Series 32W
