PT78NR106S

PT78NR106S Overview

Product belongs to the PT78NR100 series. Type: Non-Isolated PoL Module Tray is the packaging method for this product 3-SMD Module Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 1 Our product delivers a 800mA of 50mA for efficient power management. The minimum input voltage is 7V. The 21V. This product is designed with - voltage isolation for maximum safety and reliability. -6V output voltage

PT78NR106S Image

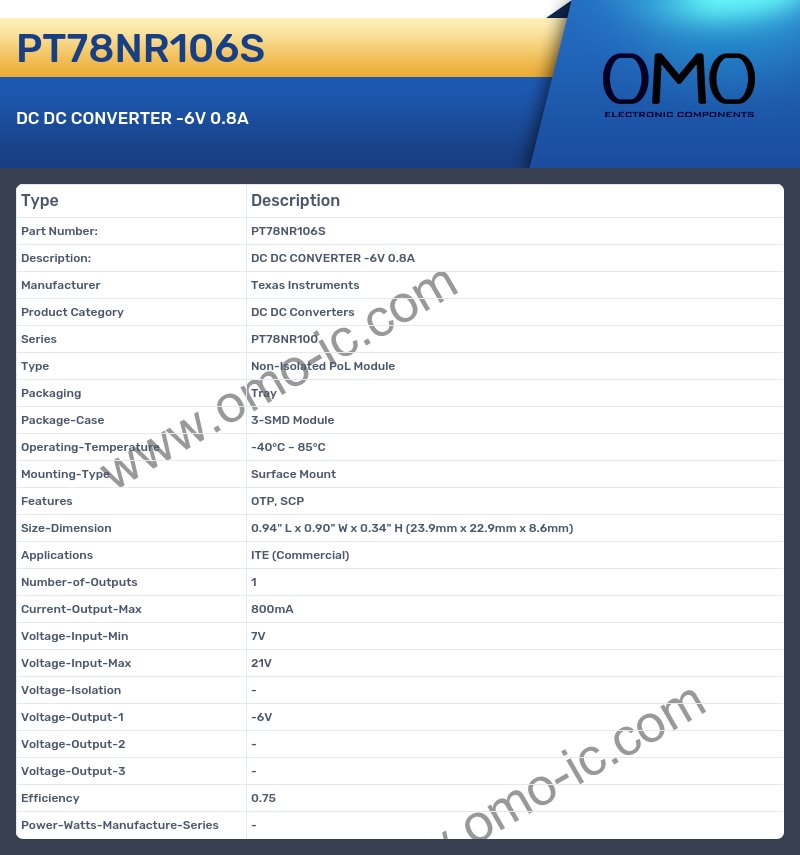

PT78NR106S Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series PT78NR100
• Type Non-Isolated PoL Module
• Packaging Tray
• Package-Case 3-SMD Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features OTP, SCP
• Size-Dimension 0.94" L x 0.90" W x 0.34" H (23.9mm x 22.9mm x 8.6mm)
• Applications ITE (Commercial)
• Number-of-Outputs 1
• Current-Output-Max 800mA
• Voltage-Input-Min 7V
• Voltage-Input-Max 21V
• Voltage-Isolation -
• Voltage-Output-1 -6V
• Voltage-Output-2 -
• Voltage-Output-3 -
• Efficiency 0.75
• Power-Watts-Manufacture-Series -
