PIC24F08KL302-E/SP

PIC24F08KL302-E/SP Overview

Product belongs to the PICR XLP 24F series. Tube is the packaging method for this product Through Hole Mounting-Style SPDIP-28 Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 28-SPDIP This product has 24 I/O ports for versatile connectivity. Operating frequency: 32MHz Program memory type: FLASH I2C, IrDA, LIN, SPI, UART/USART interface Supply Voltage: 1.8 V ~ 3.6 V 16-Bit architecture Internal oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 3.6 V supply voltage for reliable performance. I2C SPI UART interface type Processor Core: PIC This product is powered by the PIC24F08KL302 Processor-Series, providing high performance and efficiency. The 16 bit. Maximum clock frequency of 32 MHz This product has a 1024 B data RAM size, providing ample storage for complex applications. The product has a 256 B data-ROM size. This product features 4 Timer number of timers and counters. This product features a high-precision No ADC, ensuring accurate data conversion. This product utilizes SRAM, providing fast and efficient data storage. The EEPROM Data-ROM-Type ensures non-volatile memory storage.

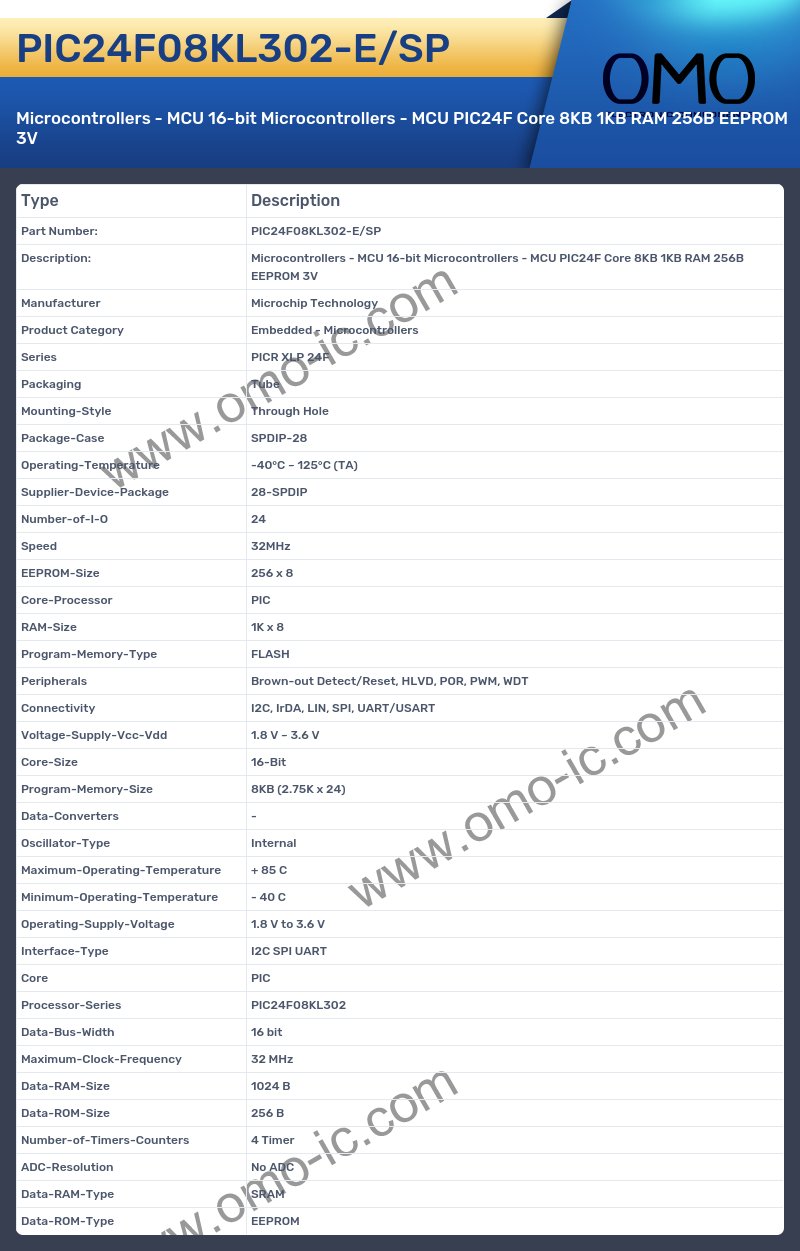

PIC24F08KL302-E/SP Image

PIC24F08KL302-E/SP Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR XLP 24F
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case SPDIP-28
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 28-SPDIP
• Number-of-I-O 24
• Speed 32MHz
• EEPROM-Size 256 x 8
• Core-Processor PIC
• RAM-Size 1K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, HLVD, POR, PWM, WDT
• Connectivity I2C, IrDA, LIN, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 1.8 V ~ 3.6 V
• Core-Size 16-Bit
• Program-Memory-Size 8KB (2.75K x 24)
• Data-Converters -
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 3.6 V
• Interface-Type I2C SPI UART
• Core PIC
• Processor-Series PIC24F08KL302
• Data-Bus-Width 16 bit
• Maximum-Clock-Frequency 32 MHz
• Data-RAM-Size 1024 B
• Data-ROM-Size 256 B
• Number-of-Timers-Counters 4 Timer
• ADC-Resolution No ADC
• Data-RAM-Type SRAM
• Data-ROM-Type EEPROM
