PIC18LF6520-I/PT

PIC18LF6520-I/PT Overview

Product belongs to the PICR 18F series. This product is categorized as MCU Tray Alternate Packaging is the packaging method for this product Weight of 0.012720 oz SMD/SMT Mounting-Style TQFP-64 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 64-TQFP (10x10) This product has 52 I/O ports for versatile connectivity. Operating frequency: 40MHz Program memory type: FLASH I2C, SPI, UART/USART interface Supply Voltage: 2 V ~ 5.5 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2 V to 5.5 V supply voltage for reliable performance. I2C SPI USART interface type Processor Core: PIC This product is powered by the PIC18 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 5.5 V 5.8 V Minimum supply voltage is 3.9 V 4.2 V Maximum clock frequency of 40 MHz Number of ADC Channels: 12 This product has 52 I/O connections. This product has a 2048 B data RAM size, providing ample storage for complex applications. The product has a 1024 B data-ROM size. This product features 5 Timer number of timers and counters. This product features a high-precision 10 bit, ensuring accurate data conversion. This product utilizes SRAM, providing fast and efficient data storage. The EEPROM Data-ROM-Type ensures non-volatile memory storage.

PIC18LF6520-I/PT Image

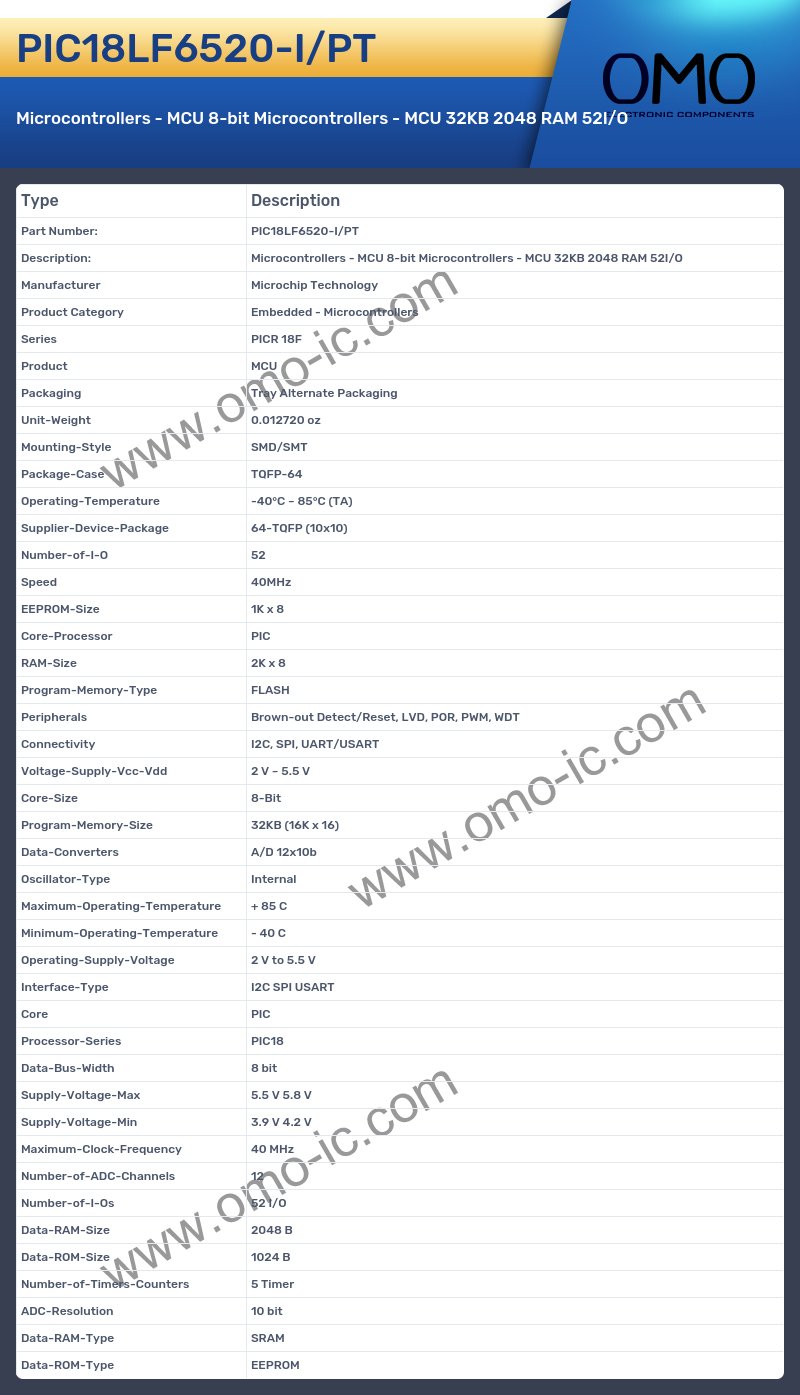

PIC18LF6520-I/PT Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 18F
• Product MCU
• Packaging Tray Alternate Packaging
• Unit-Weight 0.012720 oz
• Mounting-Style SMD/SMT
• Package-Case TQFP-64
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 64-TQFP (10x10)
• Number-of-I-O 52
• Speed 40MHz
• EEPROM-Size 1K x 8
• Core-Processor PIC
• RAM-Size 2K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, LVD, POR, PWM, WDT
• Connectivity I2C, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 2 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 32KB (16K x 16)
• Data-Converters A/D 12x10b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2 V to 5.5 V
• Interface-Type I2C SPI USART
• Core PIC
• Processor-Series PIC18
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.5 V 5.8 V
• Supply-Voltage-Min 3.9 V 4.2 V
• Maximum-Clock-Frequency 40 MHz
• Number-of-ADC-Channels 12
• Number-of-I-Os 52 I/O
• Data-RAM-Size 2048 B
• Data-ROM-Size 1024 B
• Number-of-Timers-Counters 5 Timer
• ADC-Resolution 10 bit
• Data-RAM-Type SRAM
• Data-ROM-Type EEPROM
