PIC18LF46K22-E/P

PIC18LF46K22-E/P Overview

Product belongs to the PICR XLP 18K series. This product is categorized as MCU Tube is the packaging method for this product Weight of 0.210004 oz Through Hole Mounting-Style PDIP-40 Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 40-PDIP This product has 35 I/O ports for versatile connectivity. Operating frequency: 48MHz Program memory type: FLASH I2C, SPI, UART/USART interface Supply Voltage: 1.8 V ~ 3.6 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 3.6 V supply voltage for reliable performance. I2C/SPI/USART interface type Processor Core: PIC This product is powered by the PIC18 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 3.6 V Minimum supply voltage is 1.8 V Maximum clock frequency of 48 MHz Number of ADC Channels: 28 This product has 36 I/O connections. This product has a 3896 B data RAM size, providing ample storage for complex applications. This product features 7 Timer number of timers and counters. This product features a high-precision 10 bit, ensuring accurate data conversion.

PIC18LF46K22-E/P Image

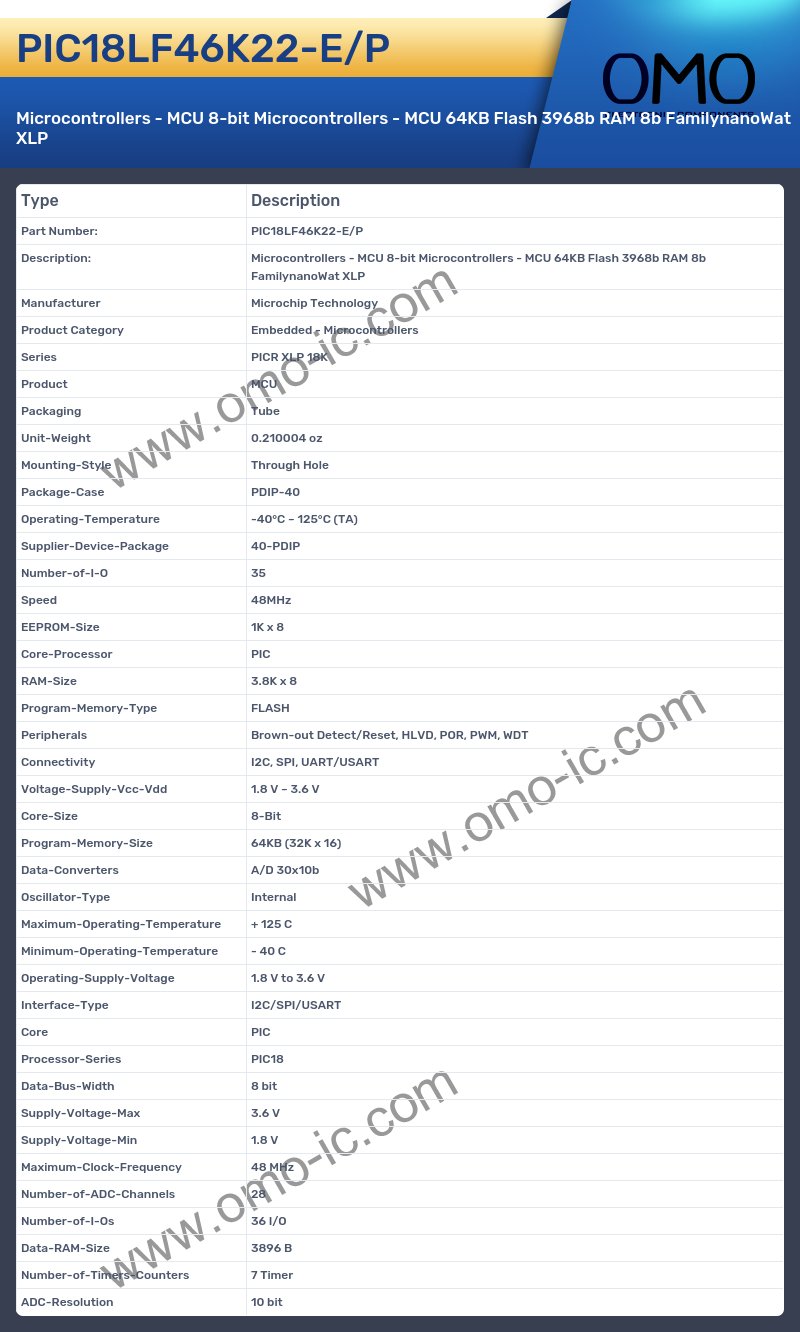

PIC18LF46K22-E/P Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR XLP 18K
• Product MCU
• Packaging Tube
• Unit-Weight 0.210004 oz
• Mounting-Style Through Hole
• Package-Case PDIP-40
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 40-PDIP
• Number-of-I-O 35
• Speed 48MHz
• EEPROM-Size 1K x 8
• Core-Processor PIC
• RAM-Size 3.8K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, HLVD, POR, PWM, WDT
• Connectivity I2C, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 1.8 V ~ 3.6 V
• Core-Size 8-Bit
• Program-Memory-Size 64KB (32K x 16)
• Data-Converters A/D 30x10b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 3.6 V
• Interface-Type I2C/SPI/USART
• Core PIC
• Processor-Series PIC18
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 1.8 V
• Maximum-Clock-Frequency 48 MHz
• Number-of-ADC-Channels 28
• Number-of-I-Os 36 I/O
• Data-RAM-Size 3896 B
• Number-of-Timers-Counters 7 Timer
• ADC-Resolution 10 bit
