PIC16F18875-E/MV

PIC16F18875-E/MV Overview

Product belongs to the PICR XLP 16F series. This product is categorized as MCU Tube is the packaging method for this product SMD/SMT Mounting-Style UQFN-40 Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 40-UQFN (5x5) This product has 36 I/O ports for versatile connectivity. Operating frequency: 32MHz Program memory type: FLASH I2C, LIN, SPI, UART/USART interface Supply Voltage: 2.3 V ~ 5.5 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 2.3 V to 5.5 V supply voltage for reliable performance. EUSART I2C LIN RS-232 RS-485 SPI interface type Processor Core: PIC16 The 8 bit. Maximum supply voltage of 5.5 V Minimum supply voltage is 2.3 V Maximum clock frequency of 32 MHz Number of ADC Channels: 35 Channel This product has 36 I/O connections. This product has a 1 kB data RAM size, providing ample storage for complex applications. The product has a 256 B data-ROM size. This product features 3 x 8 bit 4 x 16 bit number of timers and counters. This product includes Watchdog Timer This product features a high-precision 10 bit, ensuring accurate data conversion. This product utilizes SRAM, providing fast and efficient data storage. The EEPROM Data-ROM-Type ensures non-volatile memory storage. This product features a 1 x 5 bit of 8 x 12 bit.

PIC16F18875-E/MV Image

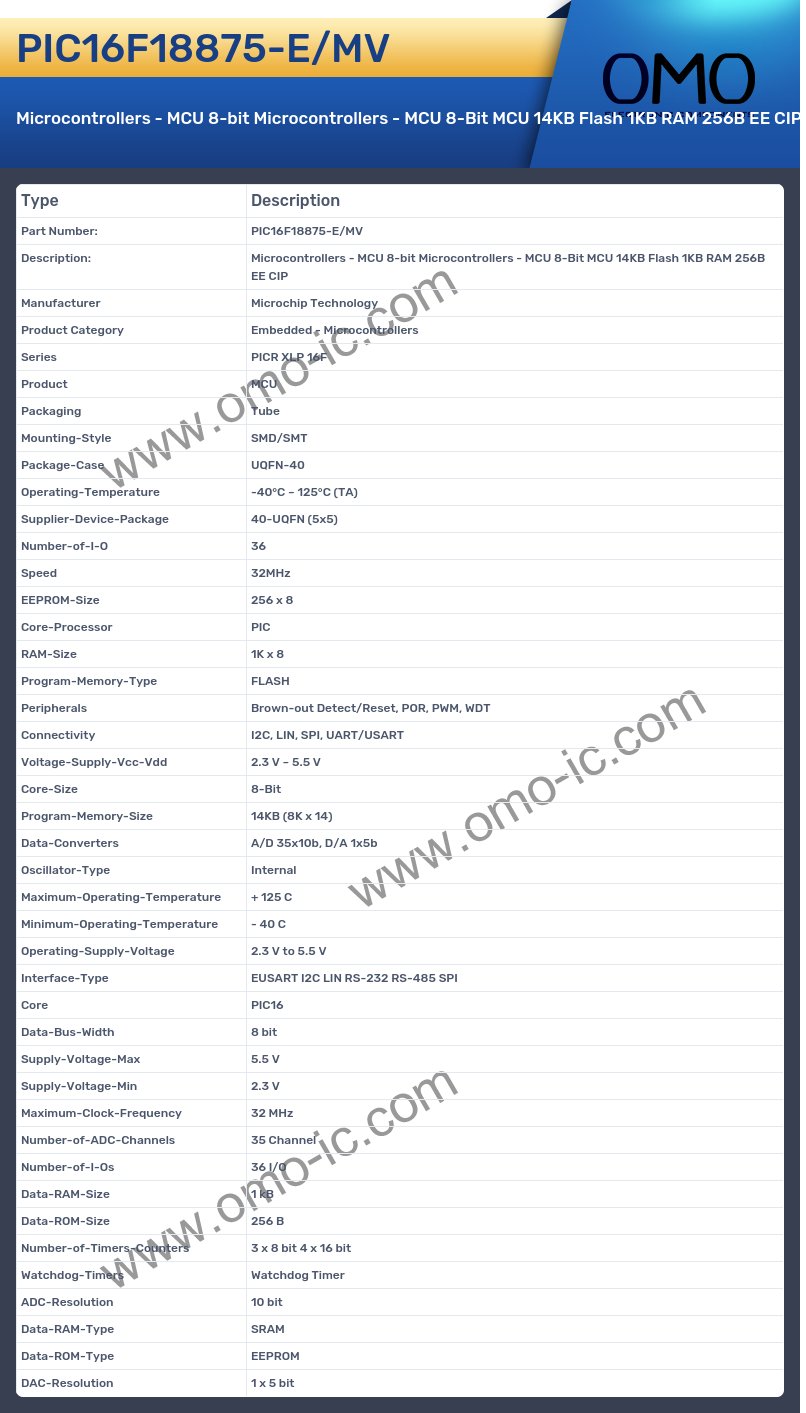

PIC16F18875-E/MV Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR XLP 16F
• Product MCU
• Packaging Tube
• Mounting-Style SMD/SMT
• Package-Case UQFN-40
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 40-UQFN (5x5)
• Number-of-I-O 36
• Speed 32MHz
• EEPROM-Size 256 x 8
• Core-Processor PIC
• RAM-Size 1K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, LIN, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 2.3 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 14KB (8K x 14)
• Data-Converters A/D 35x10b, D/A 1x5b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.3 V to 5.5 V
• Interface-Type EUSART I2C LIN RS-232 RS-485 SPI
• Core PIC16
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.3 V
• Maximum-Clock-Frequency 32 MHz
• Number-of-ADC-Channels 35 Channel
• Number-of-I-Os 36 I/O
• Data-RAM-Size 1 kB
• Data-ROM-Size 256 B
• Number-of-Timers-Counters 3 x 8 bit 4 x 16 bit
• Watchdog-Timers Watchdog Timer
• ADC-Resolution 10 bit
• Data-RAM-Type SRAM
• Data-ROM-Type EEPROM
• DAC-Resolution 1 x 5 bit
