PIC12LC508A-04/SM Overview

Product belongs to the PICR 12C series. This product is categorized as MCU Tube Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: 0°C ~ 70°C (TA) Supplier device package: 8-SOIJ This product has 5 I/O ports for versatile connectivity. Operating frequency: 4MHz Program memory type: OTP - interface Supply Voltage: 2.5 V ~ 5.5 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 2.5 V to 5.5 V supply voltage for reliable performance. Processor Core: PIC This product is powered by the PIC12F Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 5.5 V Minimum supply voltage is 2.5 V Maximum clock frequency of 4 MHz This product has 5 I/O connections. This product has a 25 B data RAM size, providing ample storage for complex applications. This product features 8 Timer number of timers and counters. This product includes Watchdog Timer This product features a high-precision No ADC, ensuring accurate data conversion. The EEPROM Data-ROM-Type ensures non-volatile memory storage.

PIC12LC508A-04/SM Image

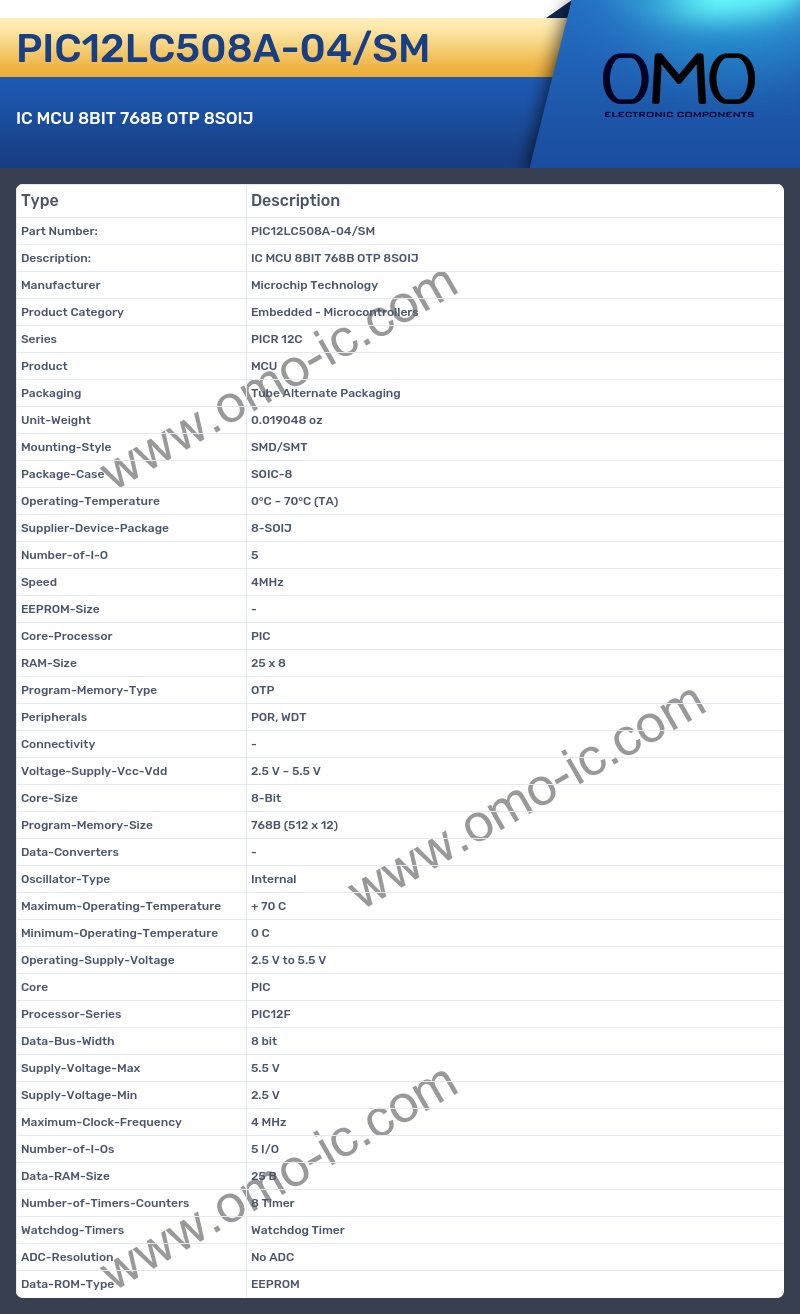

PIC12LC508A-04/SM Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 12C
• Product MCU
• Packaging Tube Alternate Packaging
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature 0°C ~ 70°C (TA)
• Supplier-Device-Package 8-SOIJ
• Number-of-I-O 5
• Speed 4MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 25 x 8
• Program-Memory-Type OTP
• Peripherals POR, WDT
• Connectivity -
• Voltage-Supply-Vcc-Vdd 2.5 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 768B (512 x 12)
• Data-Converters -
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 2.5 V to 5.5 V
• Core PIC
• Processor-Series PIC12F
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.5 V
• Maximum-Clock-Frequency 4 MHz
• Number-of-I-Os 5 I/O
• Data-RAM-Size 25 B
• Number-of-Timers-Counters 8 Timer
• Watchdog-Timers Watchdog Timer
• ADC-Resolution No ADC
• Data-ROM-Type EEPROM
