PD57018-E

PD57018-E Overview

Product belongs to the PD57018-E series. Type: RF Power MOSFET Tube is the packaging method for this product SMD/SMT Mounting-Style PowerSO-10RF (Formed Lead) Si is the technology used. The device offers a 16.5 dB at 945 MHz of 26dB. Power-off control: 31.7 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C The operating frequency is 1 GHz. This product's +/- 20 V. The ID of continuous drain current is 2.5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 65 V. The 760 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. This product features a 1 S of 500 S for high performance.

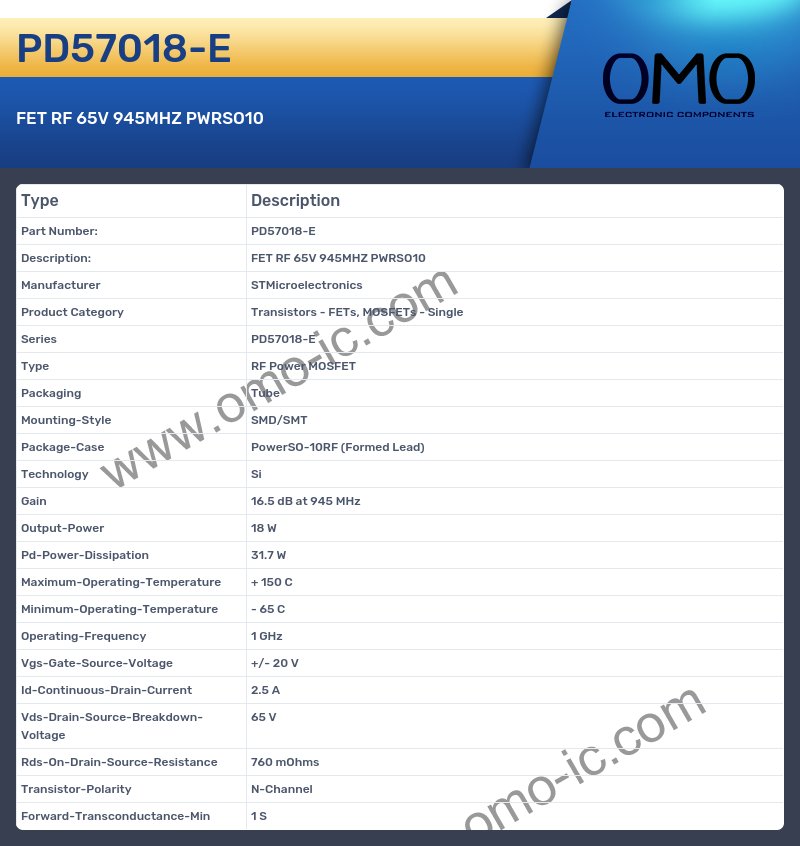

PD57018-E Image

PD57018-E Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - FETs, MOSFETs - Single
• Series PD57018-E
• Type RF Power MOSFET
• Packaging Tube
• Mounting-Style SMD/SMT
• Package-Case PowerSO-10RF (Formed Lead)
• Technology Si
• Gain 16.5 dB at 945 MHz
• Output-Power 18 W
• Pd-Power-Dissipation 31.7 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Operating-Frequency 1 GHz
• Vgs-Gate-Source-Voltage +/- 20 V
• Id-Continuous-Drain-Current 2.5 A
• Vds-Drain-Source-Breakdown-Voltage 65 V
• Rds-On-Drain-Source-Resistance 760 mOhms
• Transistor-Polarity N-Channel
• Forward-Transconductance-Min 1 S
