PD55015-E Overview

Product belongs to the PD55015-E series. Type: RF Power MOSFET Tube is the packaging method for this product SMD/SMT Mounting-Style PowerSO-10RF (Formed Lead) Si is the technology used. The device offers a 14 dB at 500 MHz of 26dB. Power-off control: 73 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C The operating frequency is 1 GHz. This product's +/- 20 V. The ID of continuous drain current is 5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 40 V. The transistor polarity is N-Channel. This product features a 2.5 S of 500 S for high performance.

PD55015-E Image

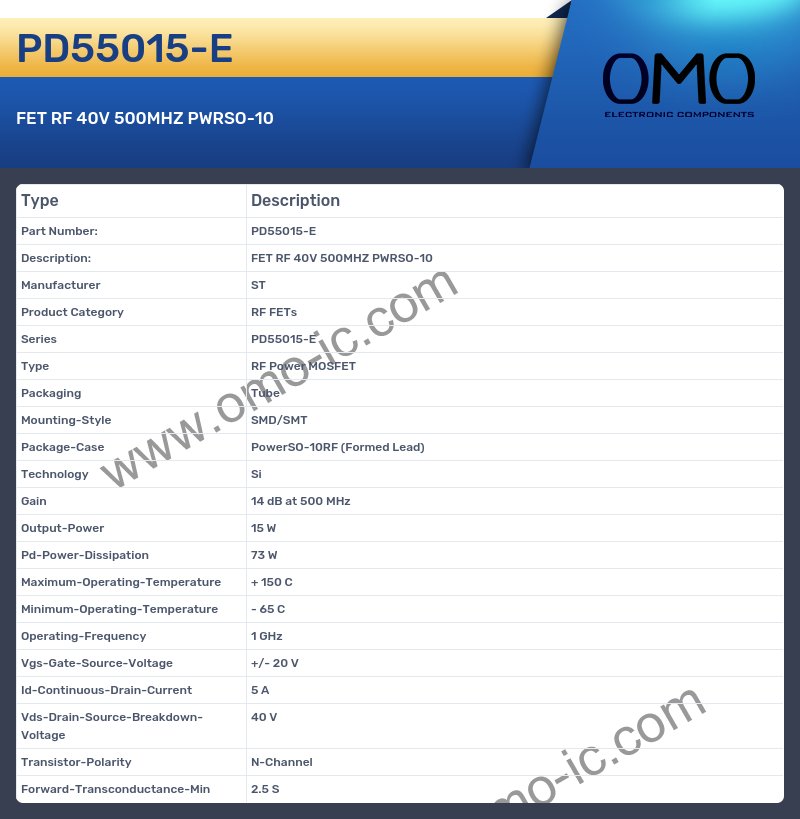

PD55015-E Specifications

• Manufacturer ST
• Product Category RF FETs
• Series PD55015-E
• Type RF Power MOSFET
• Packaging Tube
• Mounting-Style SMD/SMT
• Package-Case PowerSO-10RF (Formed Lead)
• Technology Si
• Gain 14 dB at 500 MHz
• Output-Power 15 W
• Pd-Power-Dissipation 73 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Operating-Frequency 1 GHz
• Vgs-Gate-Source-Voltage +/- 20 V
• Id-Continuous-Drain-Current 5 A
• Vds-Drain-Source-Breakdown-Voltage 40 V
• Transistor-Polarity N-Channel
• Forward-Transconductance-Min 2.5 S
