PCA9538DW

PCA9538DW Overview

Product belongs to the PCA9538 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.014829 oz SMD/SMT Mounting-Style SOIC-16 Wide Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: Push-Pull Interface: I2C, SMBus Voltage Supply Range: 2.3 V ~ 5.5 V Supplier device package: 16-SOIC This product has 8 I/O ports for versatile connectivity. The product features an Yes output. 400kHz is 26GHz. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.3 V to 5.5 V supply voltage for reliable performance. I2C Serial SMBus interface type PCA9538 logic type Maximum clock frequency of 400 kHz This product has 8 I/O connections.

PCA9538DW Image

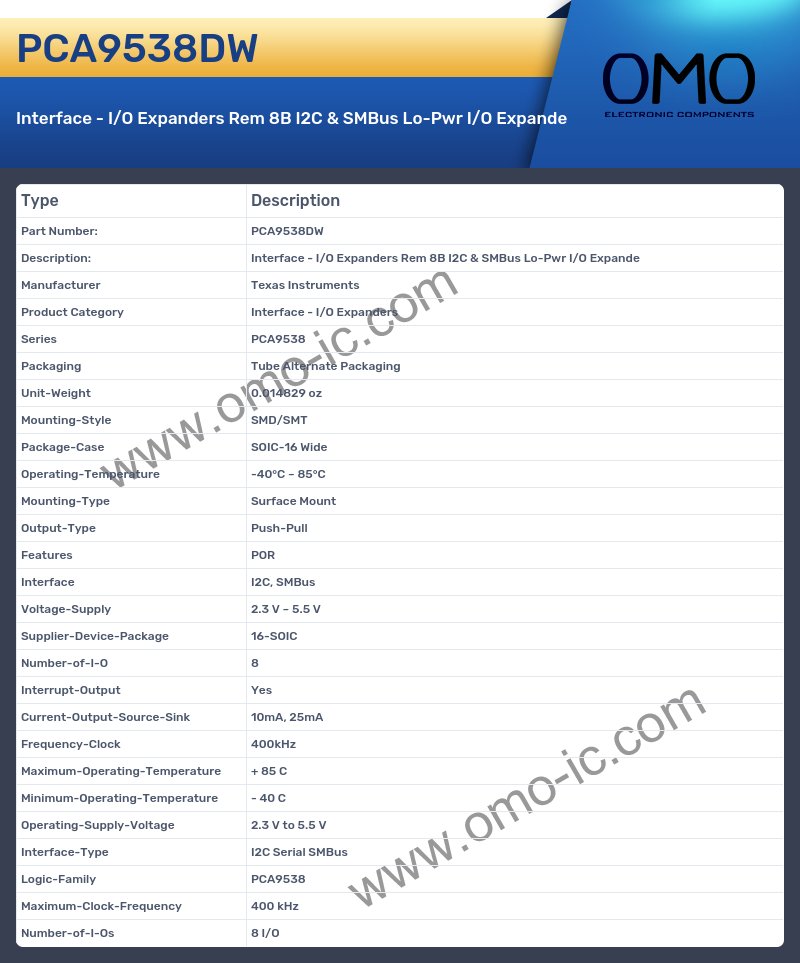

PCA9538DW Specifications

• Manufacturer Texas Instruments
• Product Category Interface - I/O Expanders
• Series PCA9538
• Packaging Tube Alternate Packaging
• Unit-Weight 0.014829 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16 Wide
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Features POR
• Interface I2C, SMBus
• Voltage-Supply 2.3 V ~ 5.5 V
• Supplier-Device-Package 16-SOIC
• Number-of-I-O 8
• Interrupt-Output Yes
• Current-Output-Source-Sink 10mA, 25mA
• Frequency-Clock 400kHz
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.3 V to 5.5 V
• Interface-Type I2C Serial SMBus
• Logic-Family PCA9538
• Maximum-Clock-Frequency 400 kHz
• Number-of-I-Os 8 I/O
