OP77EZ

OP77EZ Overview

Product belongs to the OP77 series. This product is categorized as Precision Amplifiers Tube is the packaging method for this product Through Hole Mounting-Style Number of channels: 1 Channel Power-off control: No Shutdown Power-off control: 60 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C Maximum supply voltage of 18 V Minimum supply voltage is 3 V CDIP-8 Input bias current of 2 nA The 10 uV. The 0.7 uV/V. The 10.3 nV/sqrt Hz at +/- 15 V of this product is 110 nV/sqrt Hz. Gain in voltage per voltage: 5000 V/mV 141.58 dB voltage gain

OP77EZ Image

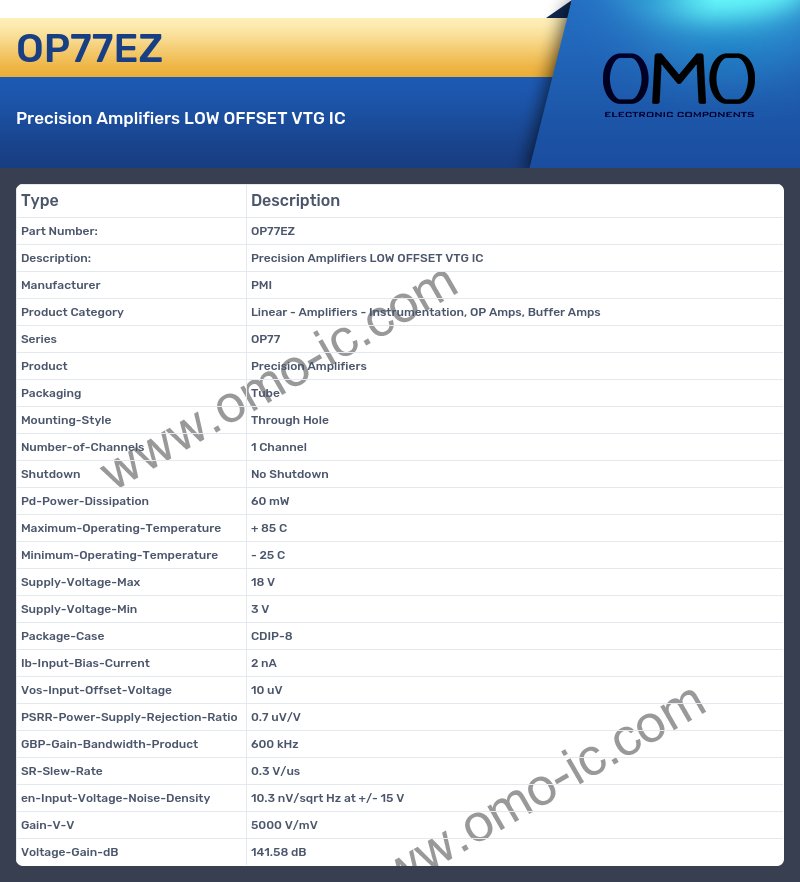

OP77EZ Specifications

• Manufacturer PMI
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• Series OP77
• Product Precision Amplifiers
• Packaging Tube
• Mounting-Style Through Hole
• Number-of-Channels 1 Channel
• Shutdown No Shutdown
• Pd-Power-Dissipation 60 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 3 V
• Package-Case CDIP-8
• Ib-Input-Bias-Current 2 nA
• Vos-Input-Offset-Voltage 10 uV
• PSRR-Power-Supply-Rejection-Ratio 0.7 uV/V
• GBP-Gain-Bandwidth-Product 600 kHz
• SR-Slew-Rate 0.3 V/us
• en-Input-Voltage-Noise-Density 10.3 nV/sqrt Hz at +/- 15 V
• Gain-V-V 5000 V/mV
• Voltage-Gain-dB 141.58 dB
