OP297EZ Overview

Product belongs to the OP297 series. This product is categorized as Precision Amplifiers Tube is the packaging method for this product Through Hole Mounting-Style Number of channels: 2 Channel Power-off control: No Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 525 uA is 92 nA. Maximum supply voltage of 20 V Minimum supply voltage is 2 V CDIP-8 Input bias current of 100 pA The 25 uV. The 130 dB. The CMRR-Common-Mode-Rejection-Ratio is 140 dB. The 20 nV/sqrt Hz at +/- 15 V of this product is 110 nV/sqrt Hz. Gain in voltage per voltage: 2000 V/mV 132.04 dB voltage gain

OP297EZ Image

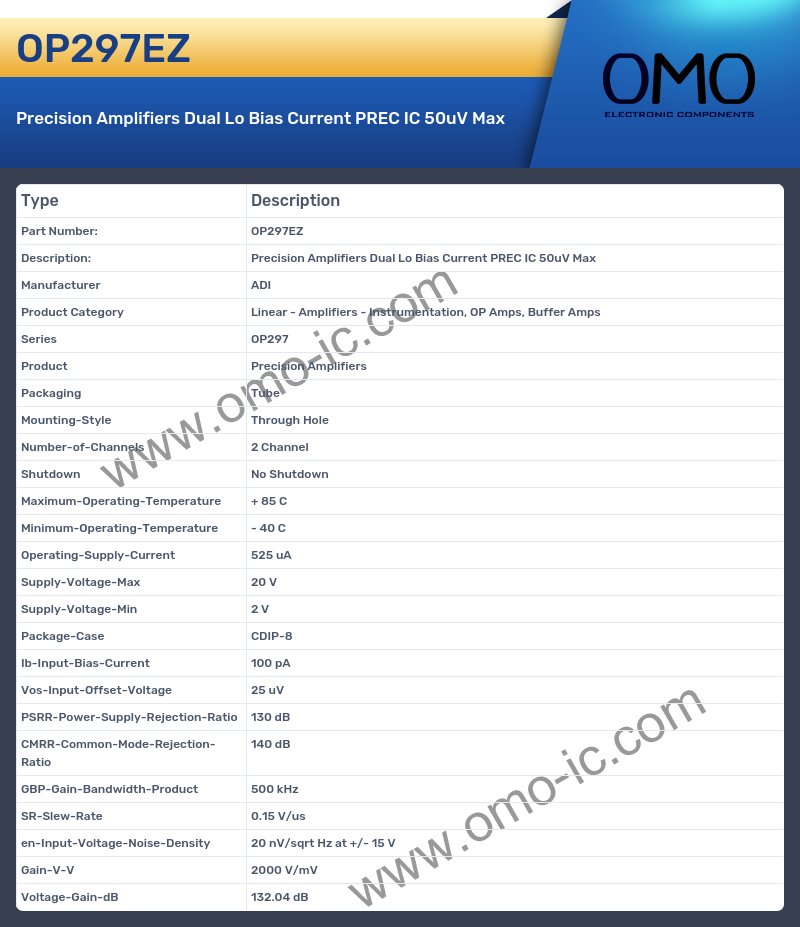

OP297EZ Specifications

• Manufacturer ADI
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• Series OP297
• Product Precision Amplifiers
• Packaging Tube
• Mounting-Style Through Hole
• Number-of-Channels 2 Channel
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 525 uA
• Supply-Voltage-Max 20 V
• Supply-Voltage-Min 2 V
• Package-Case CDIP-8
• Ib-Input-Bias-Current 100 pA
• Vos-Input-Offset-Voltage 25 uV
• PSRR-Power-Supply-Rejection-Ratio 130 dB
• CMRR-Common-Mode-Rejection-Ratio 140 dB
• GBP-Gain-Bandwidth-Product 500 kHz
• SR-Slew-Rate 0.15 V/us
• en-Input-Voltage-Noise-Density 20 nV/sqrt Hz at +/- 15 V
• Gain-V-V 2000 V/mV
• Voltage-Gain-dB 132.04 dB
