MSP430F2254IDAR

MSP430F2254IDAR Overview

Product belongs to the MSP430F2xx series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.007189 oz SMD/SMT Mounting-Style Trade name: MSP430. TSSOP-38 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: 38-TSSOP This product has 32 I/O ports for versatile connectivity. Operating frequency: 16MHz Program memory type: FLASH I2C, IrDA, LIN, SCI, SPI, UART/USART interface Supply Voltage: 1.8 V ~ 3.6 V 16-Bit architecture Internal oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 3.6 V supply voltage for reliable performance. USCI (UART IrDA LIN SPI and I2C SPI) interface type Processor Core: MSP430 This product is powered by the 2 Series Processor-Series, providing high performance and efficiency. This product is also known as MSP430A150IDAR and can be referred to by either part number. The 16 bit. Maximum clock frequency of 16 MHz Number of ADC Channels: 12 This product has 32 I/O connections. This product has a 512 B data RAM size, providing ample storage for complex applications. This product features 3 Timer number of timers and counters. This product features a high-precision 10 bit, ensuring accurate data conversion.

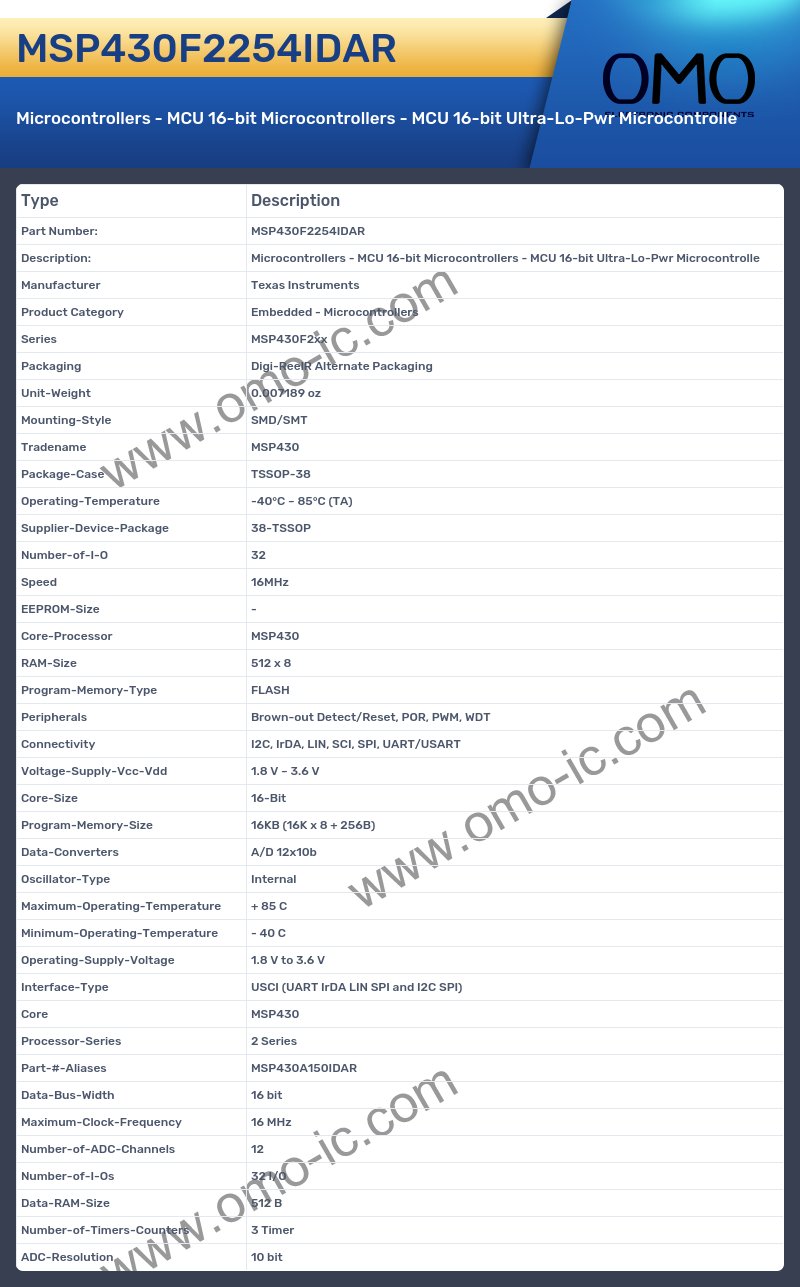

MSP430F2254IDAR Image

MSP430F2254IDAR Specifications

• Manufacturer Texas Instruments
• Product Category Embedded - Microcontrollers
• Series MSP430F2xx
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.007189 oz
• Mounting-Style SMD/SMT
• Tradename MSP430
• Package-Case TSSOP-38
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package 38-TSSOP
• Number-of-I-O 32
• Speed 16MHz
• EEPROM-Size -
• Core-Processor MSP430
• RAM-Size 512 x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, IrDA, LIN, SCI, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 1.8 V ~ 3.6 V
• Core-Size 16-Bit
• Program-Memory-Size 16KB (16K x 8 + 256B)
• Data-Converters A/D 12x10b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 3.6 V
• Interface-Type USCI (UART IrDA LIN SPI and I2C SPI)
• Core MSP430
• Processor-Series 2 Series
• Part-#-Aliases MSP430A150IDAR
• Data-Bus-Width 16 bit
• Maximum-Clock-Frequency 16 MHz
• Number-of-ADC-Channels 12
• Number-of-I-Os 32 I/O
• Data-RAM-Size 512 B
• Number-of-Timers-Counters 3 Timer
• ADC-Resolution 10 bit
