MCP6569-E/ST Overview

Product belongs to the - series. This product is categorized as Analog Comparators Type: General Purpose Tube Alternate Packaging is the packaging method for this product Weight of 0.004949 oz SMD/SMT Mounting-Style TSSOP-14 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: CMOS, Open-Drain Number of channels: 4 Channel Supplier device package: 14-TSSOP Voltage supply range: 1.8 V ~ 5.5 V 4 element 130μA maximum quiescent current. Maximum propagation delay: 80ns Hysteresis value of 5mV Power-off control: No Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Maximum supply voltage of 5.5 V Minimum supply voltage is 1.8 V Input bias current of 1 pA The 10 mV. The 70 dB. The CMRR-Common-Mode-Rejection-Ratio is 66 dB.

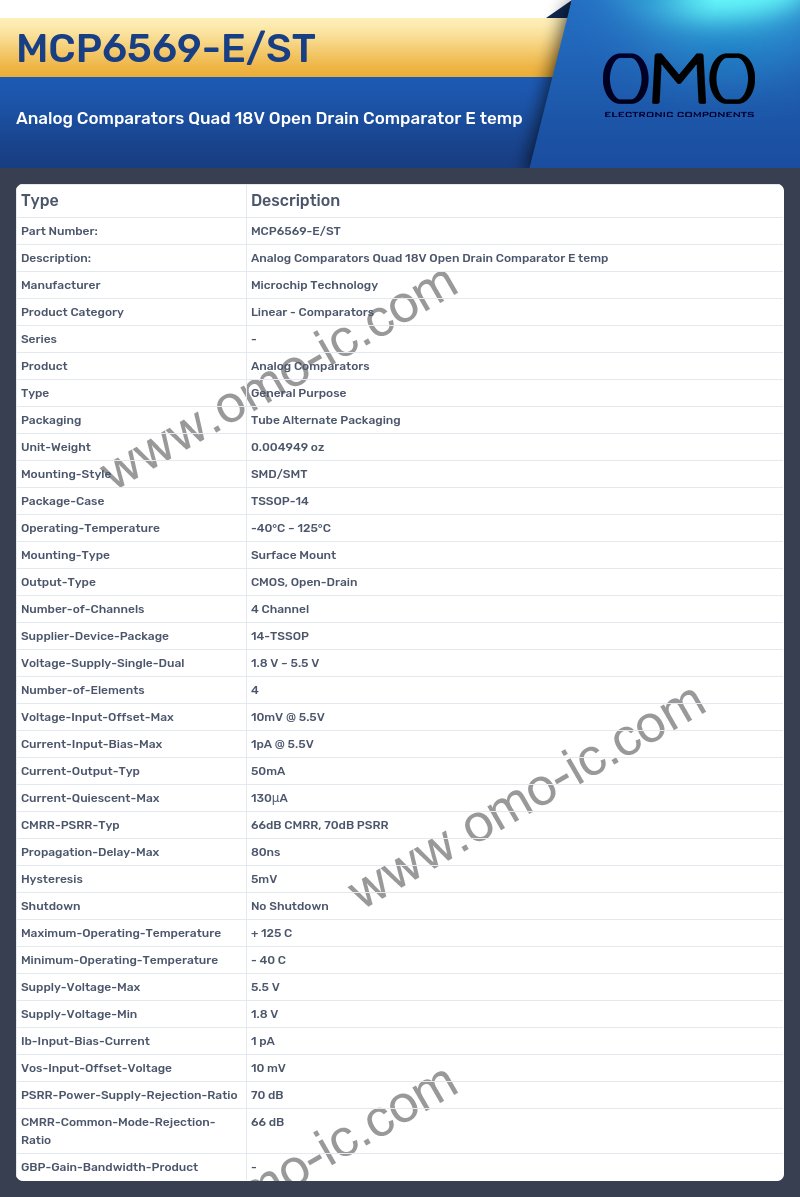

MCP6569-E/ST Image

MCP6569-E/ST Specifications

• Manufacturer Microchip Technology
• Product Category Linear - Comparators
• Series -
• Product Analog Comparators
• Type General Purpose
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004949 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-14
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type CMOS, Open-Drain
• Number-of-Channels 4 Channel
• Supplier-Device-Package 14-TSSOP
• Voltage-Supply-Single-Dual 1.8 V ~ 5.5 V
• Number-of-Elements 4
• Voltage-Input-Offset-Max 10mV @ 5.5V
• Current-Input-Bias-Max 1pA @ 5.5V
• Current-Output-Typ 50mA
• Current-Quiescent-Max 130μA
• CMRR-PSRR-Typ 66dB CMRR, 70dB PSRR
• Propagation-Delay-Max 80ns
• Hysteresis 5mV
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.8 V
• Ib-Input-Bias-Current 1 pA
• Vos-Input-Offset-Voltage 10 mV
• PSRR-Power-Supply-Rejection-Ratio 70 dB
• CMRR-Common-Mode-Rejection-Ratio 66 dB
• GBP-Gain-Bandwidth-Product -
