MCP4461T-502E/ST

MCP4461T-502E/ST Overview

Product belongs to the - series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.006737 oz SMD/SMT Mounting-Style TSSOP-20 Operational temperature range: -40°C ~ 125°C Interface: I2C Voltage Supply Range: 2.7 V ~ 5.5 V Supplier device package: 20-TSSOP 4 is 8. Taper: Linear Configuration Potentiometer 257 taps Resistance-Ohms: 5k Non-Volatile memory type Tolerance of - The 150 ppm/°C. 75 Ohms 150 PPM / C is 30 parts per million per degree Celsius. Resistance: 5 kOhms Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 2.7 V to 5.5 V supply voltage for reliable performance. This product is an Quad I2C Digital POT with Nonvolatile Memory. 600 uA is 92 nA. Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Quad number of POTs The 257. Non Volatile wiper memory This product features a I2C.

MCP4461T-502E/ST Image

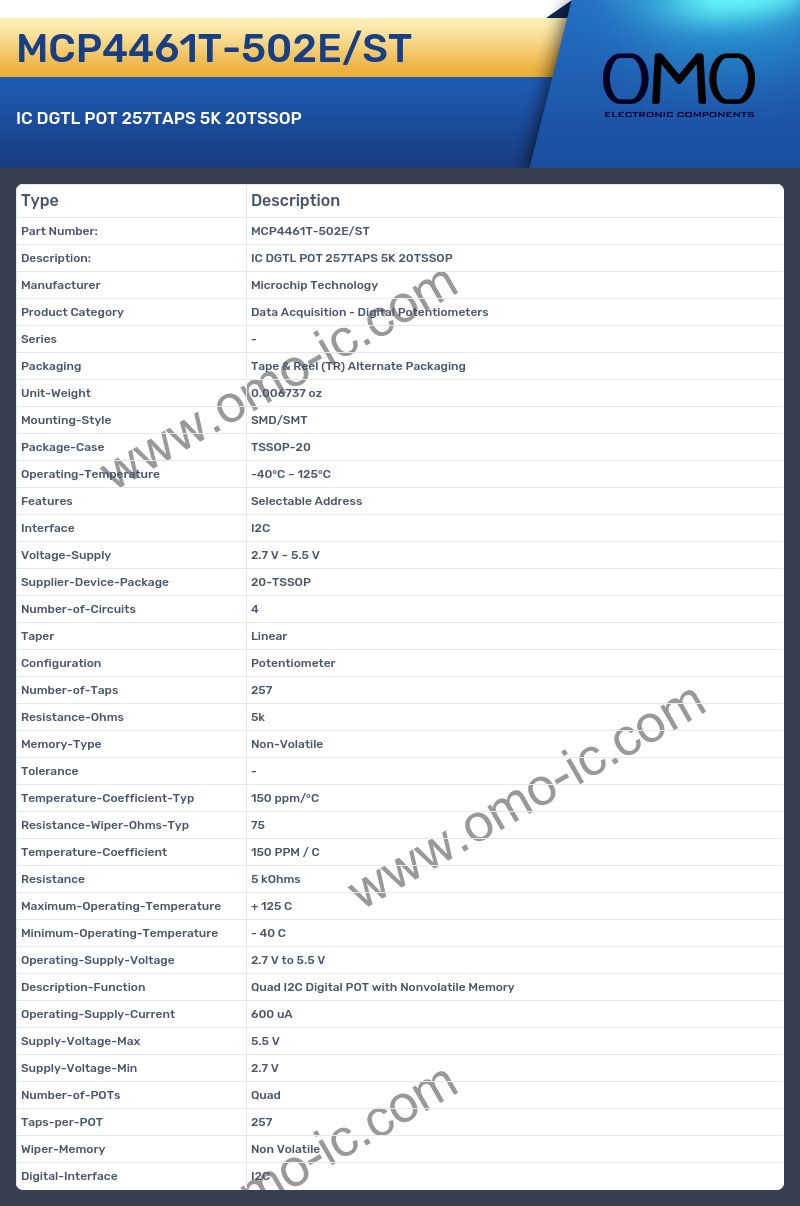

MCP4461T-502E/ST Specifications

• Manufacturer Microchip Technology
• Product Category Data Acquisition - Digital Potentiometers
• Series -
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.006737 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-20
• Operating-Temperature -40°C ~ 125°C
• Features Selectable Address
• Interface I2C
• Voltage-Supply 2.7 V ~ 5.5 V
• Supplier-Device-Package 20-TSSOP
• Number-of-Circuits 4
• Taper Linear
• Configuration Potentiometer
• Number-of-Taps 257
• Resistance-Ohms 5k
• Memory-Type Non-Volatile
• Tolerance -
• Temperature-Coefficient-Typ 150 ppm/°C
• Resistance-Wiper-Ohms-Typ 75
• Temperature-Coefficient 150 PPM / C
• Resistance 5 kOhms
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.7 V to 5.5 V
• Description-Function Quad I2C Digital POT with Nonvolatile Memory
• Operating-Supply-Current 600 uA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Number-of-POTs Quad
• Taps-per-POT 257
• Wiper-Memory Non Volatile
• Digital-Interface I2C
