MCP1501-40E/SN

MCP1501-40E/SN Overview

Product belongs to the - series. Tube is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-SOIC Tolerance of ±0.09% 4.3 V ~ 5.5 V voltage input This product has a 550μA of 200μA. Series is the reference type. Minimum fixed output voltage is 4.096V . 50ppm/°C is 30 parts per million per degree Celsius. 0.1μVp-p of noise in 0#1Hz-to-10Hz range Power-off control: Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 4.096 V 140 uA is 92 nA. Input Voltage Range: 4.3 V to 5.5 V Maximum supply current: 550 uA Initial accuracy: 0.08 % Maximum input voltage of 5.5 V for Series VREF. Maximum shunt current of 20 mA Maximum output voltage is 4.0995 V .

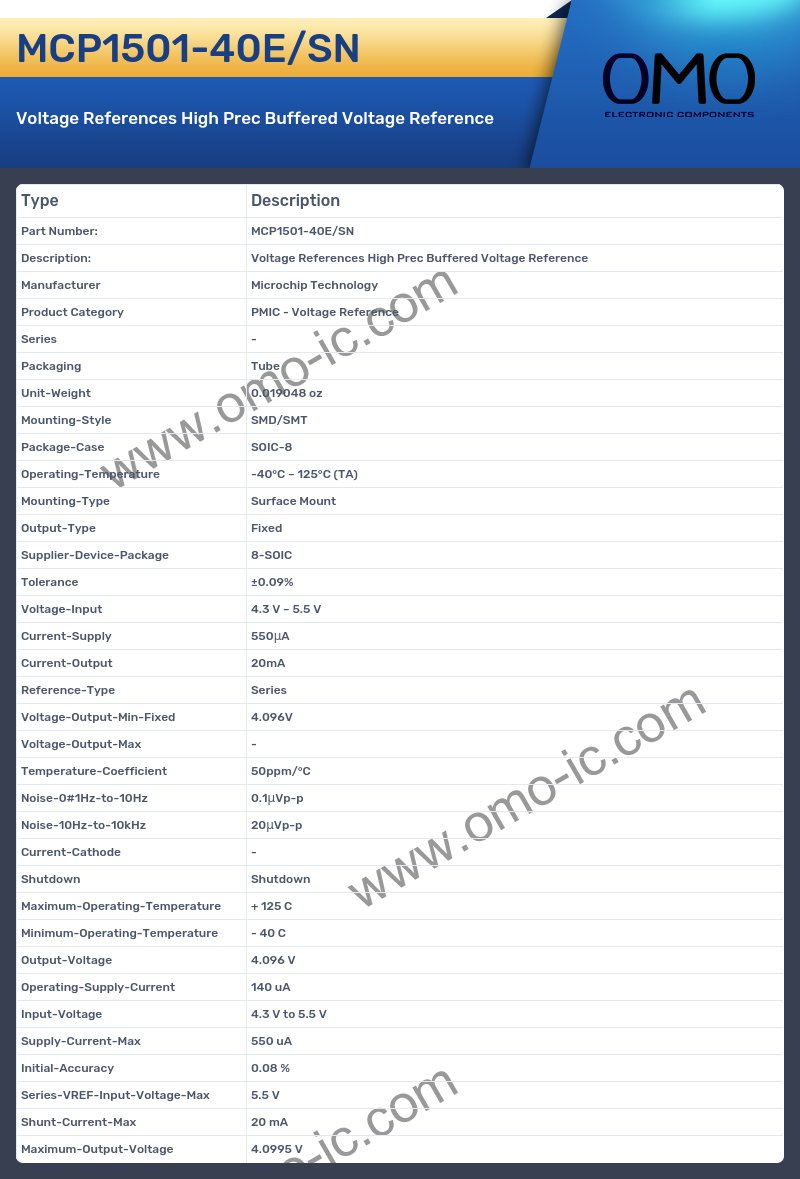

MCP1501-40E/SN Image

MCP1501-40E/SN Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Reference
• Series -
• Packaging Tube
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-SOIC
• Tolerance ±0.09%
• Voltage-Input 4.3 V ~ 5.5 V
• Current-Supply 550μA
• Current-Output 20mA
• Reference-Type Series
• Voltage-Output-Min-Fixed 4.096V
• Voltage-Output-Max -
• Temperature-Coefficient 50ppm/°C
• Noise-0#1Hz-to-10Hz 0.1μVp-p
• Noise-10Hz-to-10kHz 20μVp-p
• Current-Cathode -
• Shutdown Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 4.096 V
• Operating-Supply-Current 140 uA
• Input-Voltage 4.3 V to 5.5 V
• Supply-Current-Max 550 uA
• Initial-Accuracy 0.08 %
• Series-VREF-Input-Voltage-Max 5.5 V
• Shunt-Current-Max 20 mA
• Maximum-Output-Voltage 4.0995 V
