MCP121T-270E/TT

MCP121T-270E/TT Overview

Product belongs to the MCP121 series. Type: Simple Reset/Power-On Reset Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.050717 oz SMD/SMT Mounting-Style SOT-23-3 Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Output-Type: Active Low Open Drain Supplier device package: SOT-23-3 The Open Drain or Open Collector. This product's Active Low. This product has 1 monitored voltages. The reset timeout for this product is 80 ms Minimum. This product's 2.63V. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 20 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 5.5 V Minimum supply voltage is 1 V This product includes No Watchdog This product's 2.63 V is 2.32 V. This product can only 1 Input at a time. This product features a No Manual Reset function that allows for manual reset. The 2.67 V is 2.35 V. 2.591 V is set to 2.29 V.

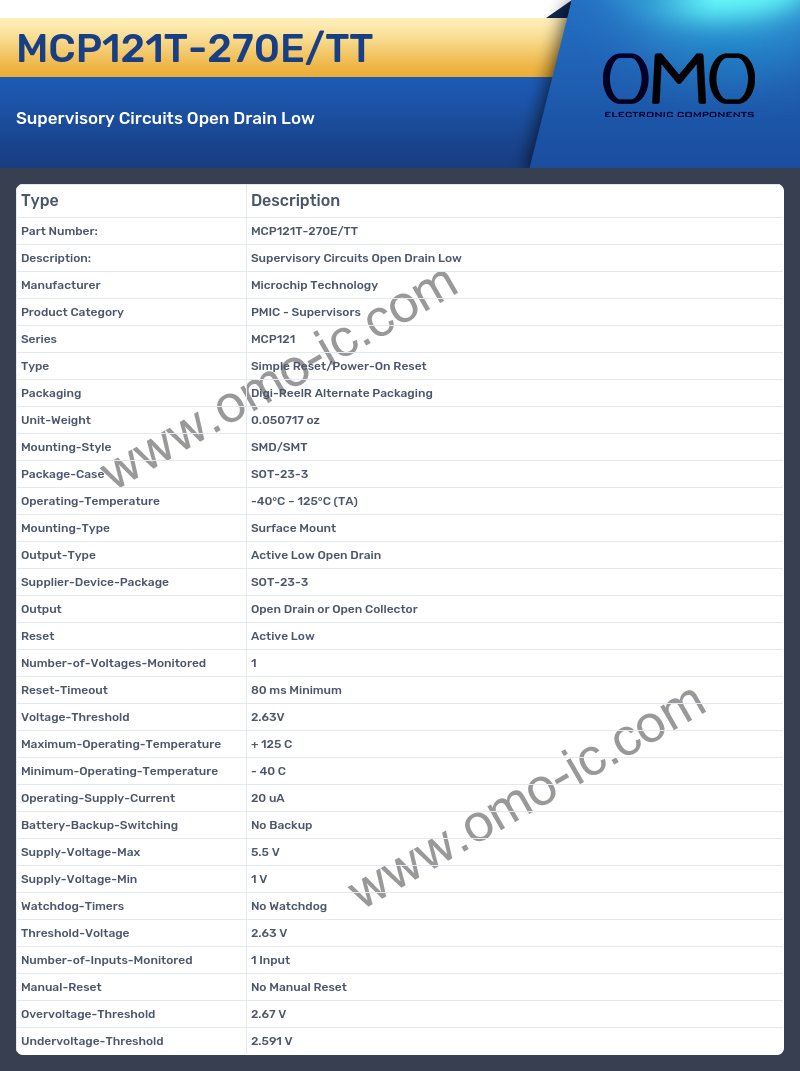

MCP121T-270E/TT Image

MCP121T-270E/TT Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Supervisors
• Series MCP121
• Type Simple Reset/Power-On Reset
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.050717 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-3
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Output-Type Active Low Open Drain
• Supplier-Device-Package SOT-23-3
• Output Open Drain or Open Collector
• Reset Active Low
• Number-of-Voltages-Monitored 1
• Reset-Timeout 80 ms Minimum
• Voltage-Threshold 2.63V
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 20 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage 2.63 V
• Number-of-Inputs-Monitored 1 Input
• Manual-Reset No Manual Reset
• Overvoltage-Threshold 2.67 V
• Undervoltage-Threshold 2.591 V
