LP3965ES-ADJ

LP3965ES-ADJ Overview

Product belongs to the LP3965 series. This product is categorized as Fast Ultra Low Dropout Linear Regulator Type: Ultra Low Dropout Voltage Tube is the packaging method for this product Weight of 0.056128 oz SMD/SMT Mounting-Style TO-263-5 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: DDPAK/TO-263-5 Tolerance of +/- 3 % 2.5 V ~ 7 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.216 V ~ 5.1 V Positive Adjustable regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.216 V to 5.1 V Maximum Input Voltage: 7 V Output current: 1.5 A The product's 2.5 V is 5.1 V. Load regulation is 0.04 %. The voltage regulation accuracy of this product is +/- 1.5 %. Input bias current of 4 mA The 0.038 V at 150 mA 0.38 V at 1500 mA. The maximum 0.045 V at 150 mA 0.45 V at 1500 mA is 360 mV. This product's 0.02 % is 0.01 %/V. The product's 60 dB is -20 dB.

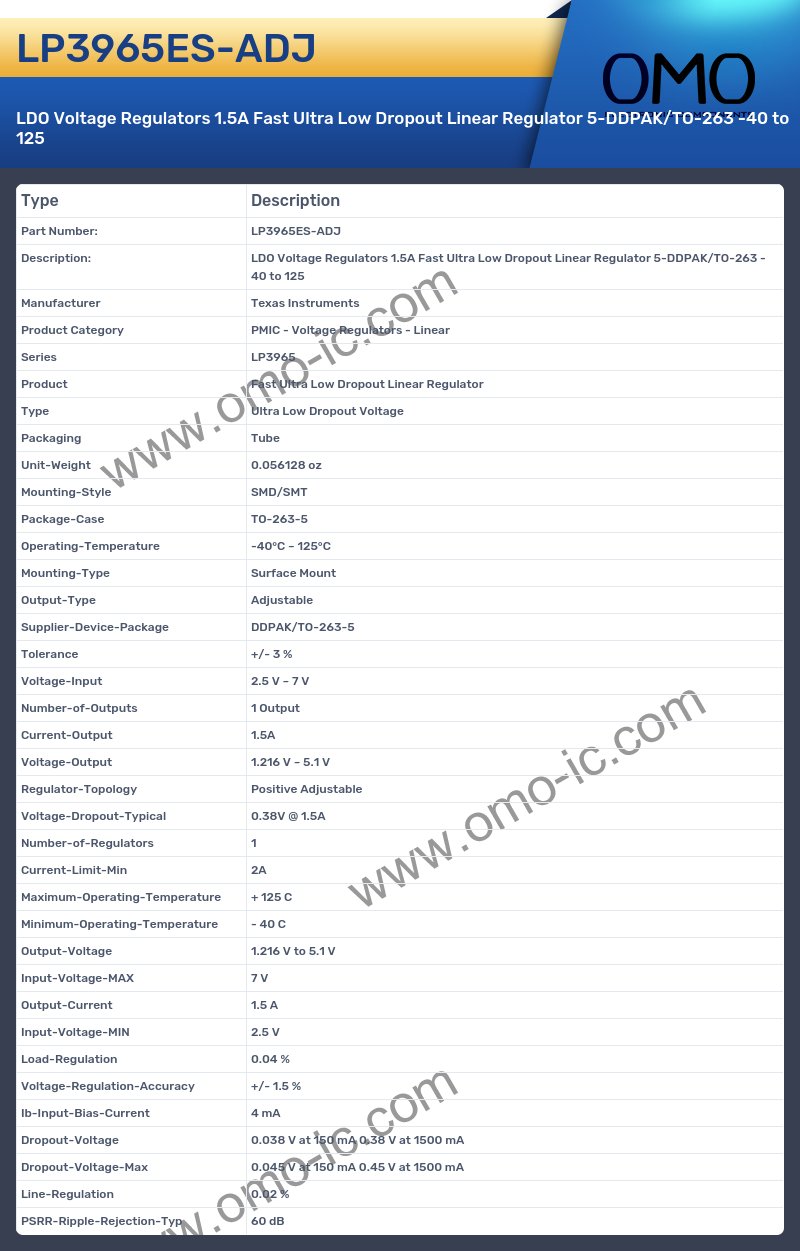

LP3965ES-ADJ Image

LP3965ES-ADJ Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series LP3965
• Product Fast Ultra Low Dropout Linear Regulator
• Type Ultra Low Dropout Voltage
• Packaging Tube
• Unit-Weight 0.056128 oz
• Mounting-Style SMD/SMT
• Package-Case TO-263-5
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package DDPAK/TO-263-5
• Tolerance +/- 3 %
• Voltage-Input 2.5 V ~ 7 V
• Number-of-Outputs 1 Output
• Current-Output 1.5A
• Voltage-Output 1.216 V ~ 5.1 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.38V @ 1.5A
• Number-of-Regulators 1
• Current-Limit-Min 2A
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.216 V to 5.1 V
• Input-Voltage-MAX 7 V
• Output-Current 1.5 A
• Input-Voltage-MIN 2.5 V
• Load-Regulation 0.04 %
• Voltage-Regulation-Accuracy +/- 1.5 %
• Ib-Input-Bias-Current 4 mA
• Dropout-Voltage 0.038 V at 150 mA 0.38 V at 1500 mA
• Dropout-Voltage-Max 0.045 V at 150 mA 0.45 V at 1500 mA
• Line-Regulation 0.02 %
• PSRR-Ripple-Rejection-Typ 60 dB
