LP2985AIM5-3.6

LP2985AIM5-3.6 Overview

Product belongs to the LP2985-N series. Reel is the packaging method for this product Weight of 0.000557 oz SMD/SMT Mounting-Style Output-Type: Fixed Number-of-Outputs: 1 Output Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 3.6 V Maximum Input Voltage: 16 V Output current: 0.15 A The product's 2.5 V is 5.1 V. The voltage regulation accuracy of this product is +/- 2.5 %. SOT-23-5 Input bias current of 65 uA The 0.0001 V at 0 mA 0.007 V at 1 mA 0.04 V at 10 mA 0.12 V at 50 mA 0.28 V at 150 mA. The maximum 0.003 V at 0 mA 0.01 V at 1 mA 0.06 V at 10 mA 0.15 V at 50 mA 0.35 V at 150 mA is 360 mV. This product's 0.014 %/V is 0.01 %/V.

LP2985AIM5-3.6 Image

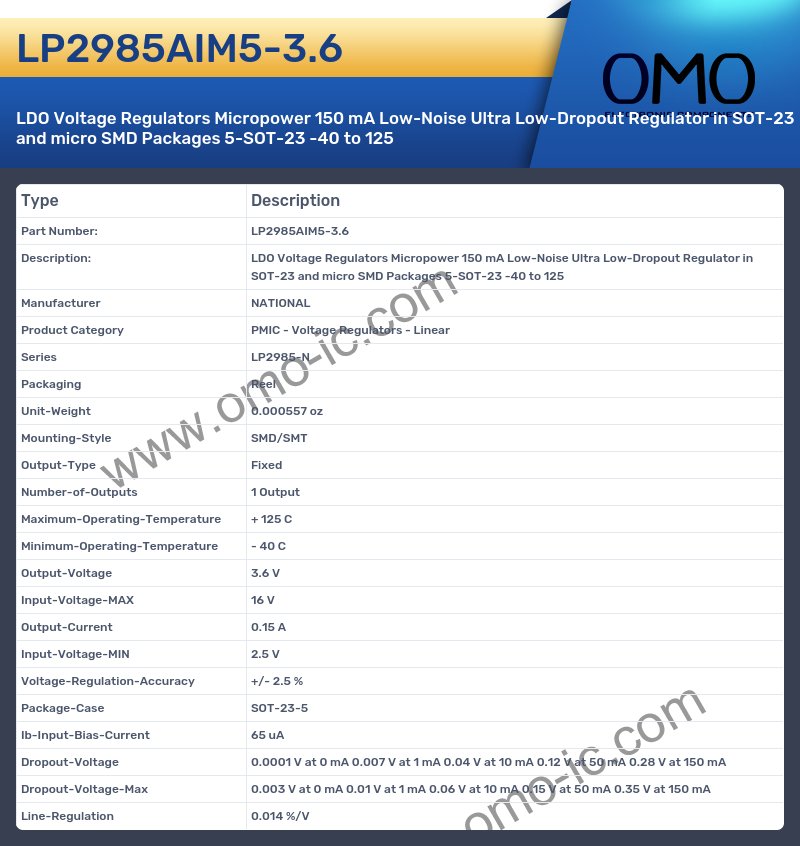

LP2985AIM5-3.6 Specifications

• Manufacturer NATIONAL
• Product Category PMIC - Voltage Regulators - Linear
• Series LP2985-N
• Packaging Reel
• Unit-Weight 0.000557 oz
• Mounting-Style SMD/SMT
• Output-Type Fixed
• Number-of-Outputs 1 Output
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 3.6 V
• Input-Voltage-MAX 16 V
• Output-Current 0.15 A
• Input-Voltage-MIN 2.5 V
• Voltage-Regulation-Accuracy +/- 2.5 %
• Package-Case SOT-23-5
• Ib-Input-Bias-Current 65 uA
• Dropout-Voltage 0.0001 V at 0 mA 0.007 V at 1 mA 0.04 V at 10 mA 0.12 V at 50 mA 0.28 V at 150 mA
• Dropout-Voltage-Max 0.003 V at 0 mA 0.01 V at 1 mA 0.06 V at 10 mA 0.15 V at 50 mA 0.35 V at 150 mA
• Line-Regulation 0.014 %/V
