LND01K1-G

LND01K1-G Overview

Product belongs to the LND01 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001058 oz SMD/SMT Mounting-Style SC-74A, SOT-753 Si is the technology used. Operational temperature range: -25°C ~ 125°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: SOT-23-5 Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 9V This product has an 46pF @ 5V value of 300pF @ 25V. This product's Depletion Mode. 330mA (Tj) continuous drain-ID current at 25°C; This product has an 1.4 Ohm @ 100mA, 0V of 12 Ohm @ 150mA, 0V. Power-off control: 360 mW Maximum operating temperature of + 125 C This product has a 6.4 ns of 16 ns. This product has a 11 ns of 16 ns. This product's 600 mV. The ID of continuous drain current is 330 mA. This product has a Vds-Drain-Source-Breakdown-Voltageof 9 V. The 1.4 Ohms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 1 ns This product has a 3.8 ns. This product operates in Depletion channel mode for optimal performance.

LND01K1-G Image

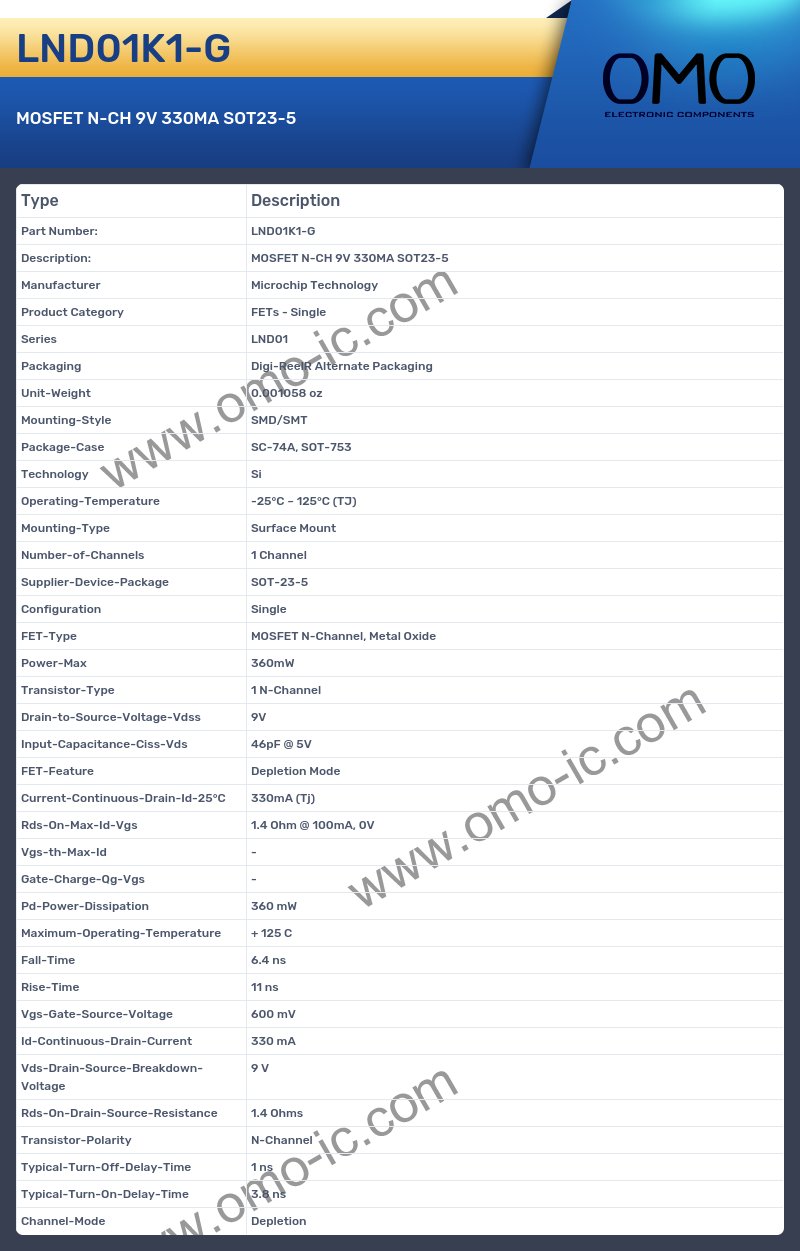

LND01K1-G Specifications

• Manufacturer Microchip Technology
• Product Category FETs - Single
• Series LND01
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001058 oz
• Mounting-Style SMD/SMT
• Package-Case SC-74A, SOT-753
• Technology Si
• Operating-Temperature -25°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Number-of-Channels 1 Channel
• Supplier-Device-Package SOT-23-5
• Configuration Single
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 360mW
• Transistor-Type 1 N-Channel
• Drain-to-Source-Voltage-Vdss 9V
• Input-Capacitance-Ciss-Vds 46pF @ 5V
• FET-Feature Depletion Mode
• Current-Continuous-Drain-Id-25°C 330mA (Tj)
• Rds-On-Max-Id-Vgs 1.4 Ohm @ 100mA, 0V
• Vgs-th-Max-Id -
• Gate-Charge-Qg-Vgs -
• Pd-Power-Dissipation 360 mW
• Maximum-Operating-Temperature + 125 C
• Fall-Time 6.4 ns
• Rise-Time 11 ns
• Vgs-Gate-Source-Voltage 600 mV
• Id-Continuous-Drain-Current 330 mA
• Vds-Drain-Source-Breakdown-Voltage 9 V
• Rds-On-Drain-Source-Resistance 1.4 Ohms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 1 ns
• Typical-Turn-On-Delay-Time 3.8 ns
• Channel-Mode Depletion
