LMC555CM

LMC555CM Overview

Product belongs to the LMC555 series. Type: 555 Type, Timer/Oscillator (Single) Tube Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 This product's 3MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Voltage Supply Range: 1.5 V ~ 15 V Supplier device package: 8-SOIC This product has a 150μA of 200μA. Power-off control: 740 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 50 uA is 92 nA. Maximum supply voltage of 15 V Minimum supply voltage is 1.5 V Maximum propagation delay: 100 ns (Typ) High-Level-Output-Current of 50 mA - 10 mA low-level output current 1 Timer Internal Timers

LMC555CM Image

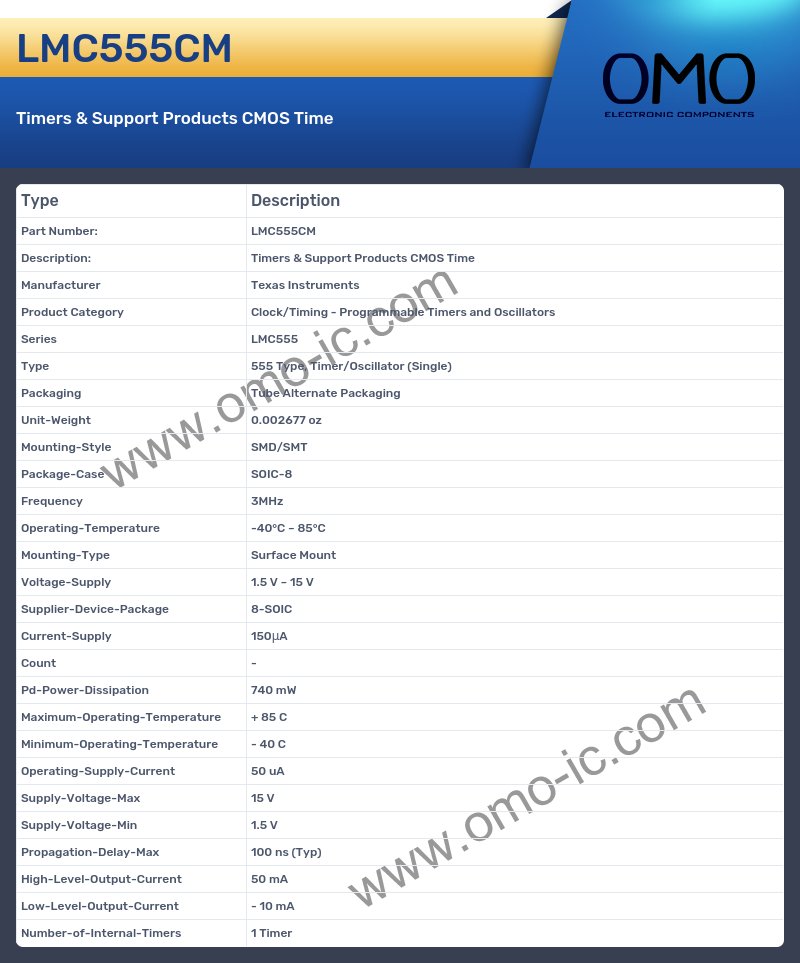

LMC555CM Specifications

• Manufacturer Texas Instruments
• Product Category Clock/Timing - Programmable Timers and Oscillators
• Series LMC555
• Type 555 Type, Timer/Oscillator (Single)
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Frequency 3MHz
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Voltage-Supply 1.5 V ~ 15 V
• Supplier-Device-Package 8-SOIC
• Current-Supply 150μA
• Count -
• Pd-Power-Dissipation 740 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 50 uA
• Supply-Voltage-Max 15 V
• Supply-Voltage-Min 1.5 V
• Propagation-Delay-Max 100 ns (Typ)
• High-Level-Output-Current 50 mA
• Low-Level-Output-Current - 10 mA
• Number-of-Internal-Timers 1 Timer
