LM2775DSGT

LM2775DSGT Overview

Product belongs to the LM2775 series. Type: Switched Capacitor 5V Boost Converter Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000384 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications WSON-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Fixed Product function is Step-Up. Supplier device package: 8-WSON (2x2) Number-of-Outputs: 1 Topology: Charge Pump feedback This product features 'Frequency-Switching' at 2MHz for optimal performance. The Positive. Minimum fixed output voltage is 5V . The value of No is included as a product attribute. The minimum input voltage is 2.7V. The 5.5V. Power-off control: Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 5 V 75 uA is 92 nA. Input Voltage Range: 2.7 V to 5.5 V Maximum Input Voltage: 5.5 V Output current: 200 mA Switching frequency is 2 MHz The product's 2.7 V is 5.1 V. The LM2775EVM. Minimum supply voltage is 2.7 V

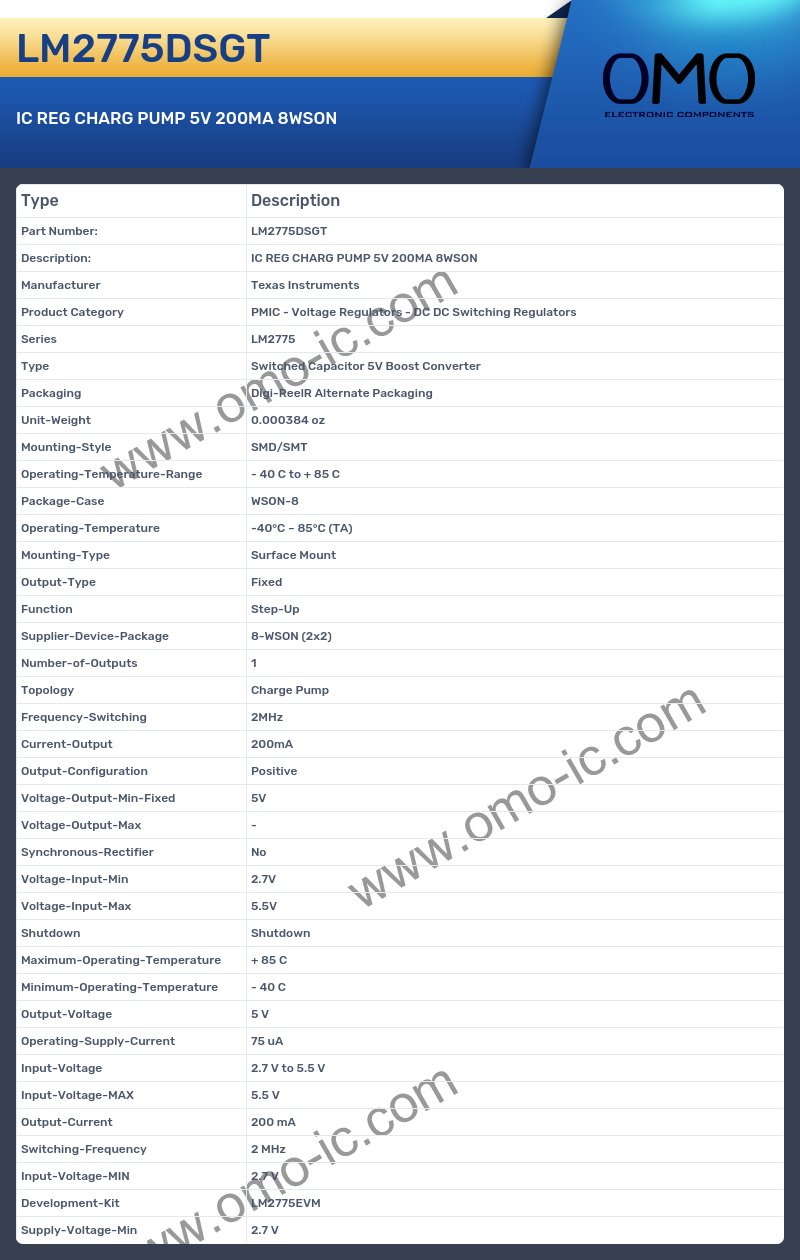

LM2775DSGT Image

LM2775DSGT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series LM2775
• Type Switched Capacitor 5V Boost Converter
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000384 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case WSON-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Function Step-Up
• Supplier-Device-Package 8-WSON (2x2)
• Number-of-Outputs 1
• Topology Charge Pump
• Frequency-Switching 2MHz
• Current-Output 200mA
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 5V
• Voltage-Output-Max -
• Synchronous-Rectifier No
• Voltage-Input-Min 2.7V
• Voltage-Input-Max 5.5V
• Shutdown Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 5 V
• Operating-Supply-Current 75 uA
• Input-Voltage 2.7 V to 5.5 V
• Input-Voltage-MAX 5.5 V
• Output-Current 200 mA
• Switching-Frequency 2 MHz
• Input-Voltage-MIN 2.7 V
• Development-Kit LM2775EVM
• Supply-Voltage-Min 2.7 V
