| Mfr. #: | LD1117V-DG |
|---|---|
| Fabricante: | STMicroelectronics |
| Descripción: | IC REG LIN POS ADJ 800MA TO220 |
| Ciclo vital: | Nuevo de este fabricante. |

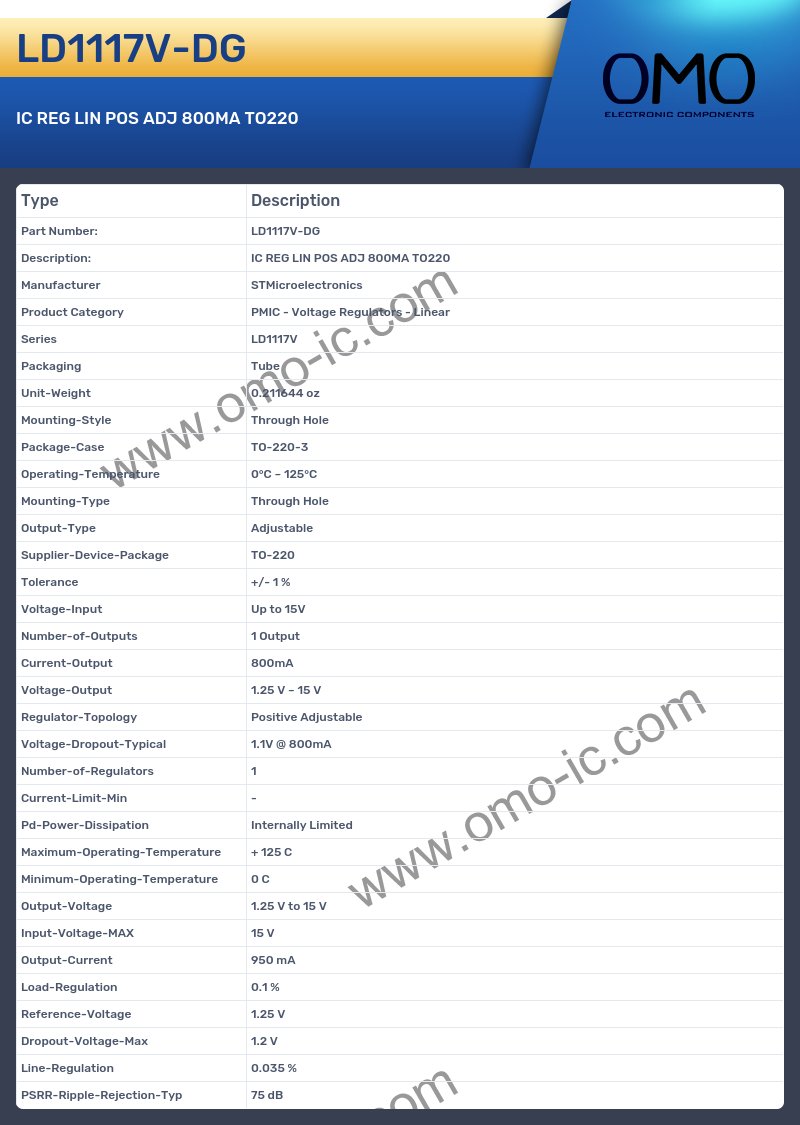

| Ficha de datos: | LD1117V-DG Ficha de datos |
Product belongs to the LD1117V series. Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 Operational temperature range: 0°C ~ 125°C Through Hole mounting type Output-Type: Adjustable Supplier device package: TO-220 Tolerance of +/- 1 % Up to 15V voltage input Number-of-Outputs: 1 Output Output voltage: 1.25 V ~ 15 V Positive Adjustable regulator topology The product has 1 of 1. Power-off control: Internally Limited Maximum operating temperature of + 125 C Minimum operating temperature: 0 C Output voltage: 1.25 V to 15 V Maximum Input Voltage: 15 V Output current: 950 mA Load regulation is 0.1 %. Reference voltage is 1.25 V . The maximum 1.2 V is 360 mV. This product's 0.035 % is 0.01 %/V. The product's 75 dB is -20 dB.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
