LD1086BV

LD1086BV Overview

Product belongs to the - series. This product is categorized as LDO Regulators Type: Low Drop Voltage Regulator Tube is the packaging method for this product Weight of 0.211644 oz Through Hole Mounting-Style TO-220-3 Operational temperature range: -40°C ~ 125°C Through Hole mounting type Output-Type: Adjustable Supplier device package: TO-220 Up to 30V voltage input Number-of-Outputs: 1 Output Output voltage: Adj to 1.25V Positive Adjustable regulator topology The product has 1 of 1. Power-off control: Internally Limited Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.8 V to 12 V 3 mA is 92 nA. Maximum Input Voltage: 30 V Output current: 1.5 A Load regulation is 0.4 %. Reference voltage is 1.25 V . The maximum 1.5 V is 360 mV. This product's 0.2 % is 0.01 %/V. The product's 88 dB is -20 dB.

LD1086BV Image

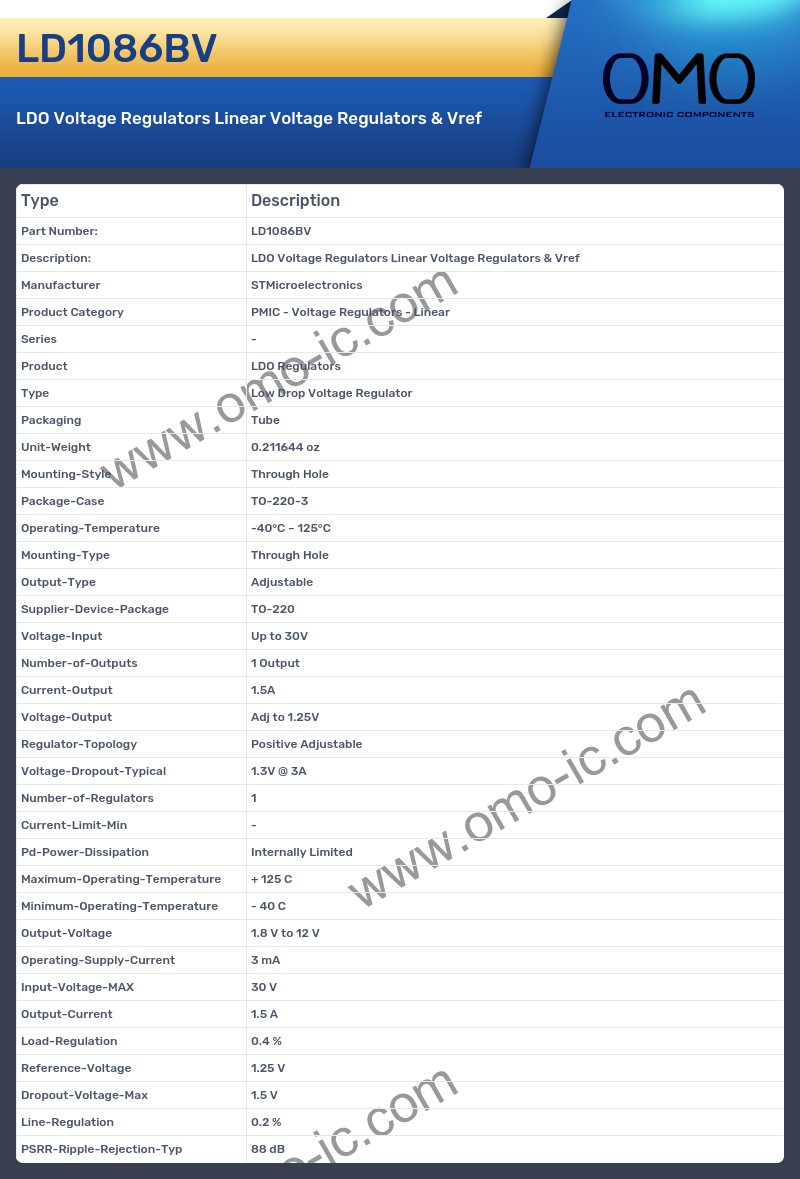

LD1086BV Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series -
• Product LDO Regulators
• Type Low Drop Voltage Regulator
• Packaging Tube
• Unit-Weight 0.211644 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Through Hole
• Output-Type Adjustable
• Supplier-Device-Package TO-220
• Voltage-Input Up to 30V
• Number-of-Outputs 1 Output
• Current-Output 1.5A
• Voltage-Output Adj to 1.25V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 1.3V @ 3A
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation Internally Limited
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.8 V to 12 V
• Operating-Supply-Current 3 mA
• Input-Voltage-MAX 30 V
• Output-Current 1.5 A
• Load-Regulation 0.4 %
• Reference-Voltage 1.25 V
• Dropout-Voltage-Max 1.5 V
• Line-Regulation 0.2 %
• PSRR-Ripple-Rejection-Typ 88 dB
