L6668

L6668 Overview

Product belongs to the L6668 series. Tube Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SO-16 N Operational temperature range: -25°C ~ 150°C (TJ) Surface Mount mounting type Supplier device package: 16-SO Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Flyback feedback Supply Voltage: 9.4 V ~ 22 V This product features 'Frequency-Switching' at 100kHz for optimal performance. The Control-Features include Frequency Control, Soft Start function. Maximum operating temperature of + 150 C Minimum operating temperature: - 25 C Output current: 800 mA Switching frequency is 105 kHz This product has a 30 ns of 16 ns. This product has a 55 ns of 16 ns. Maximum duty cycle of 75 %

L6668 Image

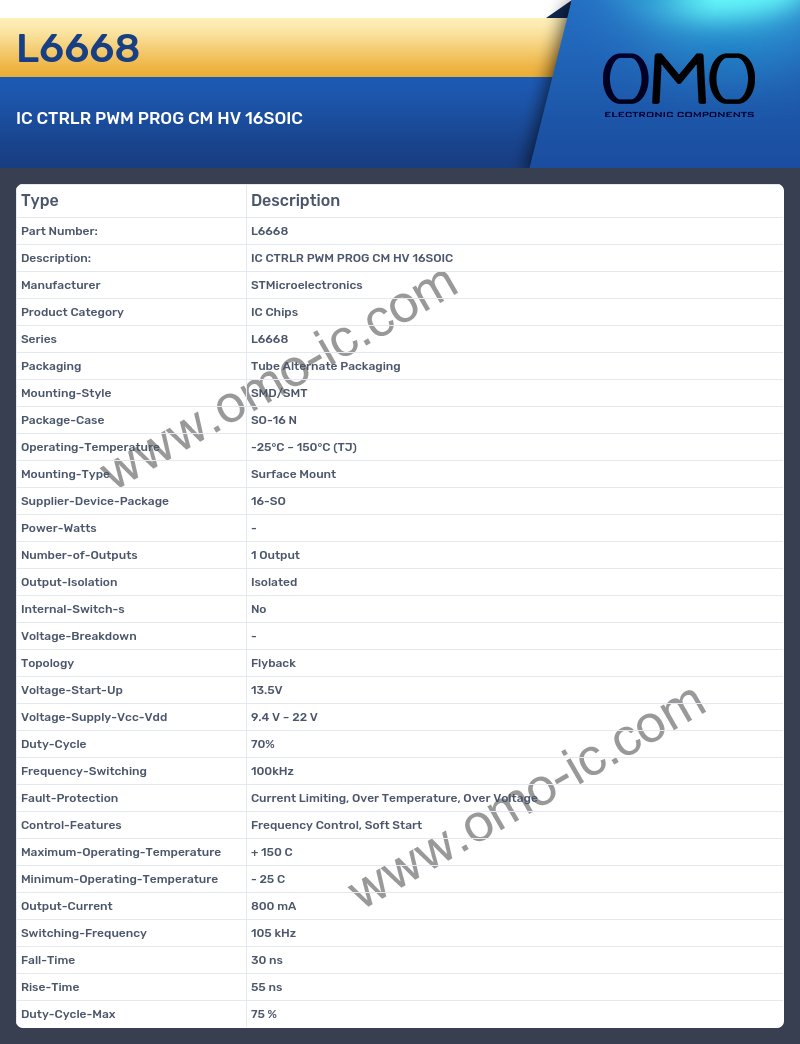

L6668 Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series L6668
• Packaging Tube Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SO-16 N
• Operating-Temperature -25°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Supplier-Device-Package 16-SO
• Power-Watts -
• Number-of-Outputs 1 Output
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Flyback
• Voltage-Start-Up 13.5V
• Voltage-Supply-Vcc-Vdd 9.4 V ~ 22 V
• Duty-Cycle 70%
• Frequency-Switching 100kHz
• Fault-Protection Current Limiting, Over Temperature, Over Voltage
• Control-Features Frequency Control, Soft Start
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 25 C
• Output-Current 800 mA
• Switching-Frequency 105 kHz
• Fall-Time 30 ns
• Rise-Time 55 ns
• Duty-Cycle-Max 75 %
