L6599AFD

L6599AFD Overview

Product belongs to the - series. This product is categorized as Resonant Controller Tube is the packaging method for this product Weight of 0.007079 oz SMD/SMT Mounting-Style SO-16 Operational temperature range: -50°C ~ 125°C Surface Mount mounting type Versatile Resonant Converter Controller applications for maximum usability Voltage Supply Range: 8.85 V ~ 16 V Supplier device package: 16-SO - voltage input This product has a 3.5mA of 200μA. Number-of-Outputs: 1 Output Topology: Half-Bridge feedback Power-off control: Yes The product's Non-Isolated is non-isolated. Maximum operating temperature of + 150 C Minimum operating temperature: - 50 C This product operates at a 8.85 V to 16 V supply voltage for reliable performance. Output voltage: 1.8 V 2 mA is 92 nA. Output current: 700 mA Switching frequency is 500 kHz This product has a 30 ns of 16 ns. This product has a 60 ns of 16 ns. Maximum duty cycle of 50 %

L6599AFD Image

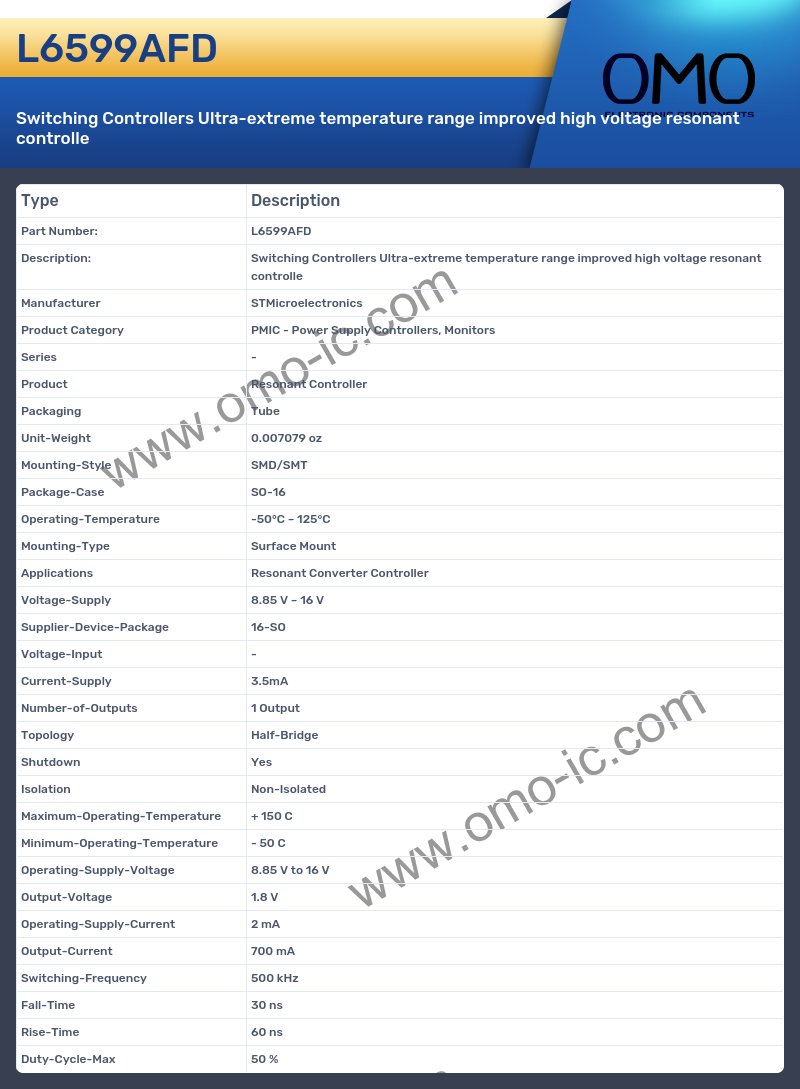

L6599AFD Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Supply Controllers, Monitors
• Series -
• Product Resonant Controller
• Packaging Tube
• Unit-Weight 0.007079 oz
• Mounting-Style SMD/SMT
• Package-Case SO-16
• Operating-Temperature -50°C ~ 125°C
• Mounting-Type Surface Mount
• Applications Resonant Converter Controller
• Voltage-Supply 8.85 V ~ 16 V
• Supplier-Device-Package 16-SO
• Voltage-Input -
• Current-Supply 3.5mA
• Number-of-Outputs 1 Output
• Topology Half-Bridge
• Shutdown Yes
• Isolation Non-Isolated
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 50 C
• Operating-Supply-Voltage 8.85 V to 16 V
• Output-Voltage 1.8 V
• Operating-Supply-Current 2 mA
• Output-Current 700 mA
• Switching-Frequency 500 kHz
• Fall-Time 30 ns
• Rise-Time 60 ns
• Duty-Cycle-Max 50 %
