L6598D Overview

Product belongs to the L6598 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.007079 oz SMD/SMT Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications SO-16 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Supplier device package: 16-SO Output-Isolation: Isolated This product has No. Topology: Half-Bridge feedback Supply Voltage: 8 V ~ 16.6 V This product features 'Frequency-Switching' at 400kHz for optimal performance. The Control-Features include EN function. This product operates at a 10 V supply voltage for reliable performance. Output voltage: 4.6 V This product is an High Volt Reson Cont. Input Voltage Range: 10 V to 16.6 V Output current: 450 mA Maximum duty cycle of 52 %

L6598D Image

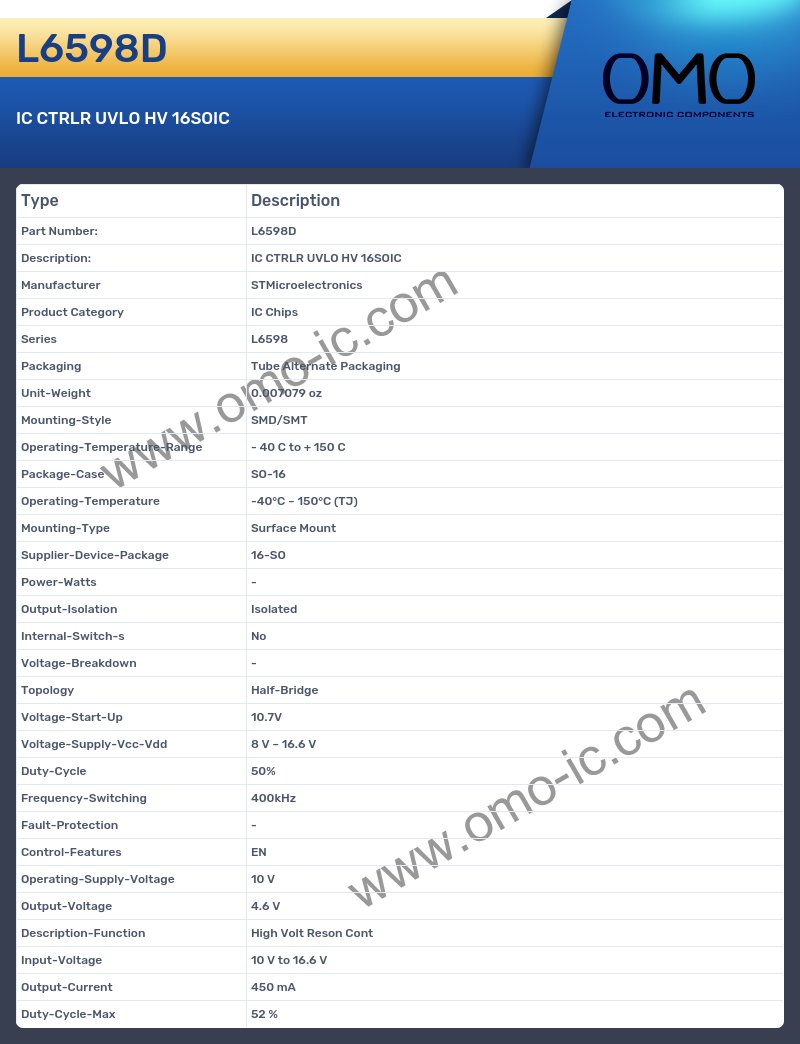

L6598D Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series L6598
• Packaging Tube Alternate Packaging
• Unit-Weight 0.007079 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case SO-16
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Supplier-Device-Package 16-SO
• Power-Watts -
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Half-Bridge
• Voltage-Start-Up 10.7V
• Voltage-Supply-Vcc-Vdd 8 V ~ 16.6 V
• Duty-Cycle 50%
• Frequency-Switching 400kHz
• Fault-Protection -
• Control-Features EN
• Operating-Supply-Voltage 10 V
• Output-Voltage 4.6 V
• Description-Function High Volt Reson Cont
• Input-Voltage 10 V to 16.6 V
• Output-Current 450 mA
• Duty-Cycle-Max 52 %
