| Mfr. #: | L6566BH |
|---|---|
| Fabricante: | STMicroelectronics |
| Descripción: | Switching Controllers Multimode Controller SMPS 800V |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | L6566BH Ficha de datos |
Product belongs to the L6566 series. Tube is the packaging method for this product Weight of 0.019312 oz SMD/SMT Mounting-Style SOIC-16 Narrow Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Supplier device package: 16-SO Output-Isolation: Isolated This product has No. Topology: Flyback feedback Supply Voltage: 8 V ~ 23 V This product features 'Frequency-Switching' at 10kHz ~ 300kHz for optimal performance. The Control-Features include Soft Start function. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 10.6 V to 23 V supply voltage for reliable performance. Output voltage: 5 V 4 mA is 92 nA. Switching frequency is 300 kHz This product has a 40 ns of 16 ns. This product has a 50 ns of 16 ns. Maximum duty cycle of 75 %
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

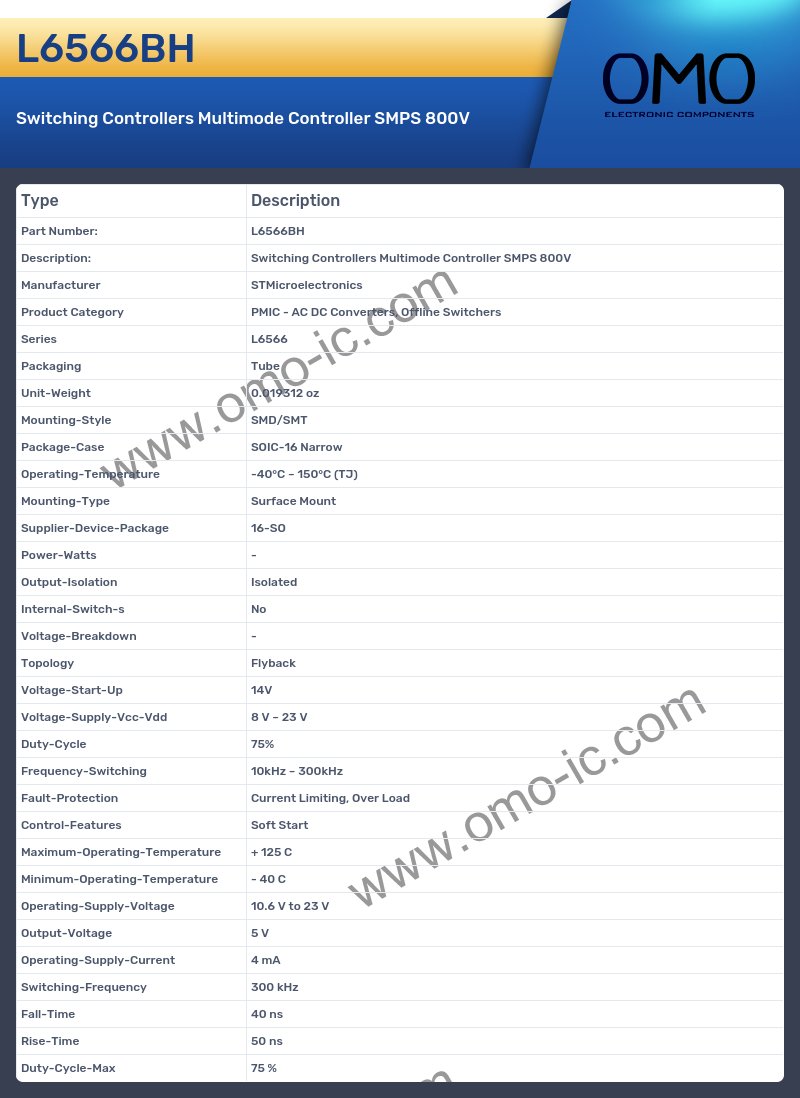

L6566BH Specifications
A: At what frequency does the Series?
Q: The product Series is L6566.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.019312 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is SOIC-16 Narrow.
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed -40°C ~ 150°C (TJ)
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 16-SO.
A: At what frequency does the Output-Isolation?
Q: The product Output-Isolation is Isolated.
A: Is the cutoff frequency of the product Internal-Switch-s?
Q: Yes, the product's Internal-Switch-s is indeed No
A: Is the cutoff frequency of the product Topology?
Q: Yes, the product's Topology is indeed Flyback
A: Is the cutoff frequency of the product Voltage-Supply-Vcc-Vdd?
Q: Yes, the product's Voltage-Supply-Vcc-Vdd is indeed 8 V ~ 23 V
A: Is the cutoff frequency of the product Frequency-Switching?
Q: Yes, the product's Frequency-Switching is indeed 10kHz ~ 300kHz
A: Is the cutoff frequency of the product Control-Features?
Q: Yes, the product's Control-Features is indeed Soft Start
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 125 C
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 40 C.
A: Is the cutoff frequency of the product Operating-Supply-Voltage?
Q: Yes, the product's Operating-Supply-Voltage is indeed 10.6 V to 23 V
A: Is the cutoff frequency of the product Output-Voltage?
Q: Yes, the product's Output-Voltage is indeed 5 V
A: What is the Operating-Supply-Current of the product?
Q: The Operating-Supply-Current of the product is 4 mA.
A: What is the Switching-Frequency of the product?
Q: The Switching-Frequency of the product is 300 kHz.
A: At what frequency does the Fall-Time?
Q: The product Fall-Time is 40 ns.
A: Is the cutoff frequency of the product Rise-Time?
Q: Yes, the product's Rise-Time is indeed 50 ns
A: At what frequency does the Duty-Cycle-Max?
Q: The product Duty-Cycle-Max is 75 %.
