L6565N

L6565N Overview

Product belongs to the L6565 series. Tube is the packaging method for this product Weight of 0.032805 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: -40°C ~ 150°C (TJ) Through Hole mounting type Supplier device package: 8-DIP Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Flyback feedback Supply Voltage: 10.3 V ~ 18 V This product features 'Frequency-Switching' at - for optimal performance. The Control-Features include - function. Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C This product operates at a 10.3 V to 18 V supply voltage for reliable performance. 3.5 mA is 92 nA. Switching frequency is 70 kHz This product has a 40 ns of 16 ns. This product has a 40 ns of 16 ns.

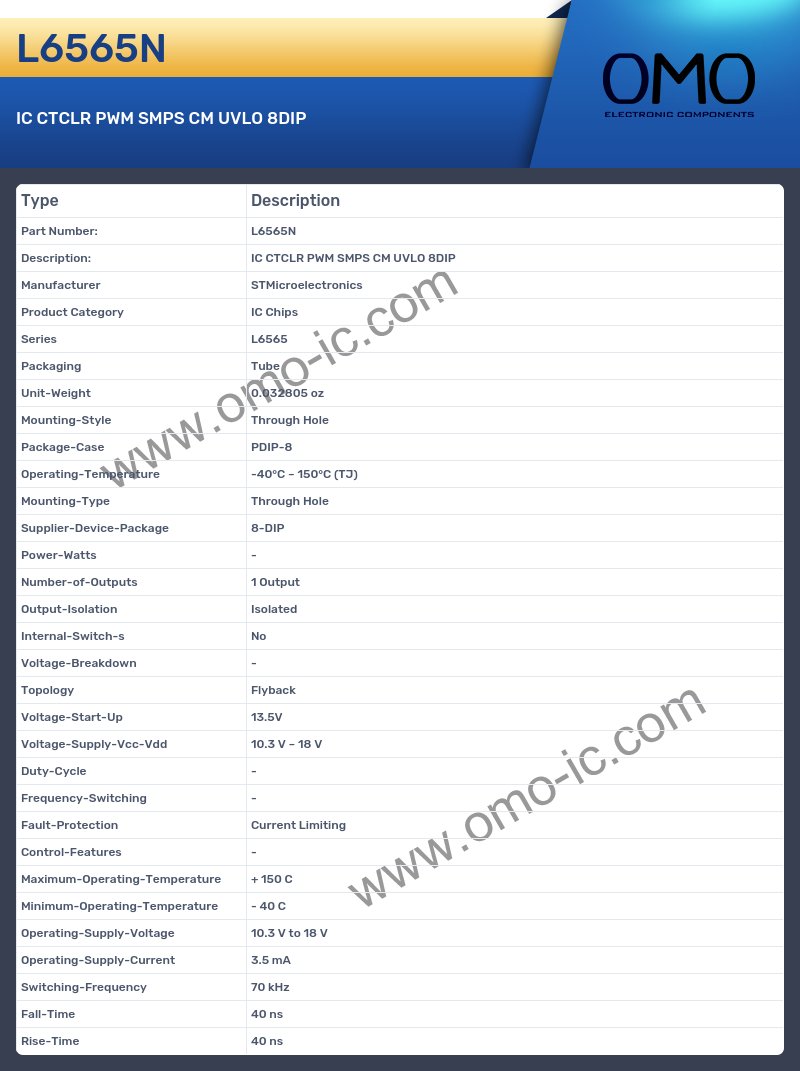

L6565N Image

L6565N Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series L6565
• Packaging Tube
• Unit-Weight 0.032805 oz
• Mounting-Style Through Hole
• Package-Case PDIP-8
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Through Hole
• Supplier-Device-Package 8-DIP
• Power-Watts -
• Number-of-Outputs 1 Output
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Flyback
• Voltage-Start-Up 13.5V
• Voltage-Supply-Vcc-Vdd 10.3 V ~ 18 V
• Duty-Cycle -
• Frequency-Switching -
• Fault-Protection Current Limiting
• Control-Features -
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 10.3 V to 18 V
• Operating-Supply-Current 3.5 mA
• Switching-Frequency 70 kHz
• Fall-Time 40 ns
• Rise-Time 40 ns
