L6474PD Overview

Product belongs to the easySPIN series. This product is categorized as Stepper Motor Controllers / Drivers Type: Microstepping Motor Driver Tube is the packaging method for this product SMD/SMT Mounting-Style PowerSO-36 DMOS is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile General Purpose applications for maximum usability Interface: SPI Voltage Supply Range: 3.3V, 5V Supplier device package: PowerSO-36 Number-of-Outputs: 1 The Half Bridge (4). Voltage-Load range is 8 V ~ 45 V. - motor type is used for high-performance and efficient operation. This product operates at a 45 V supply voltage for reliable performance. 650 uA is 92 nA. Output current: 3 A

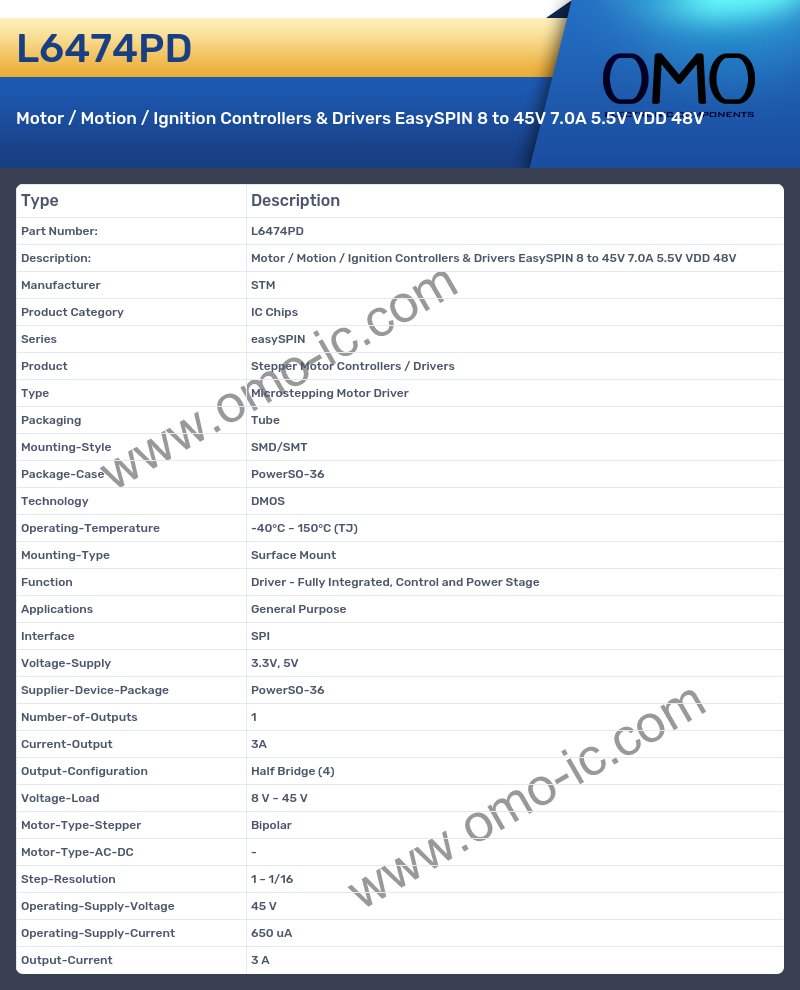

L6474PD Image

L6474PD Specifications

• Manufacturer STM
• Product Category IC Chips
• Series easySPIN
• Product Stepper Motor Controllers / Drivers
• Type Microstepping Motor Driver
• Packaging Tube
• Mounting-Style SMD/SMT
• Package-Case PowerSO-36
• Technology DMOS
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Function Driver - Fully Integrated, Control and Power Stage
• Applications General Purpose
• Interface SPI
• Voltage-Supply 3.3V, 5V
• Supplier-Device-Package PowerSO-36
• Number-of-Outputs 1
• Current-Output 3A
• Output-Configuration Half Bridge (4)
• Voltage-Load 8 V ~ 45 V
• Motor-Type-Stepper Bipolar
• Motor-Type-AC-DC -
• Step-Resolution 1 ~ 1/16
• Operating-Supply-Voltage 45 V
• Operating-Supply-Current 650 uA
• Output-Current 3 A
