ISO7340CDW

ISO7340CDW Overview

Product belongs to the ISO7340C series. Type: General Purpose Tube Alternate Packaging is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style SOIC-16 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 4 Voltage Supply Range: 3 V ~ 5.5 V Supplier device package: 16-SOIC This product's Unidirectional This product is designed with 3000Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2000/4/1 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 58ns, 58ns The minimum pulse width distortion is 4ns. Power-off control: 92 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Capacitive Coupling is the isolation type specified for this product. 9.3 mA is 92 nA. Isolation voltage of 3 kV Maximum supply voltage of 5.5 V Minimum supply voltage is 3 V 31 ns is 23 microseconds. This product features 4 Channel Forward-Channels for simple connectivity.

ISO7340CDW Image

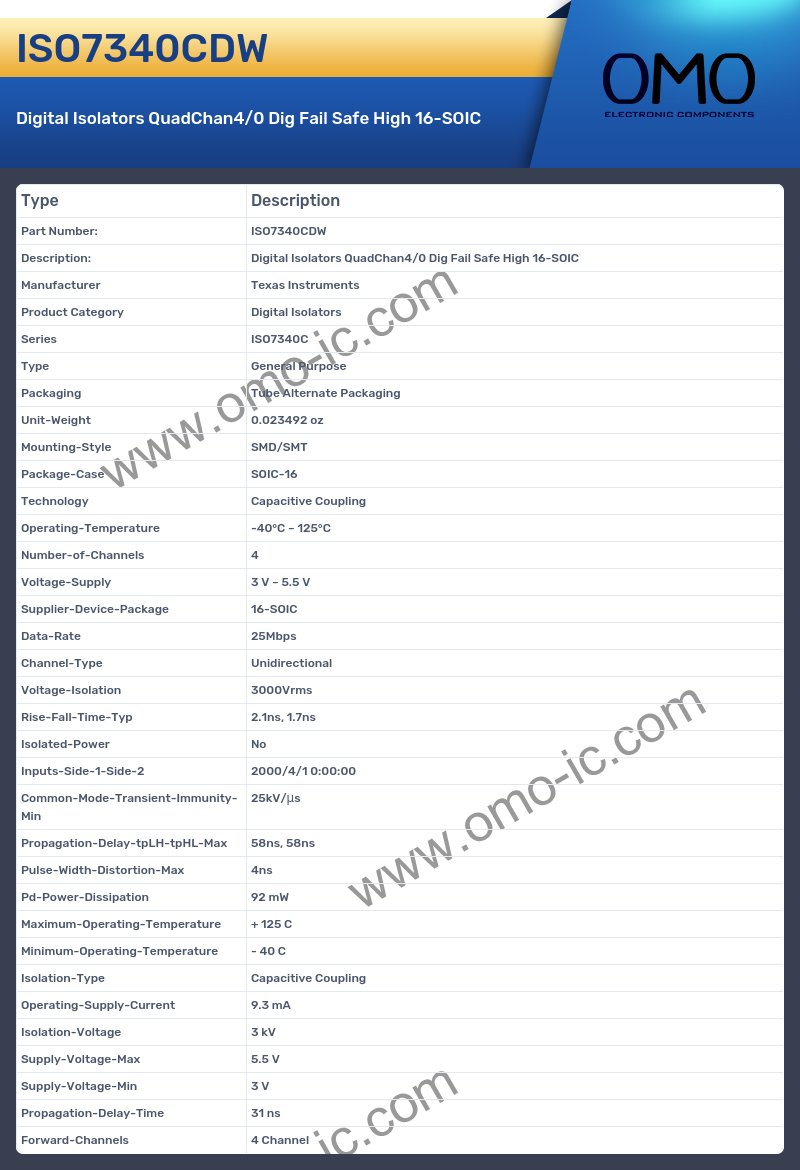

ISO7340CDW Specifications

• Manufacturer Texas Instruments
• Product Category Digital Isolators
• Series ISO7340C
• Type General Purpose
• Packaging Tube Alternate Packaging
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Number-of-Channels 4
• Voltage-Supply 3 V ~ 5.5 V
• Supplier-Device-Package 16-SOIC
• Data-Rate 25Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 3000Vrms
• Rise-Fall-Time-Typ 2.1ns, 1.7ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2000/4/1 0:00:00
• Common-Mode-Transient-Immunity-Min 25kV/μs
• Propagation-Delay-tpLH-tpHL-Max 58ns, 58ns
• Pulse-Width-Distortion-Max 4ns
• Pd-Power-Dissipation 92 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Isolation-Type Capacitive Coupling
• Operating-Supply-Current 9.3 mA
• Isolation-Voltage 3 kV
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 3 V
• Propagation-Delay-Time 31 ns
• Forward-Channels 4 Channel
