ISO7241AMDWREP Overview

Product belongs to the ISO7241A-EP series. This product is categorized as Digital Isolators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.019312 oz SOIC-16 Wide Capacitive Coupling is the technology used. Operational temperature range: -55°C ~ 125°C Number of channels: 4 Voltage Supply Range: 3.15 V ~ 5.5 V Supplier device package: 16-SOIC This product's Unidirectional This product is designed with 4000Vpk voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2016/3/1 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 95ns, 95ns The minimum pulse width distortion is 10ns. Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Capacitive Coupling is the isolation type specified for this product. This product is also known as V62/10606-01XE and can be referred to by either part number. Maximum supply voltage of 5 V Minimum supply voltage is 3.3 V 71 ns is 23 microseconds. This product features 3 Channel Forward-Channels for simple connectivity. The product has 1 Channel for reverse communication.

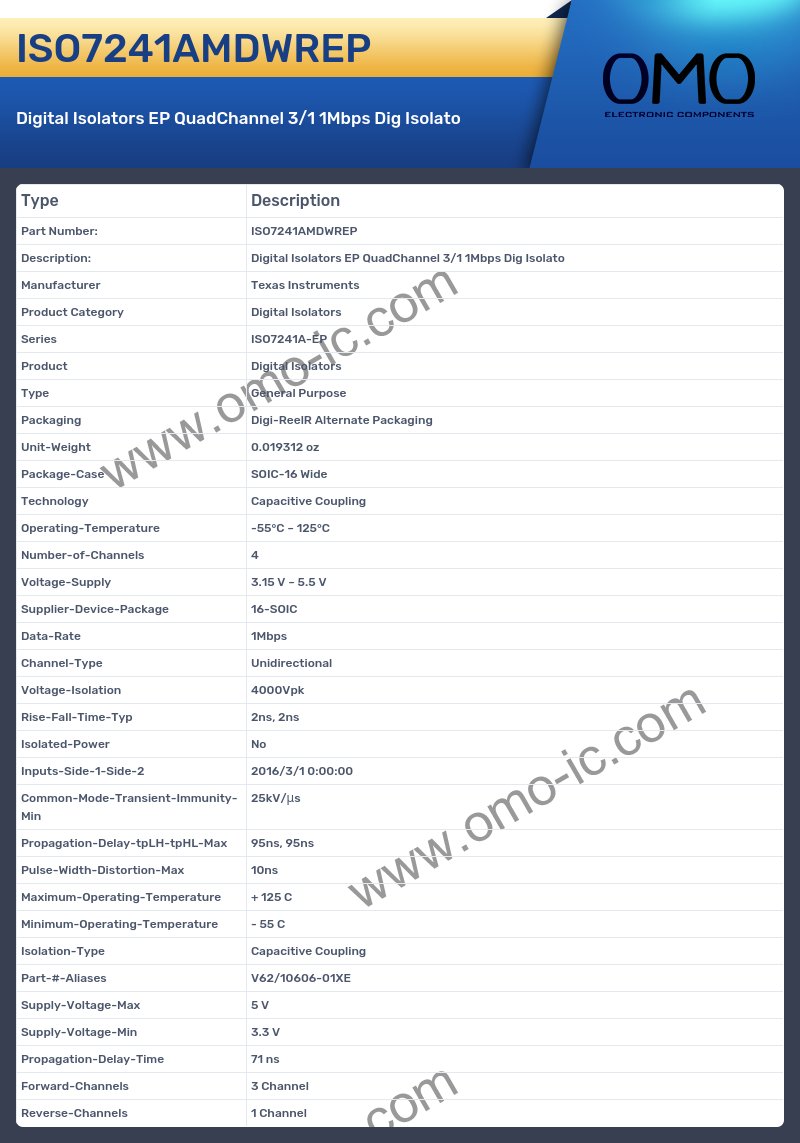

ISO7241AMDWREP Image

ISO7241AMDWREP Specifications

• Manufacturer Texas Instruments
• Product Category Digital Isolators
• Series ISO7241A-EP
• Product Digital Isolators
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.019312 oz
• Package-Case SOIC-16 Wide
• Technology Capacitive Coupling
• Operating-Temperature -55°C ~ 125°C
• Number-of-Channels 4
• Voltage-Supply 3.15 V ~ 5.5 V
• Supplier-Device-Package 16-SOIC
• Data-Rate 1Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 4000Vpk
• Rise-Fall-Time-Typ 2ns, 2ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2016/3/1 0:00:00
• Common-Mode-Transient-Immunity-Min 25kV/μs
• Propagation-Delay-tpLH-tpHL-Max 95ns, 95ns
• Pulse-Width-Distortion-Max 10ns
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Isolation-Type Capacitive Coupling
• Part-#-Aliases V62/10606-01XE
• Supply-Voltage-Max 5 V
• Supply-Voltage-Min 3.3 V
• Propagation-Delay-Time 71 ns
• Forward-Channels 3 Channel
• Reverse-Channels 1 Channel
