ISO7221CD Overview

Product belongs to the ISO7221C series. This product is categorized as Digital Isolators Type: General Purpose Tube Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 2 Voltage Supply Range: 2.8 V ~ 5.5 V Supplier device package: 8-SOIC This product's Unidirectional This product is designed with 2500Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2016/1/1 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 42ns, 42ns The minimum pulse width distortion is 2ns. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Polarity: Unidirectional Capacitive Coupling is the isolation type specified for this product. Isolation voltage of 2.5 kVrms Maximum supply voltage of 5 V Minimum supply voltage is 2.8 V 42 ns is 23 microseconds. This product features 1 Channel Forward-Channels for simple connectivity. The product has 1 Channel for reverse communication.

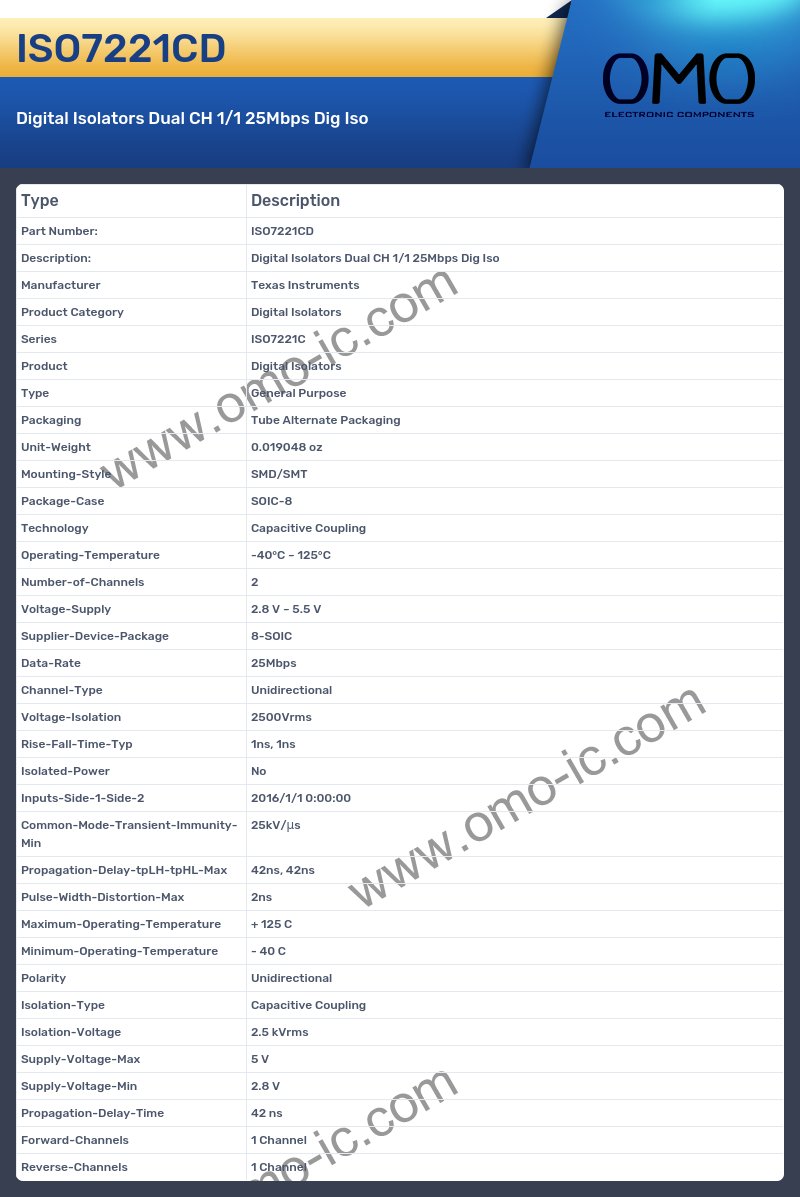

ISO7221CD Image

ISO7221CD Specifications

• Manufacturer Texas Instruments
• Product Category Digital Isolators
• Series ISO7221C
• Product Digital Isolators
• Type General Purpose
• Packaging Tube Alternate Packaging
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Number-of-Channels 2
• Voltage-Supply 2.8 V ~ 5.5 V
• Supplier-Device-Package 8-SOIC
• Data-Rate 25Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 2500Vrms
• Rise-Fall-Time-Typ 1ns, 1ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2016/1/1 0:00:00
• Common-Mode-Transient-Immunity-Min 25kV/μs
• Propagation-Delay-tpLH-tpHL-Max 42ns, 42ns
• Pulse-Width-Distortion-Max 2ns
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Polarity Unidirectional
• Isolation-Type Capacitive Coupling
• Isolation-Voltage 2.5 kVrms
• Supply-Voltage-Max 5 V
• Supply-Voltage-Min 2.8 V
• Propagation-Delay-Time 42 ns
• Forward-Channels 1 Channel
• Reverse-Channels 1 Channel
