ISO721DUB

ISO721DUB Overview

Product belongs to the ISO721 series. This product is categorized as Digital Isolators Type: General Purpose Tube Alternate Packaging is the packaging method for this product Weight of 0.030018 oz SMD/SMT Mounting-Style SOP-8 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Number of channels: 1 Voltage Supply Range: 3 V ~ 5.5 V Supplier device package: 8-SOP This product's Unidirectional This product is designed with 2500Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2000/1/1 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 24ns, 24ns The minimum pulse width distortion is 2ns. Power-off control: 159 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Capacitive Coupling is the isolation type specified for this product. 10 mA is 92 nA. Isolation voltage of 3000 Vrms Maximum supply voltage of 5.5 V Minimum supply voltage is 3.3 V 34 ns is 23 microseconds. This product features 1 Channel Forward-Channels for simple connectivity. Rise time max: 2 ns (Typ) The product has 0 Channel for reverse communication.

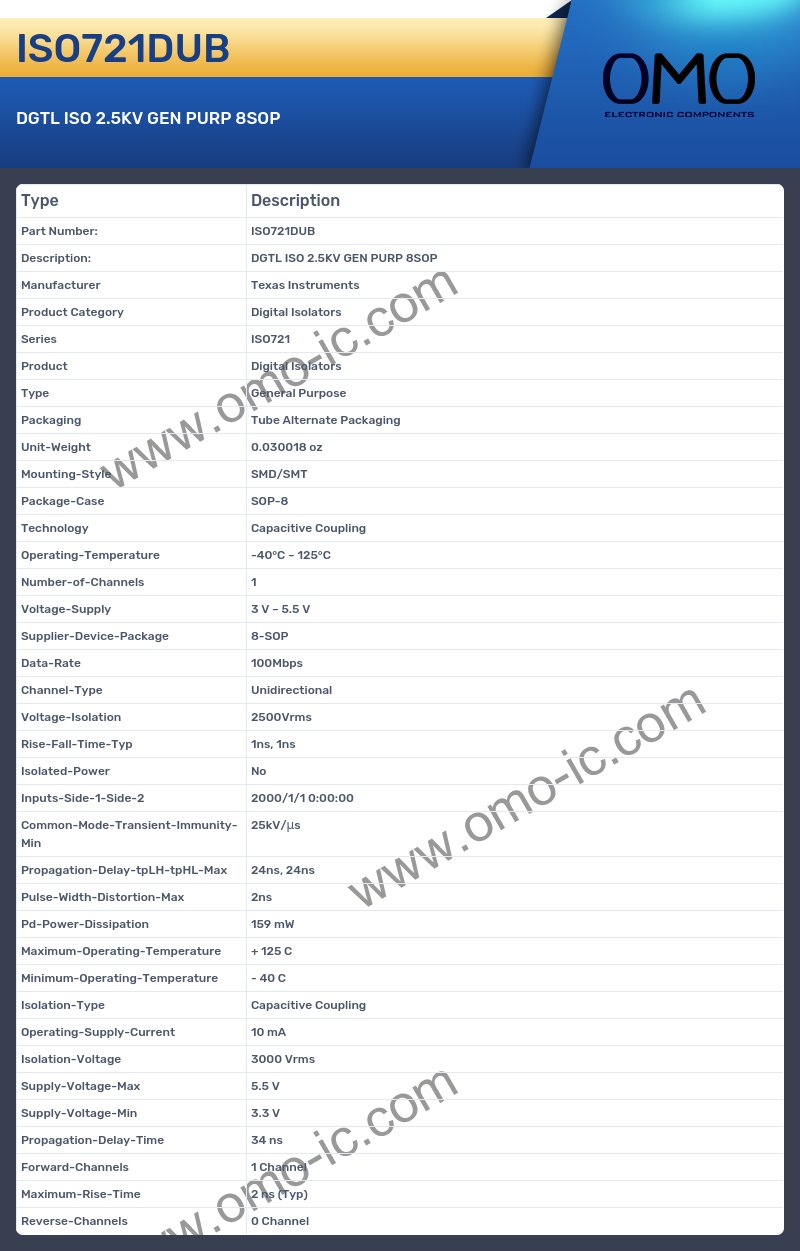

ISO721DUB Image

ISO721DUB Specifications

• Manufacturer Texas Instruments
• Product Category Digital Isolators
• Series ISO721
• Product Digital Isolators
• Type General Purpose
• Packaging Tube Alternate Packaging
• Unit-Weight 0.030018 oz
• Mounting-Style SMD/SMT
• Package-Case SOP-8
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Number-of-Channels 1
• Voltage-Supply 3 V ~ 5.5 V
• Supplier-Device-Package 8-SOP
• Data-Rate 100Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 2500Vrms
• Rise-Fall-Time-Typ 1ns, 1ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2000/1/1 0:00:00
• Common-Mode-Transient-Immunity-Min 25kV/μs
• Propagation-Delay-tpLH-tpHL-Max 24ns, 24ns
• Pulse-Width-Distortion-Max 2ns
• Pd-Power-Dissipation 159 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Isolation-Type Capacitive Coupling
• Operating-Supply-Current 10 mA
• Isolation-Voltage 3000 Vrms
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 3.3 V
• Propagation-Delay-Time 34 ns
• Forward-Channels 1 Channel
• Maximum-Rise-Time 2 ns (Typ)
• Reverse-Channels 0 Channel
